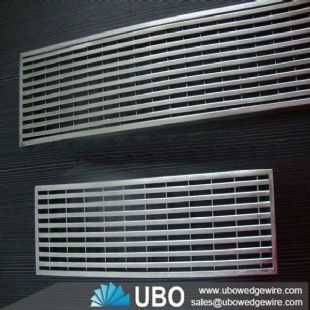

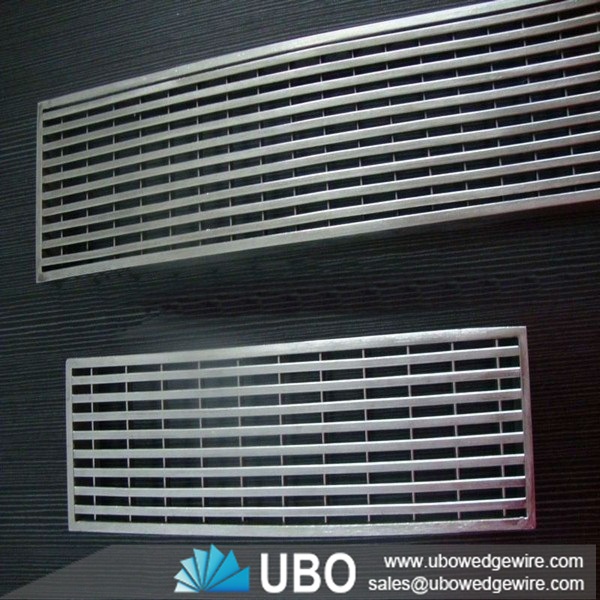

wedge wire screen grate

More Views

wedge wire screen gratewedge wire screen gratewedge wire screen grate

wedge wire screen grate

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

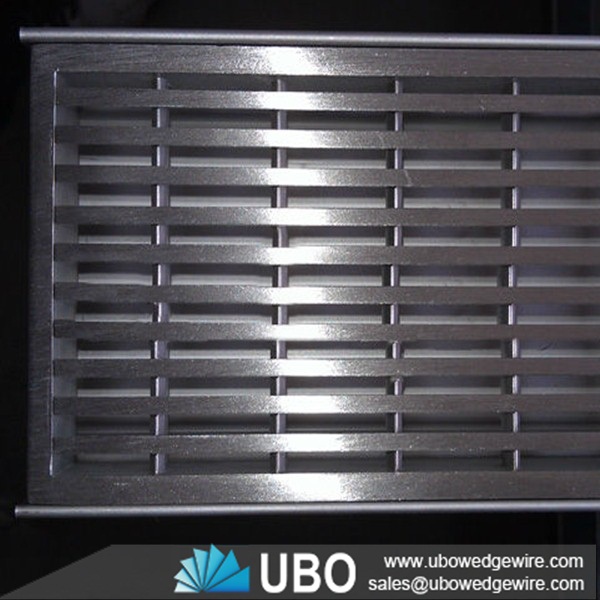

Detailed description of the wedge wire screen grate

It consists of surface profiles, usually V shaped , that are resistance welded onto the support profiles. The distance between the surface profiles is controlled very accurately.

UBO manufacture the wedge wire screen grate to suit the clients requirement , as per their drawing and dimensional details. In this type of Gratings the Load Bearing members are Flat Bars . Transverse Bars are usually round bars, flat bars, square rods, etc., then manually welded together.

Application of wedge wire screen grate

Wedge wire screen grate have a wide range of applications, the main applications are sieving and filtration. It can also be used as decorative materials in some buildings. The detailed application fields are as follows:
Vibrating screen decking.
Surface water intake screens.
Fish diversion screen panels.
Hatchery screens.
Grain drying screen.
Malt kin or germination floors.
Decorative materials.

Advantages of wedge wire screen grate

Wedge wire screens has the advantages of Non- clogging, High Precision slot Size, in surface filtration application easy cleaning by mechanical scrapping, Low pressure drop and strong construction.

Features of wedge wire screen grate

1.Higher % age of Open Area.
2.Betters Strength.
3.Longer Service Life & better wear resistance.
4.Easy to Install & replace.
5. Flexibility in design.

<a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> grate


The specifications of the wedge wire screen grate:

1.Material: Stainless steel 304/316, Ni%>8%
2.Grating surface: Brushed, Mirror, Color plating with protect film
3.Grating type: more than 30 fashion grate designs / customized acceptable
4.Body: Side outlet, bottom outlet for choice
5.Adjusting feet for easy installation (optional), necessary accessories.
6.Packing: single carton for each set.
7.Quality:ISO 9001, CE certified
8.Flow capacity 30L/Min, EN-1253 standard.

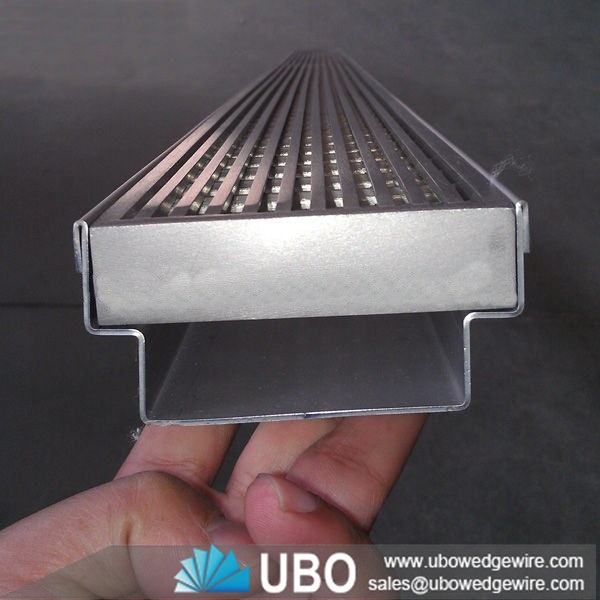

9.Linear Shower Drain Cover, apply to shower room, kitchen

Wedge Wire Grates

Width(mm)
Height(mm)
Length(mm)
Code


50


20
800
W502008
1000
W502010
1200
W502012
1500
W502015
2400
W502124


60


20
800
W602008
1000
W602010
1200
W602012
1500
W602015
2400
W602014


70


20
800
W702008
1000
W702010
1200
W702012
1500
W702015
2400
W702024


85


20
1000
W852010
1200
W852012
1500
W852015
2400
W852024


95


20
1000
W952010
1200
W952012
1500
W952015
2400
W952024


100


25
1000
W1002510
1200
W1002510
1500
W1002515
2400
W1002524



110



30
1000
W1103010
1200
W1103012
1500
W1103015
2400
W1103024

The Packaging and Transportation of the wedge wire screen grate:

transportation
