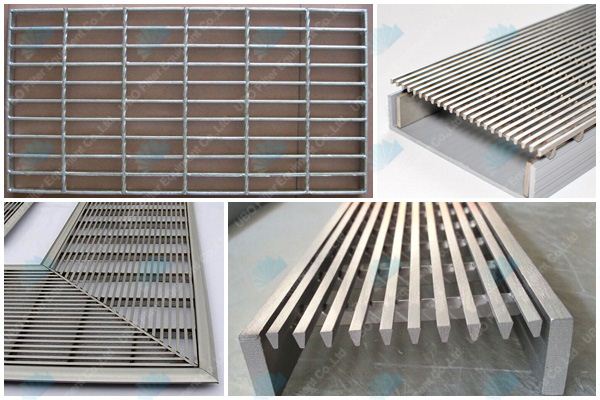

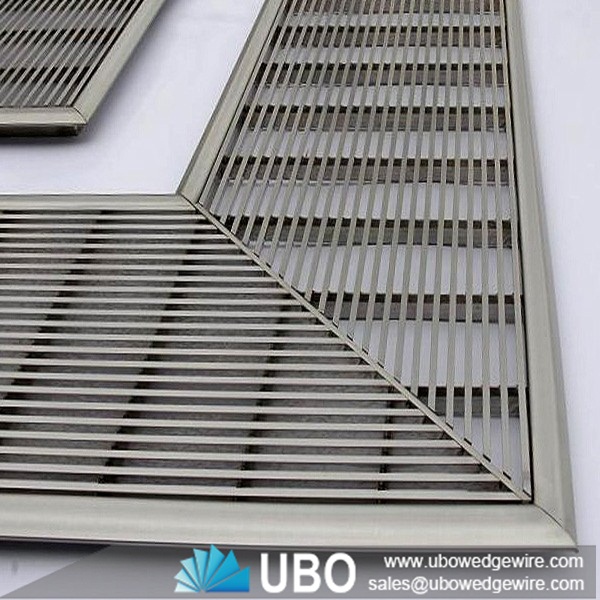

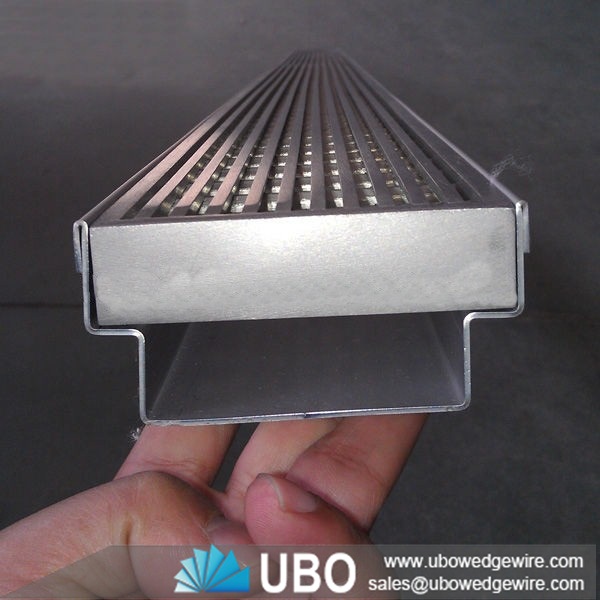

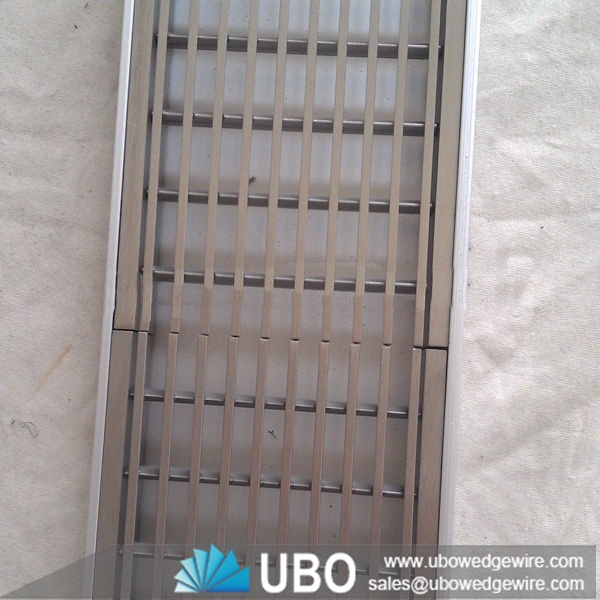

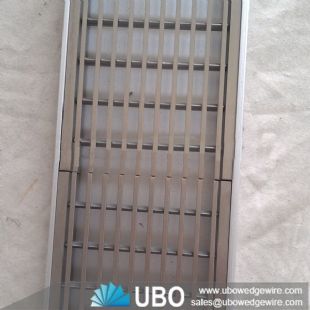

wedge wire floor panel

More Views

wedge wire floor panelwedge wire floor panelwedge wire floor panel

wedge wire floor panel

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the wedge wire floor panel

Wedge wire floor panel or surescreen is unique in nature as by design it reduces the possibility of clogging or blocking due to the inherent characteristics of the wedge shape of the wire and the surface area differential between the upper and lower sides of the wire.

Features of wedge wire floor panel

1. High flow capability, meet European standard En1253
2. Choice of grate covers, welded wedge wire grate or punched hole grate
3. A high weight capacity with a high passing ability and warping preventing
4. Streamlined appearance, unique, a cheerful new look
5.Compatible range of indoor drainage with a coordinated design
6. Easy to clean, the water along the channel bottom to outlet
7.Streamlined shiny metal appearance, give you an eclectic new look

Application of wedge wire floor panel

Trench drain system is designed for a variety of applications, both indoor and outdoors, commercial, industrial and hospital,the drain channels are easy to install, durable, resistant to many chemicals and solution for freeze, thaw applications, the flow rates equal to or greater than most larger poured-in-place trench drain grates.



wedge wire floor panel

The specifications of the wedge wire floor panel:

wedge wire floor panel



Material low Carbon Galvanized (LCG), Stainless Steel(SS) and Galvanized Steel.
Slot (mm) 0.1、0.25、0.50、0.75、1.00、1.50、2.00、3.00 also achieved upon customer request.
Profile Wire  #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
Support Rod 1.V shaped. #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
Steel Flat Steel Flat: 1.5*20mm, 2.0*25mm, 2.5*30mm etc.
Frame Iron Frame, Steel Frame, or Nothing.

The Packaging and Transportation of the wedge wire floor panel:

transportation
