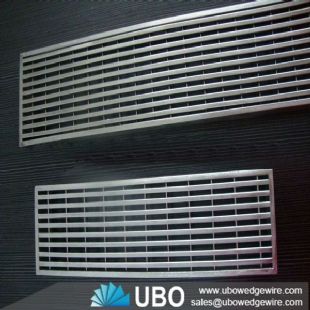

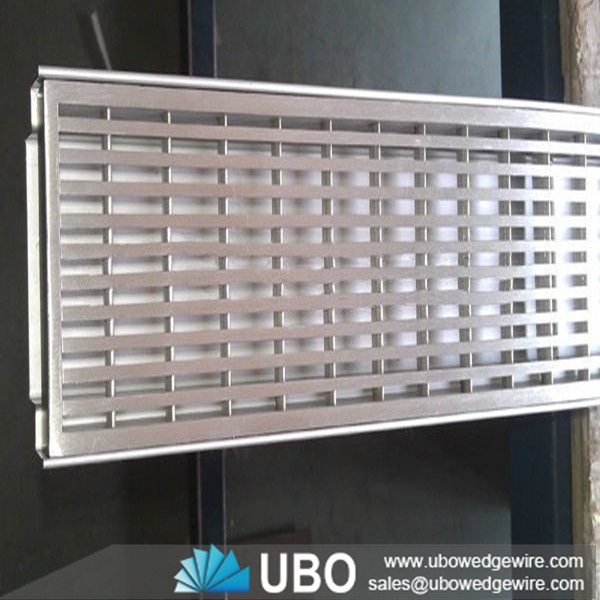

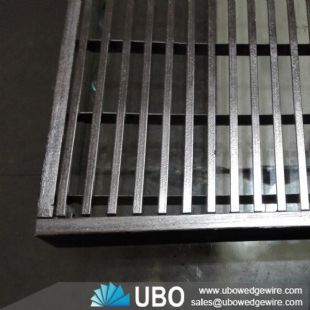

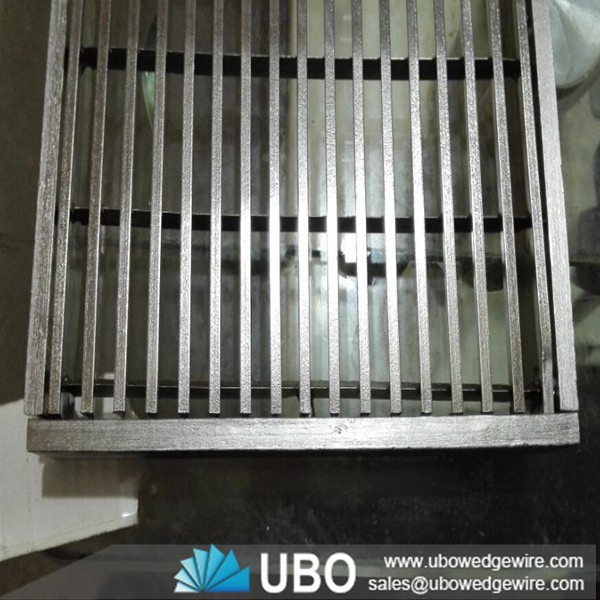

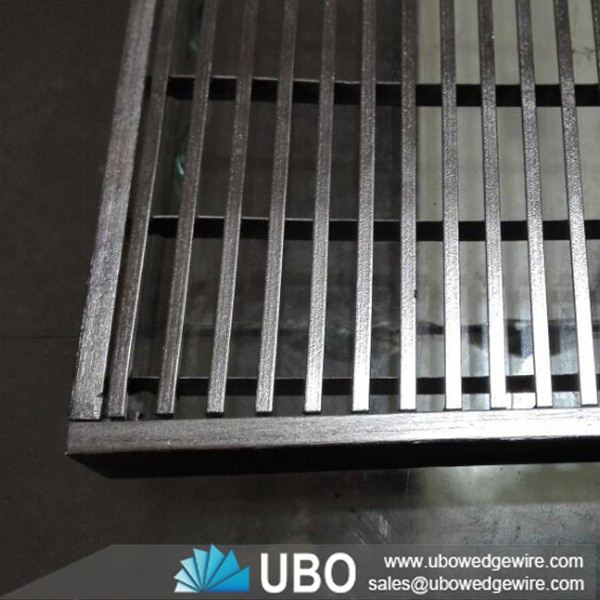

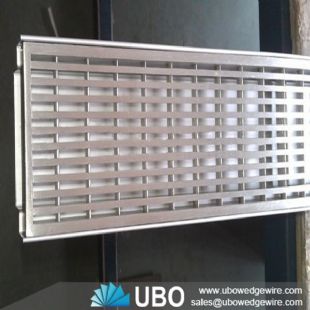

Water slot wedge wire screen panel

More Views

Water slot wedge wire screen panelWater slot wedge wire screen panelWater slot wedge wire screen panel

Water slot wedge wire screen panel

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Water slot wedge wire screen panel

Water slot wedge wire screen panels are made from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.

Advantage of Water slot wedge wire screen panel

1. Non-clogging construction: The V-shape section plane of wedge wire screens (Johnson type screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.
2. Large Filtering Area: The consecutive slot of wedge wire screens (Johnson type screens) have wider open area,
and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better,
which can increase the water yield and prolong service time of the well.
3.Long service life Wire and support rods are all-welded, which makes wedge wire screens (Johnson types screens) more robust and longer life.
4.Excellent construction strength: The longitudinal support rods and the continuous slot make the wedge wire screens(Johnson type screens) have more excellent pressure-resistant performance.
5.Specifications and end connections of wedge wire screens(Johnson screens) can me fabricated according to customers’ requirements.

Usages of Water slot wedge wire screen panel

1.) Widely used in vairous kinds of medium filtering
2.) As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3.) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4.) The organic solution recycling filter

Characteristic of Water slot wedge wire screen panel

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles.

Water slot <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> panel

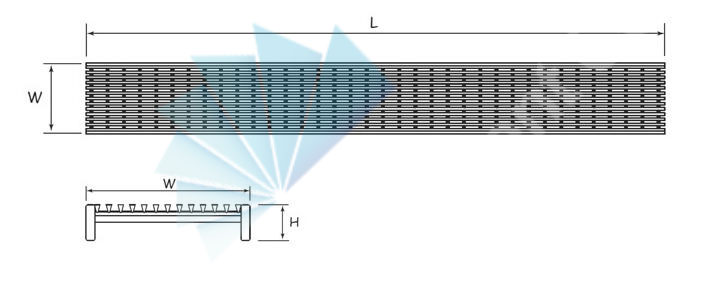

The specifications of the Water slot wedge wire screen panel:

Water slot wedge wire screen panel

Material

AISI304/316/316L,Galvanized low carton

Wedge Wire(mm)

Width :1.50 1.80 2.30 3.00 3.30 3.70

Height :2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support rod (mm)

Width :2.30 3.00 3.30 3.70



Height :2.70 3.60 4.70 5.60 6.30



Round : 2.50mm --6.00mm

Slot /opening size

0.10--6.00mm,also can be customized as your request.

Length /Width

Can be customized ad your request

Width

25mm--1200mm



Water slot <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> panel





The Packaging and Transportation of the Water slot wedge wire screen panel:
