SS316 wedge wire filter screen pipe cylinder
Category: | Wedge Wire Pipe&Cylinder |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen cylinder |
Application: | water-treatment, water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

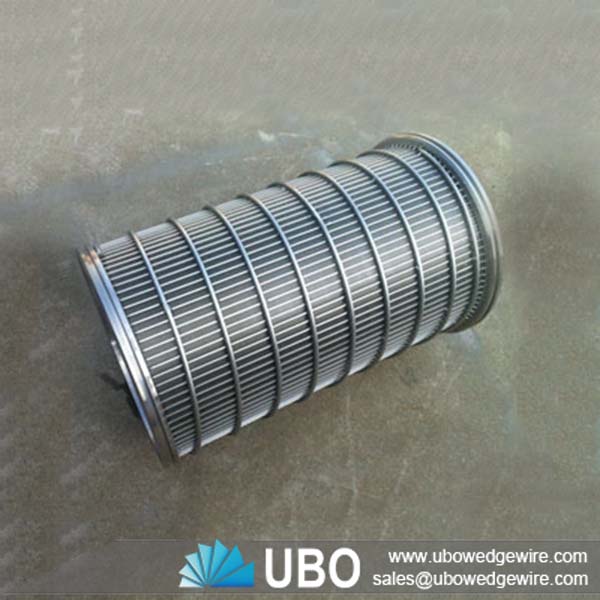

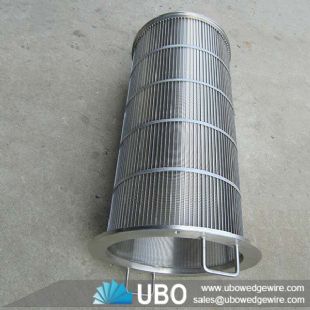

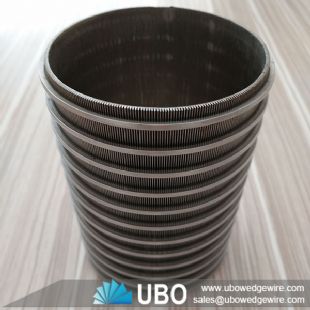

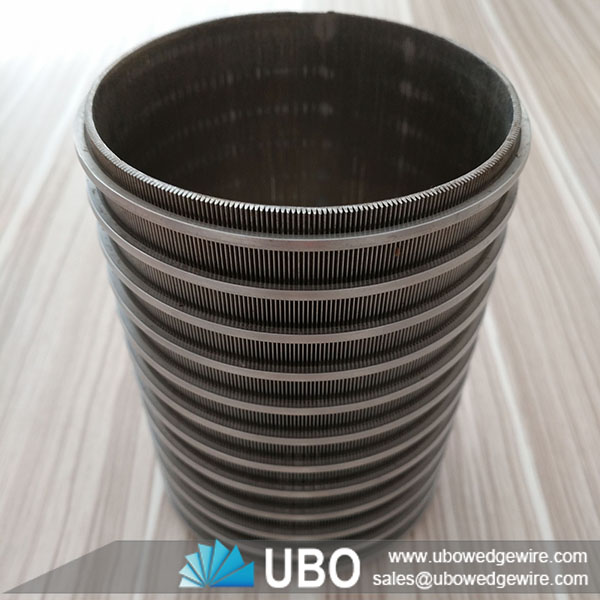

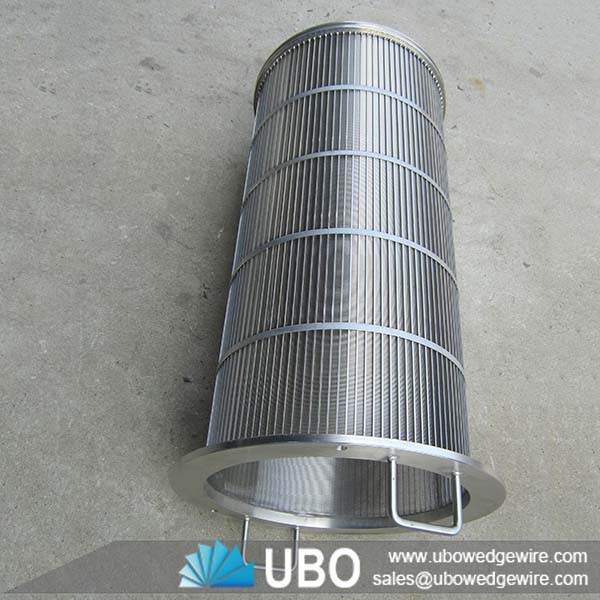

Details of SS316 wedge wire filter screen pipe cylinder
SS 316 wedge wire filter screen pipe cylinder(V-shaped wire). The Industrial wedge wire wrapped screen have a robust structure and large open area, as well as accurate slot dimension. At the same time, wedge wire screens pipe has the advantages of high-temperature resistance, corrosion resistance, high-pressure resistance, and good filtration performance.
Application of SS 316 Wedge Wire Filter Screen Pipe Cylinder
In the water treatment industry, it is commonly used as a filter element in water treatment systems, where it effectively removes impurities and contaminants from the water. It is also used in desalination plants to filter seawater and produce fresh water.
In the oil and gas industry, the SS 316 Wedge Wire Filter Screen Pipe Cylinder is used as a sand control screen in oil wells. It prevents sand and other particles from entering the wellbore, which can cause damage to the equipment and reduce production efficiency.
In the food and beverage industry, the screen is used as a filter element in the production of beverages, such as beer and wine. It effectively removes impurities and ensures the quality and purity of the final product.
In the chemical industry, the SS 316 Wedge Wire Filter Screen Pipe Cylinder is used as a filter element in various chemical processes, where it effectively removes impurities and ensures the quality of the final product.
Features of SS 316 Wedge Wire Filter Screen Pipe Cylinder
The SS 316 wedge wire filter screen pipe cylinder is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Specifications of SS316 wedge wire filter screen pipe cylinder:
SS Wedge Wire Screen Cylinders Basket |
|
Material: |
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.) |
Wedge Wire (mm): |
Width : 1.50 1.80 2.30 3.00 3.30 3.70 |
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
|
Support Rod (mm): |
Width : 2.30 3.00 3.30 3.70 |
Height : 2.70 3.60 4.70 5.60 6.30 |
|
Round : 2.50mm -- 6.0mm |
|
Diameter ranging |
from 1 inch -----45 inch. |
Length: |
lengths up to 6 meters. |
Slot size: |
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request. |
Flange:according to your request |
