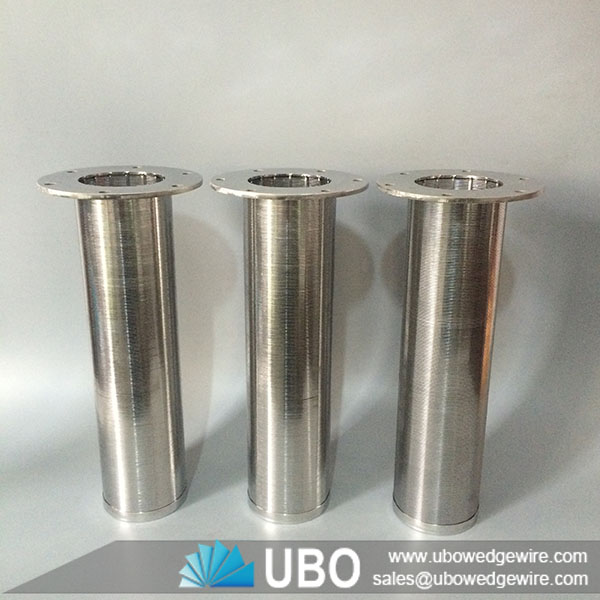

Wedge wrapped wire resin trap stainless steel screen pipe with flange

More Views

Wedge wrapped wire resin trap stainless steel screen pipe with flangeWedge wrapped wire resin trap stainless steel screen pipe with flangeWedge wrapped wire resin trap stainless steel screen pipe with flange

Wedge wrapped wire resin trap stainless steel screen pipe with flange

Category:Resin Traps
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:resin trap
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge wrapped wire resin trap stainless steel screen pipe with flange

Wedge wrapped wire resin trap stainless steel screen pipe with flanges are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly. UBO offers a complete range of resin trap styles to suit virtually any application. All are available in a full range of construction materials with a variety of connecting flanges and housings. In vessels using hydrochloric acid for regeneration, the resin trap must be of hastelloy construction.

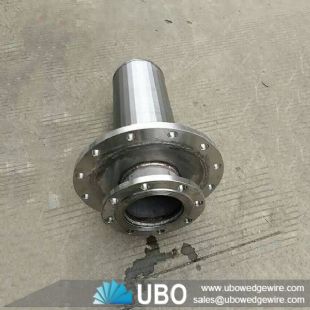

Wedge wrapped wire resin trap stainless steel screen pipe with flange

Wedge wrapped wire resin trap stainless steel screen pipe with flange

Advantage of Wedge wrapped wire resin trap stainless steel screen pipe with flange

1. A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone
2. Uninterrupted flow.
3. A uniform and efficient well development due to the continuous slot opening.
4. Good strength, no further support structure needed.

Application of Wedge wrapped wire resin trap stainless steel screen pipe with flange

Resin Trap Screen Predominantly used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

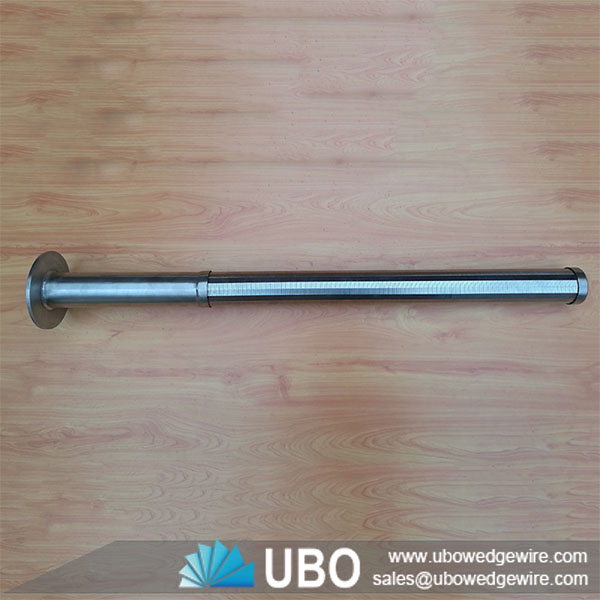

Wedge wrapped wire resin trap stainless steel screen pipe with flange

The specifications of the Wedge wrapped wire resin trap stainless steel screen pipe with flange:

Wedge wrapped wire resin trap stainless steel screen pipe with flange

Type
Slots mm
ΦA
Flange DN
L1mm
AM1
0.05, 0.1, 0.2  0.3, 0.5, 1.0
45,57,76,89,108,
133, 159, 219
40,50,65,80,
100,125,150,
200
442,496,547,
600,654,705,
758,812,863,
916,970,1021,
1074,1128,1179,
1232, 1286

The Packaging and Transportation of the Wedge wrapped wire resin trap stainless steel screen pipe with flange:

Wedge wrapped wire resin trap stainless steel screen pipe with flange
