multiple tiers of wedge wire screen laterals

More Views

multiple tiers of wedge wire screen lateralsmultiple tiers of wedge wire screen lateralsmultiple tiers of wedge wire screen laterals

multiple tiers of wedge wire screen laterals

Category:Profile screen laterals
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Hub Laterals
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the multiple tiers of wedge wire screen laterals

     Wedge wire lateral assemblies is widely used in the under draining applications with the features of effective filtering and screening performance. Wedge wire lateral assemblies are a typical screen type used in the under draining.

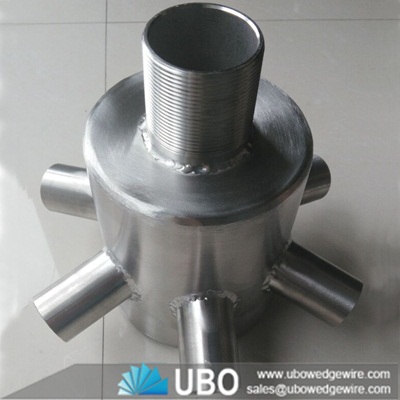

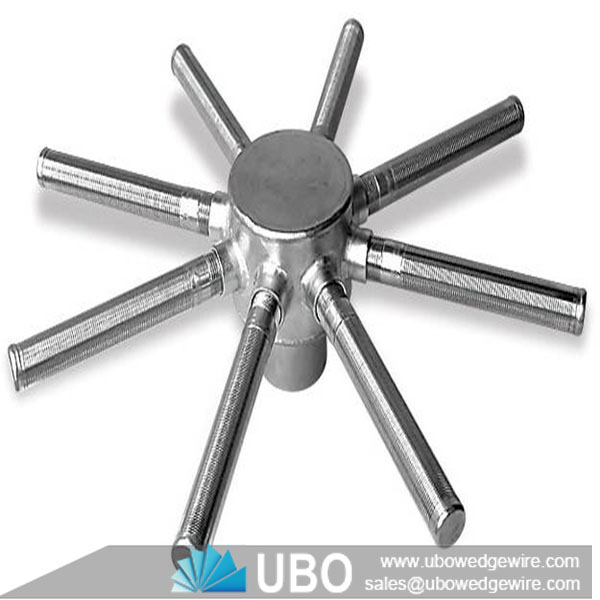

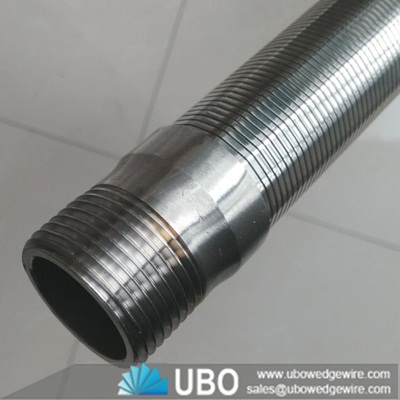

     Wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.

Application for multiple tiers of wedge wire screen laterals:

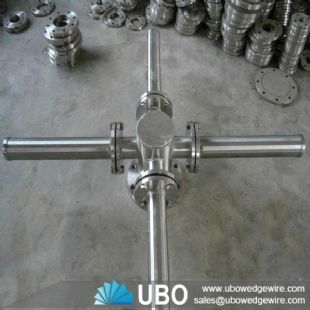

wedge wire type hub and header lateral consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Features for multiple tiers of wedge wire screen laterals:

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.

traditional laterals for multiple tiers of wedge wire screen laterals:

With the advantage of the wrap wire screens pipe,large flow area, uniform water distribution, high mechanical strength,temperature resistance, pressure resistance, aging resistance,corrosion resistance have been greatly improved. Even if the branch pipe bending occurs, the resin still can’t flow out.Stainless steel wire slot size can be designed according to the resin size.

multiple tiers of <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> laterals

The specifications of the multiple tiers of wedge wire screen laterals:

multiple tiers of <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> laterals



nominal diameter

Branch diameter

Branch Qty

The specification of the nominal flange

1500

45-76

4-12

DN100

2000

45-76

4-12

DN125

2500

57-89

4-12

DN150

3000

57-108

4-12

DN200

3200

57-108

4-12

DN200

The above specifacation are our nomal products, usually, we design according to client's request.

The Packaging and Transportation of the multiple tiers of wedge wire screen laterals:

multiple tiers of <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> laterals
