wedge wire screen,wedge wire screens,wedge wire screen manufacturers

centrifuge screen basket

More Views

centrifuge screen basket

Category:Wedge Wire Screen Basket
Material:stainless steel
Properties:wegde wire screen
Application:widely used in mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt indu

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

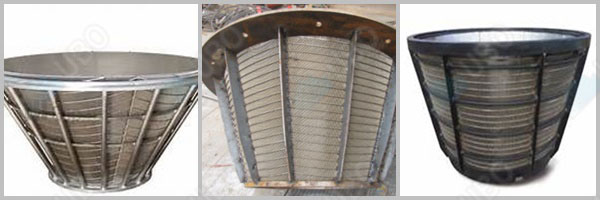

Detailed description of the centrifuge screen basket

The main screen by the flanges, strengthen, ribs, strengthen the ring,stainless steel cone nets tube composition, including stainless steel cone tube by several piece of fan network screen a compound (when compound in special on die, die independent design is outsourced processing), the screen is made of stainless steel wire rolling into special shape article screen and support by special equipment welding forming article, article screening along the screen basket cone bus arrangement. In order to reduce the sieve seam congestion, made on the small screen seam under big. Sieve seam specifications for 0.3 ~ 1 mm general, can according to customer request. Screen basket through the flanges or next on the flange hole bolt and host into an organic whole repeatedly.

Use of centrifuge screen basket

centrifuge screen basket is centrifuge dewatering equipment of key components,screen basket is mainly used in centrifugal machine dehydration,widely used in coal, chemical industry, metallurgy industry, etc.Screen basket is one of the key components of centrifugal machine,

Feature of centrifuge screen basket

high speed rotating parts is, not only to withstand vibration sieve

basket load, but also bear coal, water serious impact, so the strength

and the accuracy is higher.

      screen basket



The specifications of the centrifuge screen basket:

Specification:

Length:50cm

Width:30cm

Diameter:150mm

End diameter:80mm

Thickness:3.0mm

Hole shape:round

Angle:30º 45º or as your request

Flange;as your request



Model

diameter (mm)

angle (°)

slot   (mm)

WZ-1200

1300

20

0.3,0.4,0.5

H-900

900

15

0.3,0.4,0.5

H-1000

1000

15

0.3,0.4,0.5

HSG-1100

1100

13

0.35,0.4

HSG-1200

1200

13

0.35,0.4,0.5

HSG-1300

1300

13

0.35,0.4,0.5

HSG-1500

1500

13

0.45,0.5



screen basket


The Packaging and Transportation of the centrifuge screen basket:


Packaging Details: 304 stainless steel wedge wire screen basket packed in wooden cases or as your request
Delivery Detail: 304 stainless steel wedge wire screen basket 30 days oraccording to your order quantity
