v wire Wedge Wire screen pipe for industry

More Views

v wire Wedge Wire screen pipe for industryv wire Wedge Wire screen pipe for industryv wire Wedge Wire screen pipe for industry

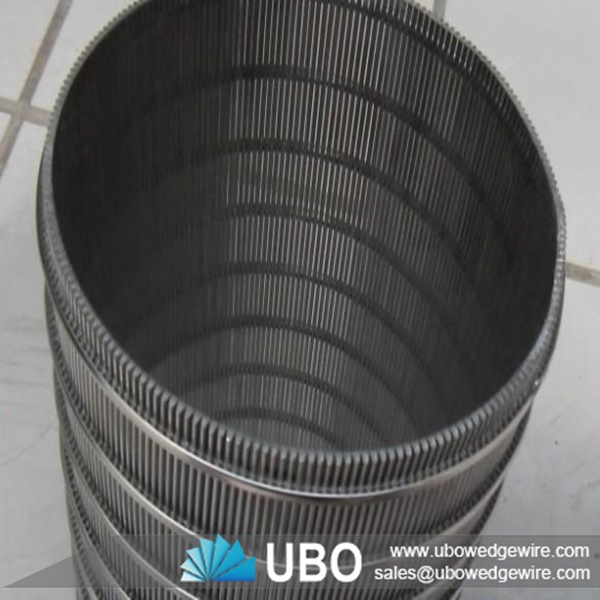

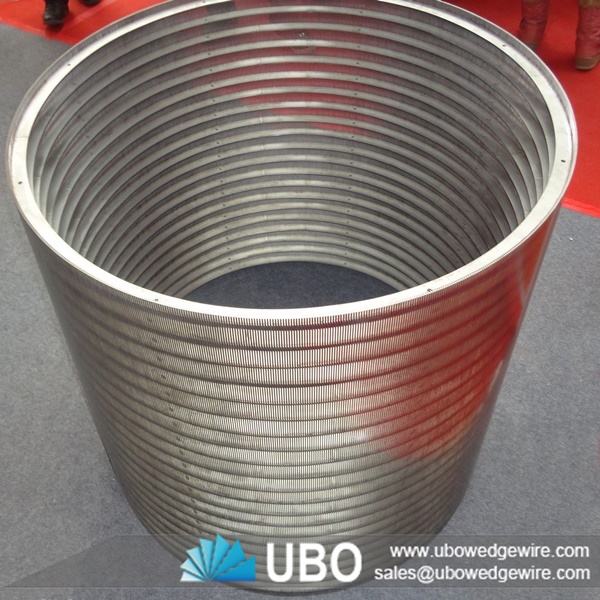

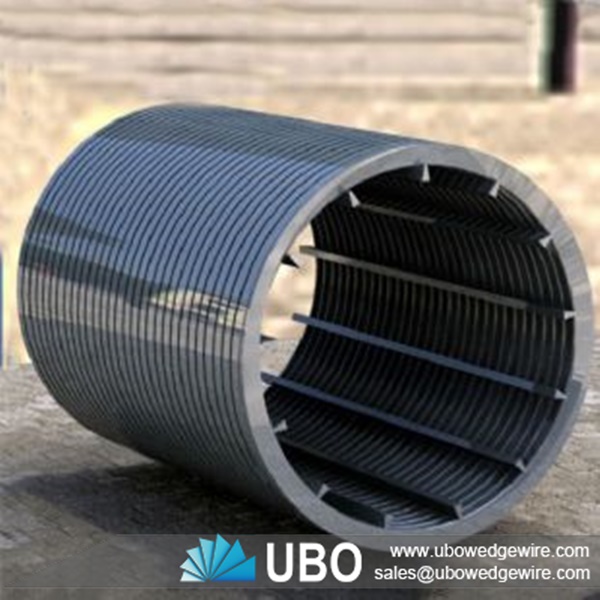

v wire Wedge Wire screen pipe for industry

Category:Wedge Wire Application
Material:stainless steel
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of v wire Wedge Wire screen pipe for industry

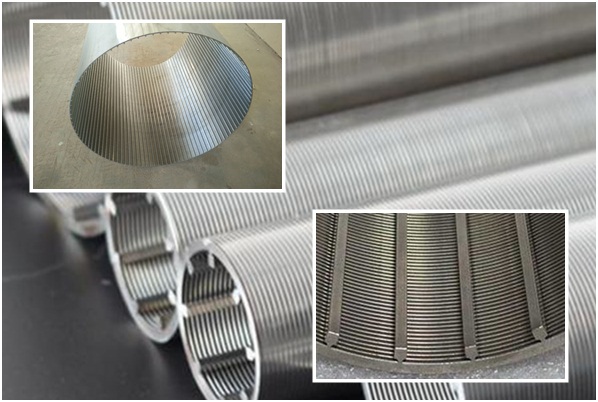

The v wire Wedge Wire screen pipe for industrys are made in panel or cylinder type from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.

v wire Wedge Wire screen pipe for industry

Features of v wire Wedge Wire screen pipe for industry

Our V-shaped wire water well screen, welded at each intersection point with the V-shaped around the wire and V-shaped ribs(or circular ribs).
With the firm structure, high porosity, accurate slot size, especially suitable for the well fine sand and powder sand strata.
The filter has the high proportion of filter area, maximum up to 60%.
V-wire screen pipe is easy to reverse wash, long service life, safe and reliable, and low comprehensive cost.

Applications of v wire Wedge Wire screen pipe for industry

This v wire Wedge Wire screen pipe is used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

v wire Wedge Wire screen pipe for industry

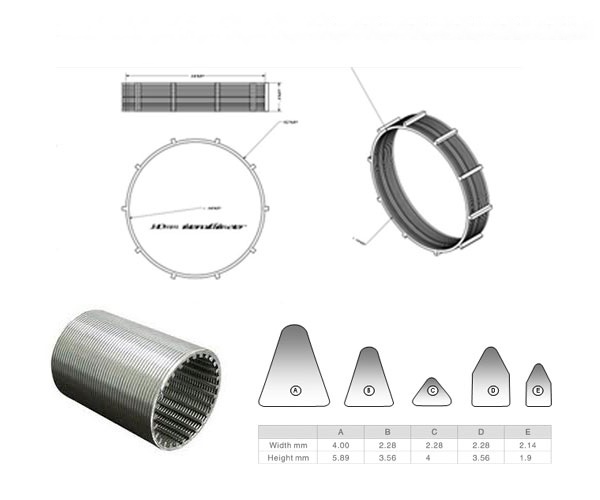

Specifications of v wire Wedge Wire screen pipe for industry:

v wire Wedge Wire screen pipe for industry

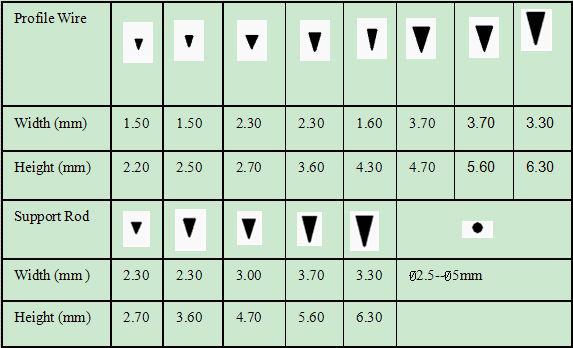

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length:

up to 6 meters

Diameter:

  from 25mm to 1200mm.
