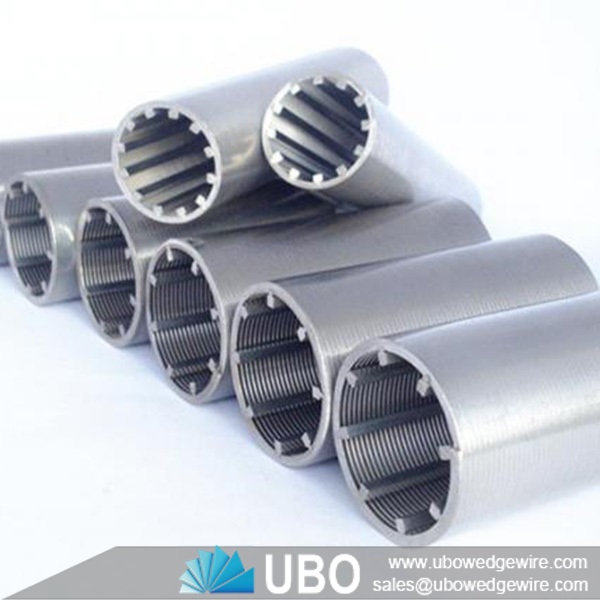

thread connection water well screen
Category: | Wedge Wire Application |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Wedge Wire Cylinder |
Application: | waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of thread connection water well screen
We supply wedge wire screen or profile screen in flat, curved or cylindrical panels made of looped, round and/or wedge shaped woven wires for precise openings.
Wedge wire screen is supplied in stainless steel and other special steel metals and alloy metal screens, mainly used on dewatering equipment.
Wedge wire screen is made with certain size of woven wire cloth as screen fabrics, then framed with stainless steel or coated carbon steel plates.
Usages for thread connection water well screen pipe:
The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.
Features for thread connection water well screen pipe:

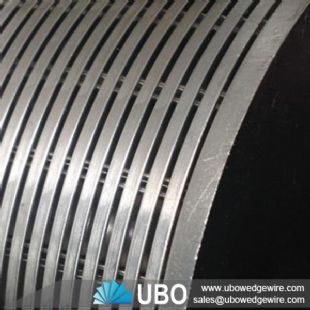

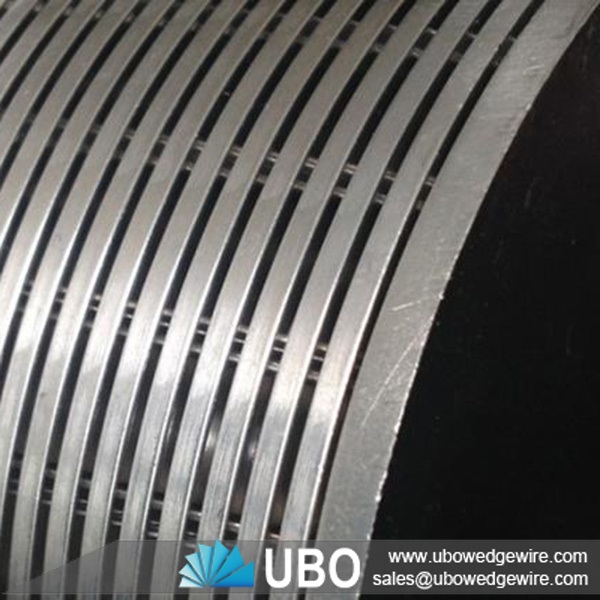

1) adoption of the wedged wires made a V profile slot. This design ensures the fluent of water filteration and more effective.
2) wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. So that the high production efficiency and long life service of the well are gaurenteed.
3) arrangement of the longitudinal support rods and the successive slots provide higher compressive property.
Features for thread connection water well screen:

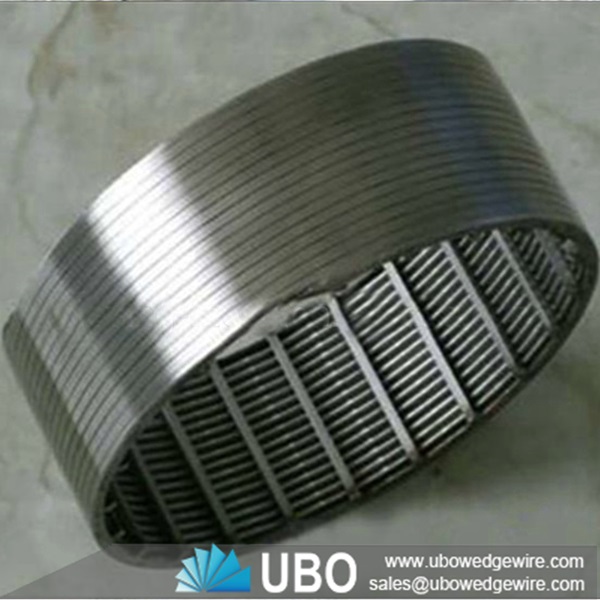

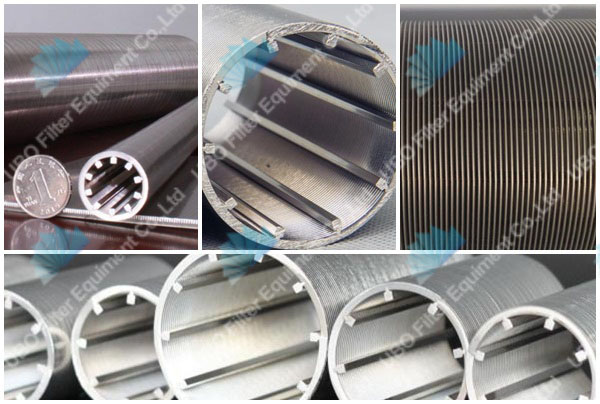

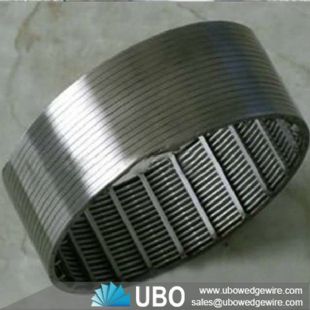

The wire wrapped screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Specifications of thread connection water well screen:
No. |
(mm)TYPE |
OD (mm) |
ID (mm) |
Support wire Number |
Filter direction |
1 |
SRD 40 |
40 |
31 |
8/10 |
FOTI/FITO |
2 |
SRD 45 |
45 |
36 |
10/12 |
FOTI/FITO |
3 |
SRD 48 |
48 |
38 |
12 |
FOTI/FITO |
4 |
SRD 60 |
60 |
51 |
12 |
FOTI/FITO |
5 |
SRD 70 |
70 |
61 |
12/18 |
FOTI/FITO |
6 |
SRD 85 |
85 |
76 |
18 |
FOTI/FITO |
7 |
SRD 110 |
110 |
101 |
24 |
FOTI/FITO |
8 |
SRD120 |
120 |
111 |
24 |
FOTI/FITO |
Remarks:
1. Make high precision wedge wire screen with different material according to user requirements.
2. high precision wedge wire screen' should be bigger than 0.020mm slot and less that 2500mm long.
Packaging and Transportation of thread connection water well screen:
