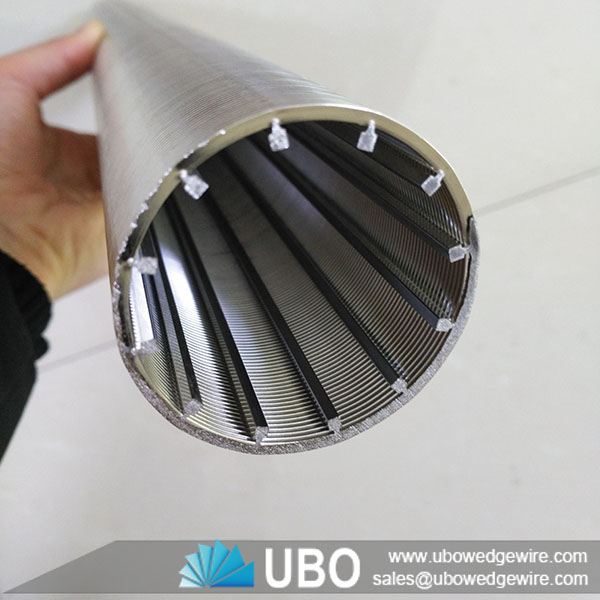

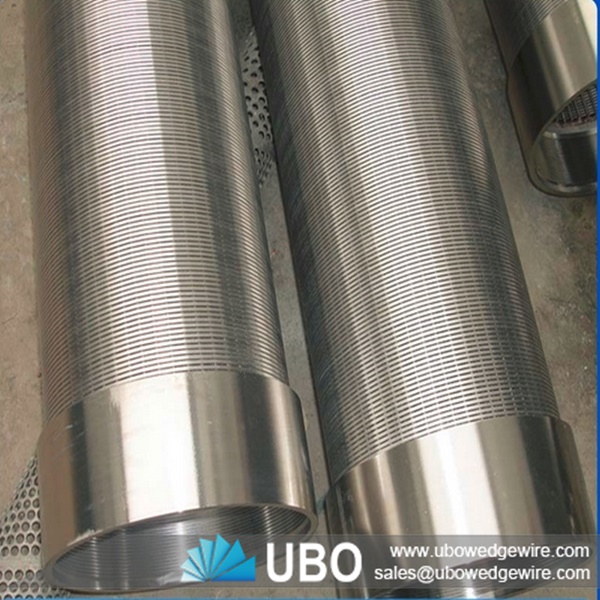

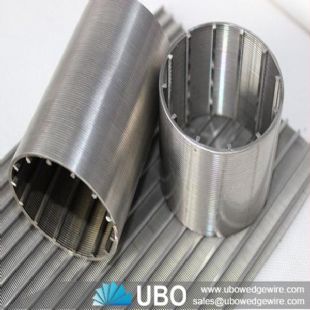

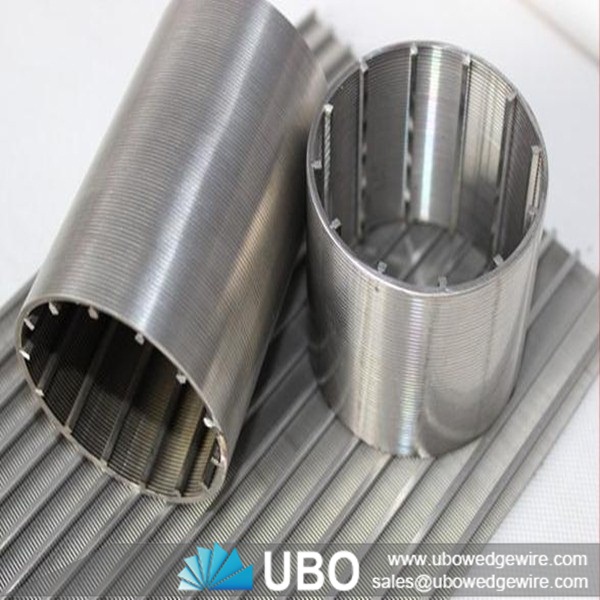

SS 304 316 V Slot Wedge Wire Pipe for Water Treatment
Category: | Wedge Wire Pipe&Cylinder |
---|---|
Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen pipe |
Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of SS 304 316 V Slot Wedge Wire Pipe for Water Treatment
SS 304 316 V Slot Wedge Wire pipe for water treatment is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.
Features of SS 304 316 V Slot Wedge Wire pipe for water treatment
1. High efficiency and high performance
2. Easy to move and install
3. Easy and convenient operation
4. Strong body
Application of SS 304 316 V Slot Wedge Wire pipe for water treatment
The continuous-slot well screen strainer is recommended in the following situations:
Formation comprised of small or fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Small diameter wells
Specifications of SS 304 316 V Slot Wedge Wire Pipe for Water Treatment:
|
|||||||
Material |
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
||||||
OD Range |
19mm-2000mm |
||||||
ID Range |
13mm-1981mm |
||||||
Length Range |
Up to 6000 mm |
||||||
Slot Range |
20 micron to 3000 micron (Tolerance:+-5 micron) |
||||||
Wedge Wire |
0.5x1.5 |
0.75x1.5 |
1x2 |
1.5*2 |
2x3 |
2*4 |
3*5 |
Support Rod |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.8*2.5
2x3 |
2x3
2x4
3x5
3x6
3x10
4x7 |
2x4
3x5
3x6
3x10
4x7
5x6 |
3x5
3x6
3x10
4x7
5x6
5x8 |
End Finishing |
Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc |
||||||
Note |
Customized According To Requirement |
