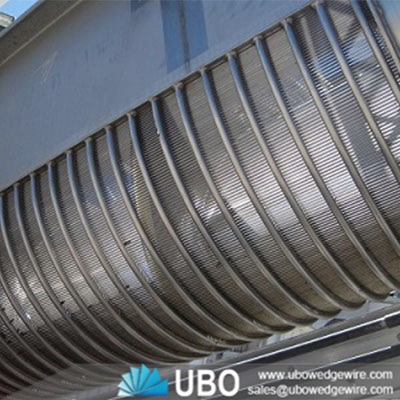

HSM ISO CE SS wedge wire rotary drum screen

More Views

HSM ISO CE SS wedge wire rotary drum screenHSM ISO CE SS wedge wire rotary drum screenHSM ISO CE SS wedge wire rotary drum screen

HSM ISO CE SS wedge wire rotary drum screen

Category:Wedge Wire Pipe&Cylinder
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:drum screen
Application:screening and classifying gravel, clay, mountain meal, sand

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the HSM ISO CE SS wedge wire rotary drum screen

    Rotating trommel drums are commonly used to separate large amounts of solids from liquids,again the aperture of the screen will determine the size of the particles allowed to flow through the drum,rotating trommel drums work by getting slurry pumped into one end of the drum,as the drum rotates the smaller particles fall through the larger particles make their way to the end of th the drum as the drums are usually set up on a slight angle to help the material flow.

Application for HSM ISO CE SS wedge wire rotary drum screen:

Wedge Wire Rotary Drum Screen is always used in processing minerals such as ferrous metals including hematite & magnetite And nonferrous metals including Lead, Zinc, Gold and Silver etc.
Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
Chemical, Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
Metallurgy, construction and other industries.

Features for HSM ISO CE SS wedge wire rotary drum screen:

1.Include single, double, and muti layer type
2.Strong processing ability
3.Easy maintenance and long life
4.High-efficient and power-saving
5.Simple and various feeding ways
6.Non-pollution and low noise

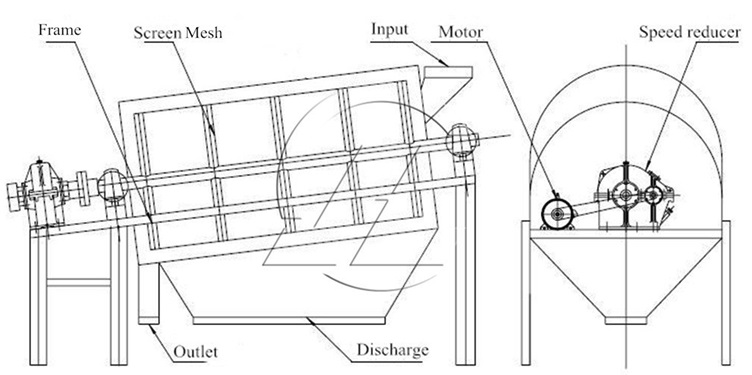

Working Principle for HSM ISO CE SS wedge wire rotary drum screen:

Pressure screen under the rotating function of drum sieve and rotating cylinder and centrifugation effect. The machine will separate the qualified pulp and non-qualified pulp.It consist of cylinder, cylinder cover, sieve drum, rotary cylinder,base and transmission parts, etc.

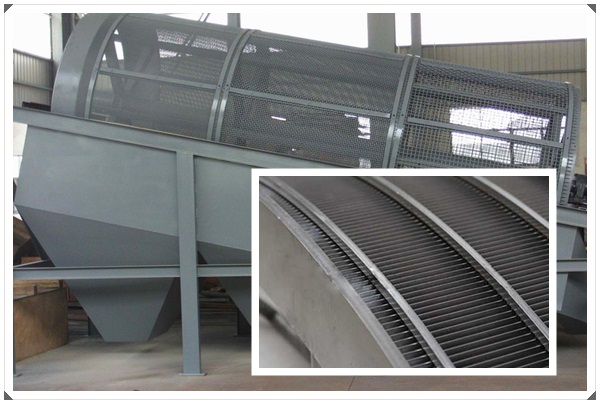

HSM ISO CE SS wedge wire rotary drum screen

The specifications of the HSM ISO CE SS wedge wire rotary drum screen:

HSM ISO CE SS wedge wire rotary drum screen

Model NO.
Screen Area
         (m2)
Sieve hole size (mm)
Seam Size (mm)
Screen Hole (T/D)
Screen Slot (T/D)
Inlet pulp consistency (%)
Motor Power (Kw)
ZNS 0.3
0.3
Φ1.6~Φ3.5
0.1~0.55
50~80
30~50
1~4
22~55
ZNS 0.6
0.6
Φ1.6~Φ3.5
0.1~0.55
90~160
60~100
1~4
30~75
ZNS 0.9
0.9
Φ1.6~Φ3.5
0.1~0.55
135~250
90~150
1~4
37~90
ZNS 1.2
1.2
Φ1.6~Φ3.5
0.1~0.55
180~320
120~190
1~4
45~110
ZNS 1.5
1.5
Φ1.6~Φ3.5
0.1~0.55
200~380
140~230
1~4
55~132
ZNS 2
2
Φ1.6~Φ3.5
0.1~0.55
260~500
220~300
1~4
75~160
ZNS 3
3
Φ1.6~Φ3.5
0.1~0.55
400~700
300~450
1~4
90~22

The Packaging and Transportation of the HSM ISO CE SS wedge wire rotary drum screen:

HSM ISO CE SS wedge wire rotary drum screen
