AISI 304 Wedge Wire Filter Strainer Cylinder Screen
Category: | Wedge Wire Pipe&Cylinder |
---|---|
Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen pipe |
Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

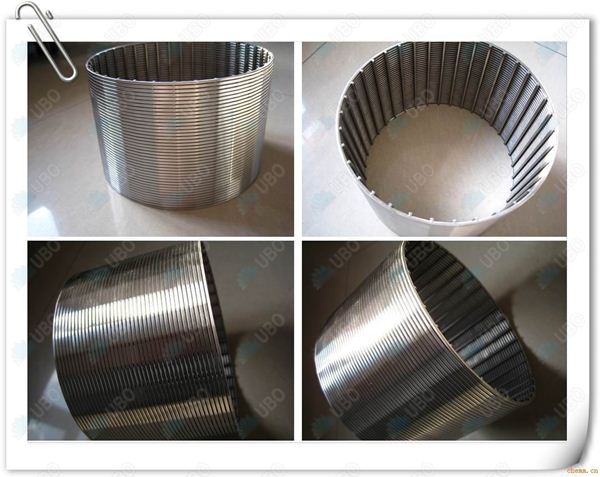

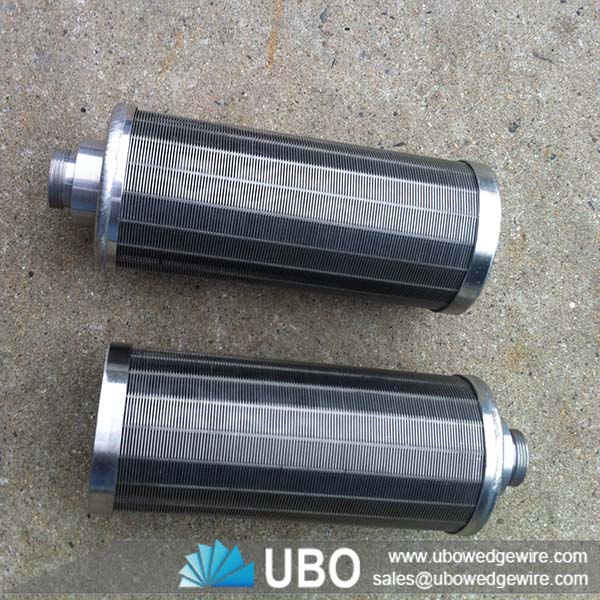

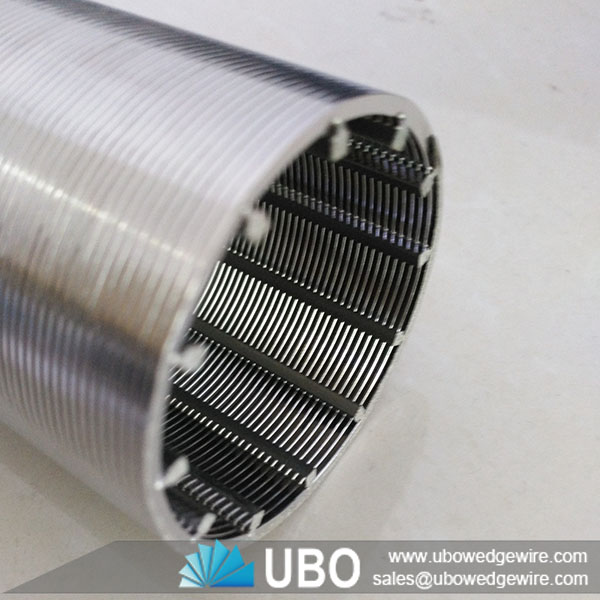

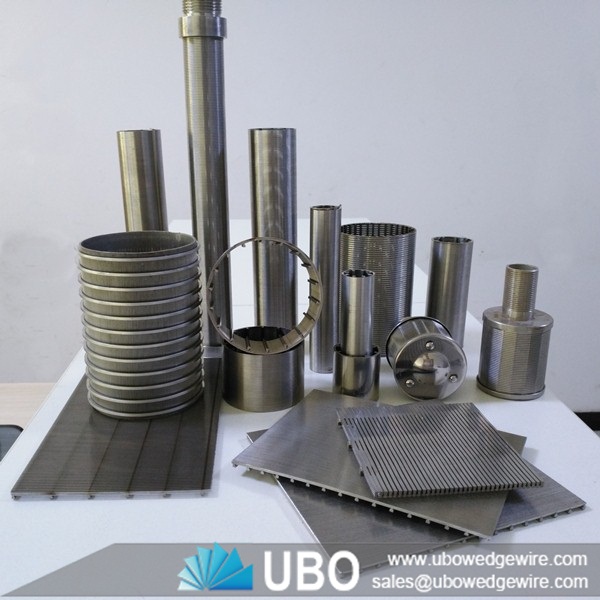

Details of AISI 304 Wedge Wire Filter Strainer Cylinder Screen
AISI 304 Wedge Wire filter strainer cylinder screen is manufactured by a V or wedge shaped wire around an internal array of longitudinal support rods. Each intersection point of this wire is fusion welded. The V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities while at the same time keeps the majority of sand and gravel out of the well.
Features of AISI 304 Wedge Wire filter strainer cylinder screen
1. Accurate filtering performance.
2. High efficiency.
3. Narrow slot openings.
4. Normal or high grade type for choice.
5. Various edge types.
6. Wide range of diameters for choice.
7. Special sizes can be customized.
8. Economical but high grade.
9. Corrosion resistance.
10. Rust resistance.
11. Long service life and durable.
Application of AISI 304 Wedge Wire filter strainer cylinder screen
Wedge wire water well screen cylinder strainers are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment.
Specifications of AISI 304 Wedge Wire Filter Strainer Cylinder Screen:
Wire Size |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
|
Support Rods |
Width(mm): 2.30 3.00 3.30 3.70 |
|
Note: other wires and rods available upon request |
||
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
|
Material: |
Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.) |
|
Length |
Lengths up to 6 meters. |
|
Diameter |
ranging from 25mm to 800mm. |
|
End connection |
Plain beveled ends for butt welding or threaded |
Packaging and Transportation of AISI 304 Wedge Wire Filter Strainer Cylinder Screen:
