SS wedge wire slot wire dewatering curved sieve bend screen panel

More Views

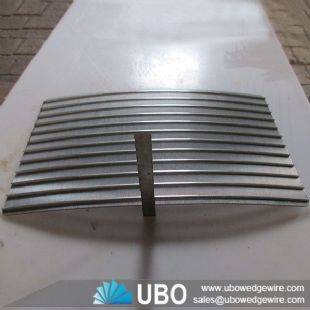

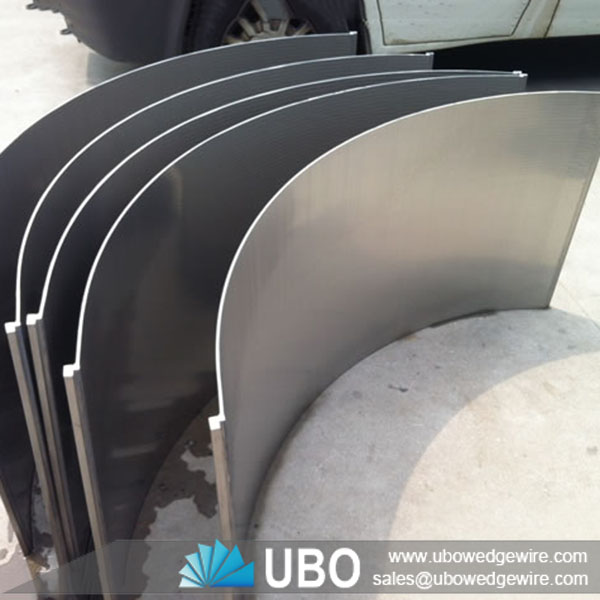

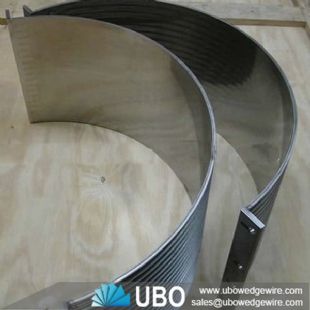

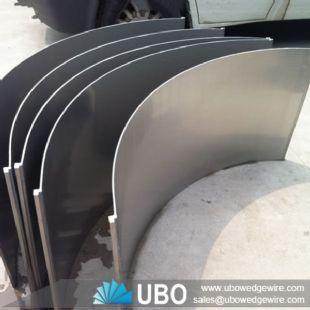

SS wedge wire slot wire dewatering curved sieve bend screen panelSS wedge wire slot wire dewatering curved sieve bend screen panelSS wedge wire slot wire dewatering curved sieve bend screen panel

SS wedge wire slot wire dewatering curved sieve bend screen panel

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the SS wedge wire slot wire dewatering curved sieve bend screen panel

The SS wedge wire slot wire dewatering curved sieve bend screen panel retains the solids on the surface of the screen from where they are removed by the movement down the slope of the screen. The filtered liquid falls through the screen and creates a self-cleaning effect. The solids are thrown out by the gliding down the slope and can be collected in a stainless-steel drain container.

And each screen is designed and manufactured to ensure complete customer satisfaction. The SS slot wire dewatering curve bend screen panel are made from two elements the V-shaped wedge wire is helically wound around an array of internal longitudinal support rods. Each intersection of wire and rods is automatically resistance welded, creating a very strong cage-like cylinder with one continuous slot spiralling along its full length. The gap between the wires, also called slot or aperture, is manufactured to customer specification, allows water to flow from the surrounding aquifer into the screen.

All our SS wedge wire slot wire dewatering curved sieve bend screen panel can be supplied in standard material of SS304/ SS316/ SS316L. Many other material grades are available on request.

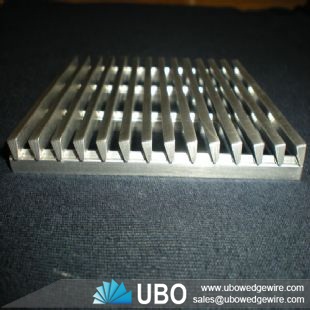

SS wedge wire slot wire dewatering curved sieve bend screen panel

Advantage of SS wedge wire slot wire dewatering curved sieve bend screen panel


1. Non Plugging slots
2. V-shaped wire creating, two point particle contact preventing plugging.
3. Inwardly opening slots (in-flow) preventing sand particles from remaining lodged in screen.
4. The V-shaped wire enhances well efficiency, ensures consistent pumping and long well life.
5. Large Open Area
6. The continuous slot wedge wire offers higher open area than any other type of screens used for water well applications, such as slotted pipe, punched pipe, louver screens.
7. Wedge wires for each application are selected to maximize open area, resulting in the lowest possible cost for water extraction.

Application of SS wedge wire slot wire dewatering curved sieve bend screen panel

The SS slot wire dewatering curve bend screen panel are manufactured to suit a wide range of industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.

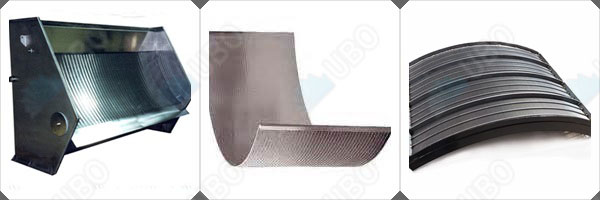

SS wedge wire slot wire dewatering curved sieve bend screen panel

SS wedge wire slot wire dewatering curved sieve bend screen panel

SS wedge wire slot wire dewatering curved sieve bend screen panel

The specifications of the SS wedge wire slot wire dewatering curved sieve bend screen panel:

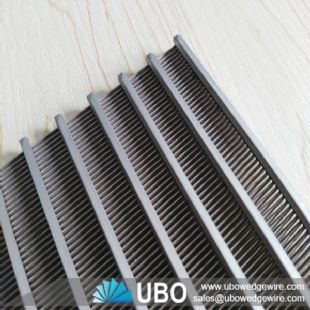

SS wedge wire slot wire dewatering curved sieve bend screen panel

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

Length Range

Up to 6000mm

Width Range

Up to 6000mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5x2.5

2x3

2x4

3x5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5*2.5

2x3

2x3

3*5

3x5

3x5

4*6

5*8

Angle

90°,120°,140°,150°,160° etc.

Arc height

10mm,15mm,20mm,50mm or depend on you size of screen panel.

Frame

No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request.

Note

Customized according to requirement
