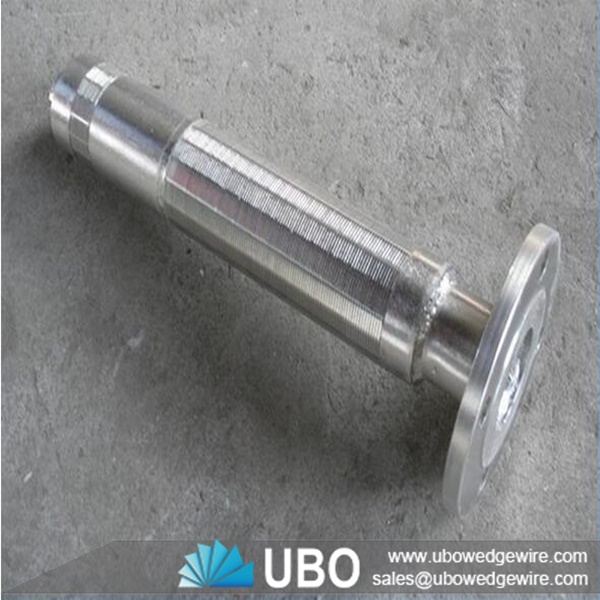

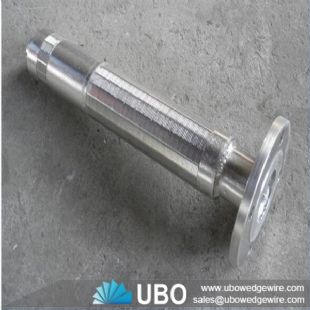

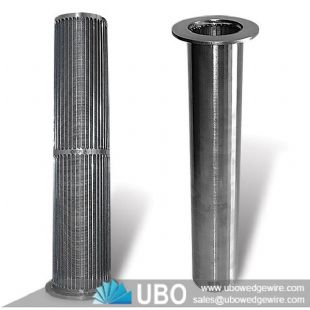

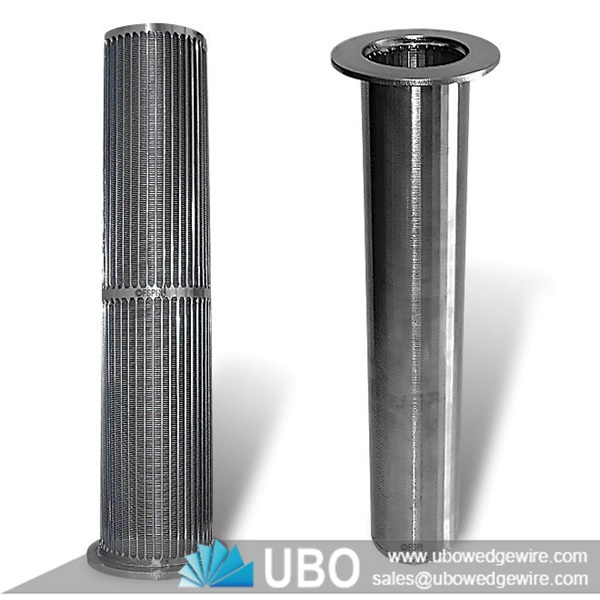

Wedge wire screen strainer resin trap
Category: | Resin Traps |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire resin trap |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge wire screen strainer resin trap
Wedge wire screen strainer resin trap is made of V shaped stainless steel wire. It has flow area.water distribution uniformity, the high mechanical strength, temperature,pressure,anti aging, anti corrosive has been greatly enhanced. Stainless steel wire around the space under the index finger to the size of the design.
Features of Wedge wire screen strainer resin trap
Loss of expensive resins
Cross-contamination of resins
Damage to pumps, valves, etc. further down process disturbance
Environmental damage incurred by loss of resins.
Wedge wire is non pluggling surface.
Wedge wire is a fully welded construction able to support high pressure and temperature
An easy installation ( between flanges) directly on the line.
Application of Wedge wire screen strainer resin trap
water treatment, resin traps, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.
Specifications of Wedge wire screen strainer resin trap:
Type
|
Slots mm
|
ΦA
|
Flange DN
|
L1mm
|
AM1
|
0.05, 0.1, 0.2 0.3, 0.5, 1.0
|
45,57,76,89,108,
133, 159, 219
|
40,50,65,80,
100,125,150,
200
|
442,496,547,
600,654,705,
758,812,863,
916,970,1021,
1074,1128,1179,
1232, 1286
|
