wedge wire screen header lateral for Drainage Systems

More Views

wedge wire screen header lateral for Drainage Systemswedge wire screen header lateral for Drainage Systemswedge wire screen header lateral for Drainage Systems

wedge wire screen header lateral for Drainage Systems

Category:Profile screen laterals
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Profile screen laterals
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the wedge wire screen header lateral for Drainage Systems

   Wedge wire lateral assemblies is widely used in the under draining applications with the features of effective filtering and screening performance. Wedge wire lateral assemblies are a typical screen type used in the under draining.

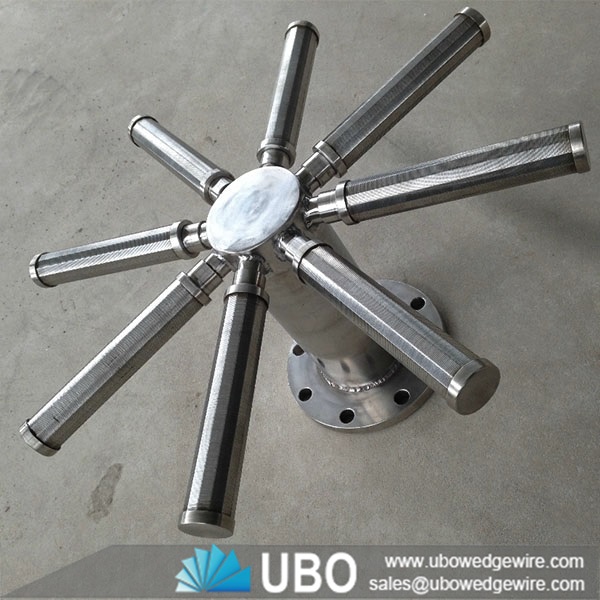

   Wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.

Application for wedge wire screen header lateral for Drainage Systems:

application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Features for wedge wire screen header lateral for Drainage Systems :

High open area.
High filtering and screening performance.

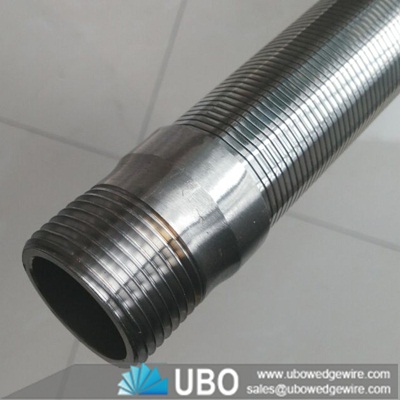

Various ending types.
Temperature resistance.
Corrosion and rust resistance.
Non-clogging.
Easy to install and replace.
Low maintenance cost.
Durable and long service life.
Suit different application.

Advantage for wedge wire screen header lateral for Drainage Systems :

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.

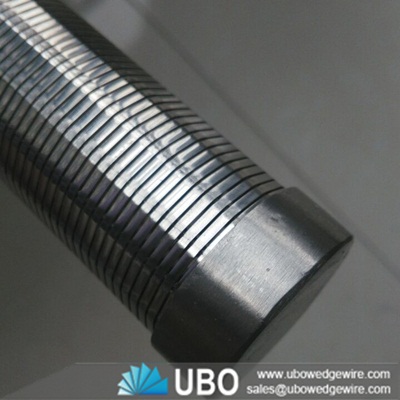

· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

Traditional laterals for wedge wire screen header lateral for Drainage Systems :

With the advantage of the wrap wire screens pipe,large flow area, uniform water distribution, high mechanical strength,temperature resistance, pressure resistance, aging resistance,corrosion resistance have been greatly improved. Even if the branch pipe bending occurs, the resin still can’t flow out.Stainless steel wire slot size can be designed according to the resin size.

<a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> header lateral for Drainage Systems

The specifications of the wedge wire screen header lateral for Drainage Systems:

No.

(mm)TYPE

OD

(mm)

ID

(mm)

Support wire Number

Filter direction

1

SRD 40

40

31

8/10

FOTI/FITO

2

SRD 45

45

36

10/12

FOTI/FITO

3

SRD 48

48

38

12

FOTI/FITO

4

SRD 60

60

51

12

FOTI/FITO

5

SRD 70

70

61

12/18

FOTI/FITO

6

SRD 85

85

76

18

FOTI/FITO

7

SRD 110

110

101

24

FOTI/FITO

8

SRD120

120

111

24

FOTI/FITO

Remarks:
1.   Make high precision wedge wire screen with different material according to user requirements.
2.   high precision wedge wire screen' should be bigger than 0.020mm slot and less that 2500mm long.
