wedge wire distributer and collector for water treatment

More Views

wedge wire distributer and collector for water treatmentwedge wire distributer and collector for water treatmentwedge wire distributer and collector for water treatment

wedge wire distributer and collector for water treatment

Category:Profile screen laterals
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the wedge wire distributer and collector for water treatment

Wedge wire distributer and collector is widely used in the under draining applications with the features of effective filtering and screening performance. Wedge wire lateral assemblies are a typical screen type used in the under draining.

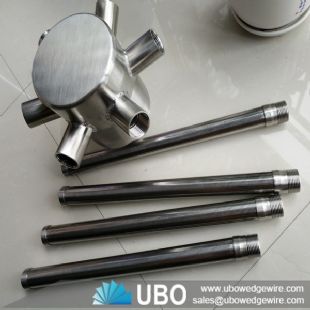

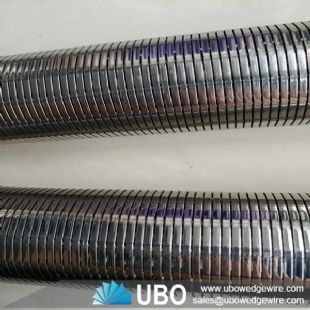

Wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.

wedge wire distributer and collector for water treatment

Application of wedge wire distributer and collector for water treatment

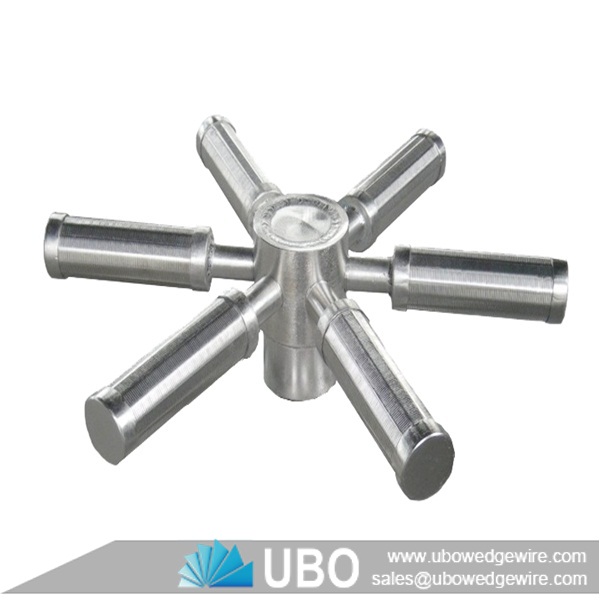

wedge wire type hub and header lateral consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Features of wedge wire distributer and collector for water treatment

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.

wedge wire distributer and collector for water treatment

The specifications of the wedge wire distributer and collector for water treatment:

wedge wire distributer and collector for water treatment



nominal diameter

Branch diameter

Branch Qty

The specification of the nominal flange

1500

45-76

4-12

DN100

2000

45-76

4-12

DN125

2500

57-89

4-12

DN150

3000

57-108

4-12

DN200

3200

57-108

4-12

DN200



The above specifacation are our nomal products, usually, we design according to client's request.
