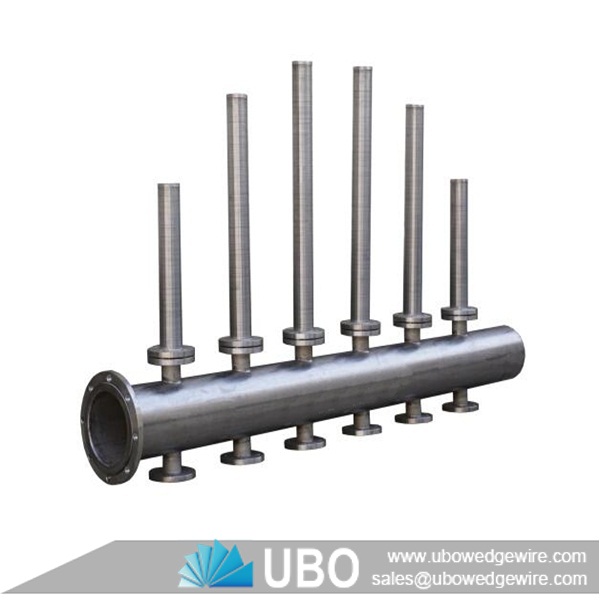

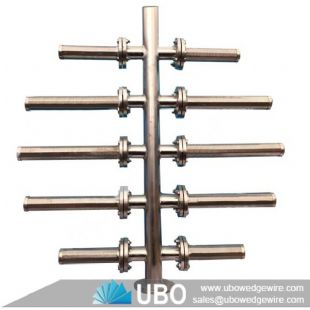

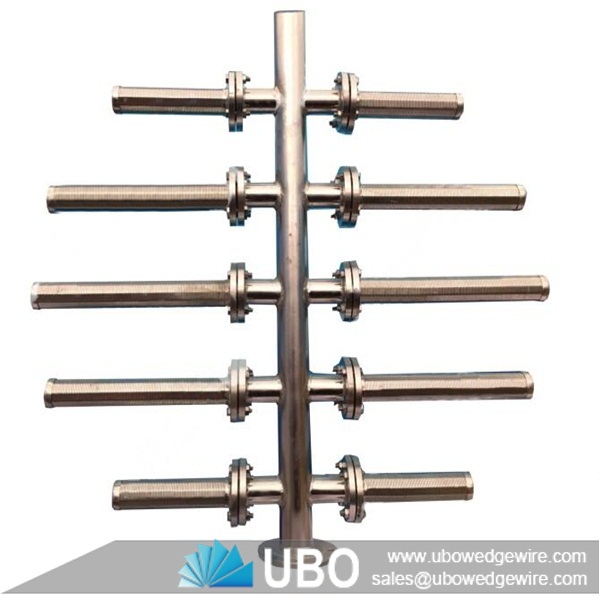

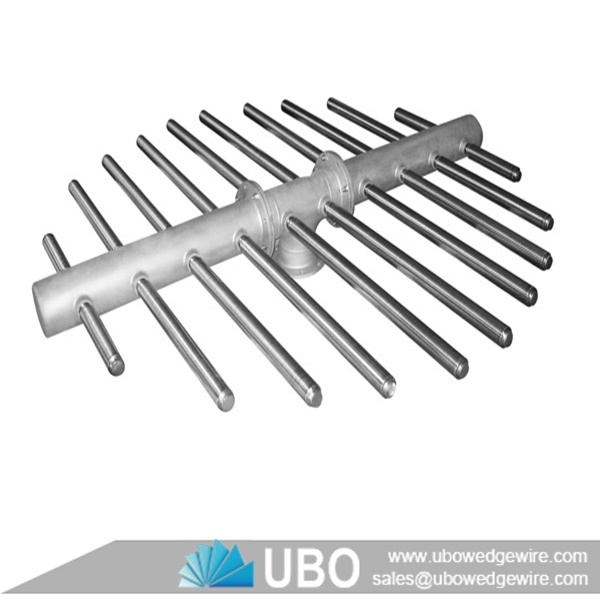

stainless steel wedge wire screen lateral distributor

More Views

stainless steel wedge wire screen lateral distributorstainless steel wedge wire screen lateral distributorstainless steel wedge wire screen lateral distributor

stainless steel wedge wire screen lateral distributor

Category:Profile screen laterals
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the stainless steel wedge wire screen lateral distributor

Stainless steel wedge wire screen lateral distributor is widely used in the under draining applications with the features of effective filtering and screening performance. Wedge wire lateral assemblies are a typical screen type used in the under draining.

Stainless steel wedge wire screen lateral distributor, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.

Advantage of stainless steel wedge wire screen lateral distributor

1. Uniform slot, no leakage of resin or material
2. High opening area, high flow area which can meet large flow requirement
3. Large liquid distribution area and uniform distribution
4. Diversified structure which can meet the requirements of the container
5. High pressure tolerance of branch pipe
6. High quality material ensures the longer life

Application of stainless steel wedge wire screen lateral distributor

Wedge wire lateral assemblies is widely used in under draining applications for filtering and screening, additional, it is widely used in various machines for screening.
Cation exchanger.
Mixed bed exchanger.
Ion exchanger.

stainless steel <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> lateral distributor





The specifications of the stainless steel wedge wire screen lateral distributor:



Material stainless steel, hastelloy steel or other alloy steel
Assemblies end type threaded type or flange type
Slot size 0.05 mm, 0.1 mm, 0.2 mm, 0.3 mm, 0.5 mm, 1 mm
Screen lateral diameter 32 mm, 40 mm, 70 mm, 76 mm, 89 mm
Vertical hub diameter 76 mm, 89 mm, 108 mm, 133 mm, 159 mm, 219 mm



Connection type:

stainless steel <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> lateral distributor





The Packaging and Transportation of the stainless steel wedge wire screen lateral distributor:

transportation
