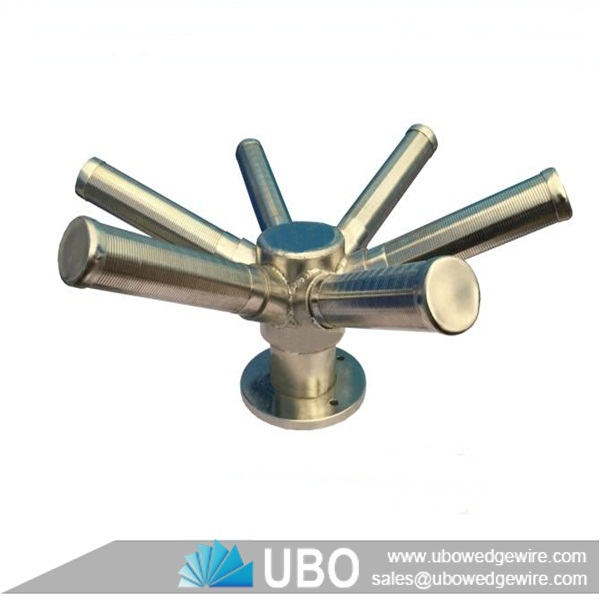

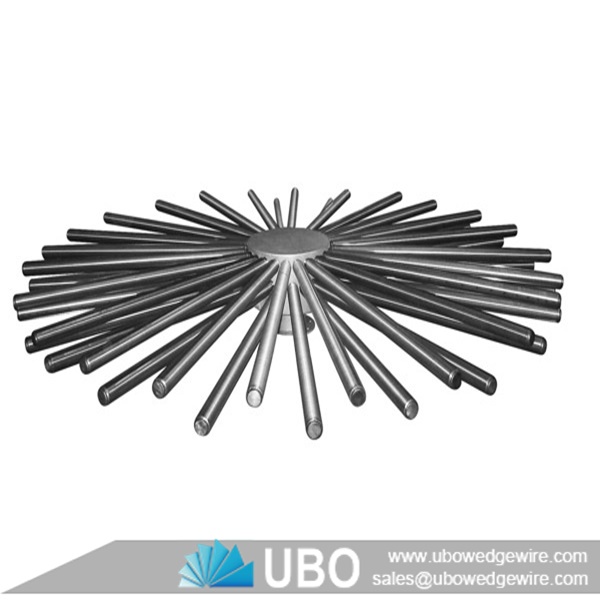

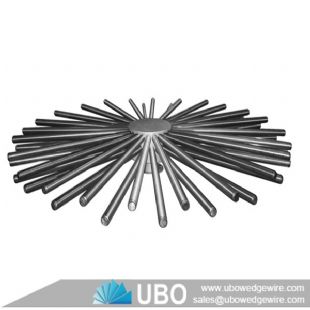

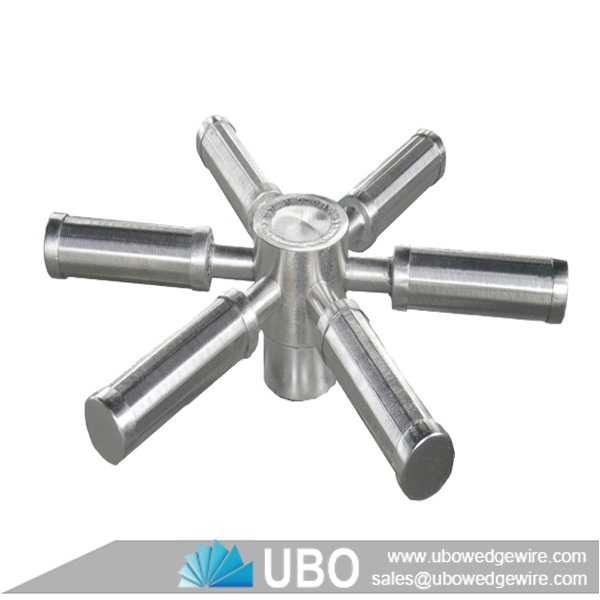

Stainless steel water distributor with wedge v wire screen branch pipe

More Views

Stainless steel water distributor with wedge v wire screen branch pipeStainless steel water distributor with wedge v wire screen branch pipeStainless steel water distributor with wedge v wire screen branch pipe

Stainless steel water distributor with wedge v wire screen branch pipe

Category:Profile screen laterals
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:water distributor
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless steel water distributor with wedge v wire screen branch pipe

Stainless steel water distributor with wedge v wire screen branch pipe also avoiding flow/pressure concentrations. The non-plugging hub style design is ideal for accommodating disc head vessels. Made to your specification of size, open area and material, you can expect easy maintenance and exceptional long-term durability. We can builds hub laterals to your specifications for material, wire and rod size as well as open area.

Stainless steel water distributor with wedge v wire screen branch pipe



Stainless steel water distributor with wedge v wire screen branch pipe

Advantage of stainless steel water distributor with wedge v wire screen branch pipe

1. Uniform slot, no leakage of resin or material
2. High opening area, high flow area which can meet large flow requirement
3. Large liquid distribution area and uniform distribution
4. Diversified structure which can meet the requirements of the container
5. High pressure tolerance of branch pipe
6. High quality material ensures the longer life

Application of Stainless steel water distributor with wedge v wire screen branch pipe

Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Stainless steel water distributor with wedge v wire screen branch pipe

Stainless steel water distributor with wedge v wire screen branch pipe



The specifications of the Stainless steel water distributor with wedge v wire screen branch pipe:



Material

SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205,  2207, Duplex, Hastelloy, etc

Normal Lateral Tube QTY (PCS)

4, 6, 8, 12,16, etc. According to request, actual flow rating, and application.

Lateral OD Range (mm)

25 to 80mm, customized

Normal Hub (mm)

108, 133, 219, Customized

Hub and lateral connector types

Thread, Flange

Diameter Range(mm)

According to the tank diameter. (Usually 200mm shorter than tank diameter)

Slot Range(mm)

Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.

Slot according to request.

Wedge Wire(mm)

1x2

1.5x2

2x3

Support Rod (mm)

1.5x2.5

2x3

1.8x2.5

2x3

2x3

2x4



Note

Customized According To Requirement

The Packaging and Transportation of the Stainless steel water distributor with wedge v wire screen branch pipe:

Stainless steel water distributor with wedge v wire screen branch pipe
