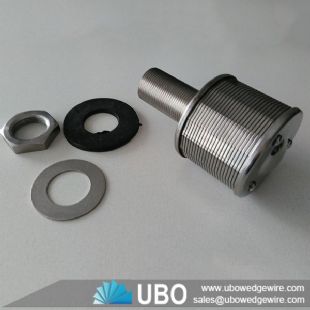

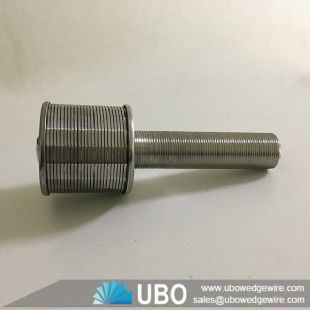

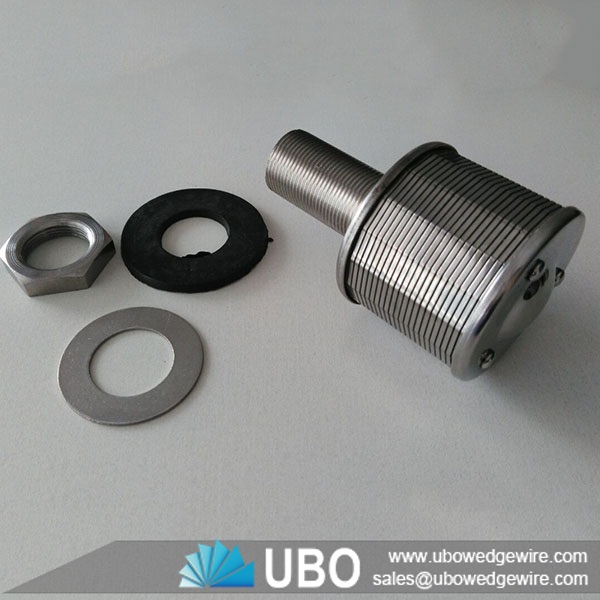

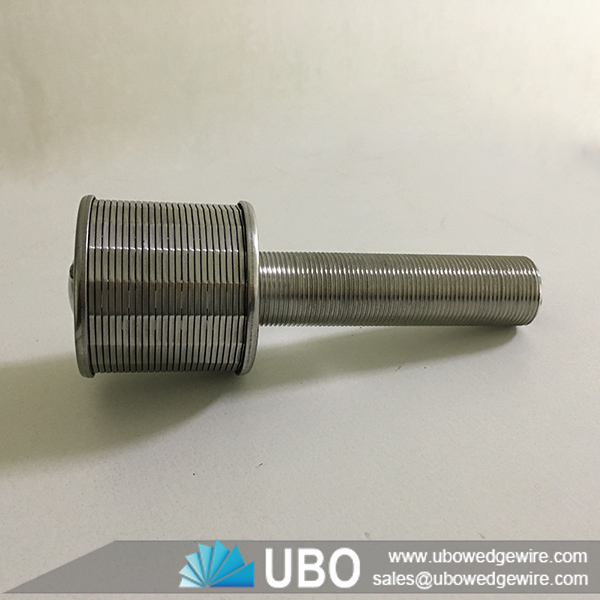

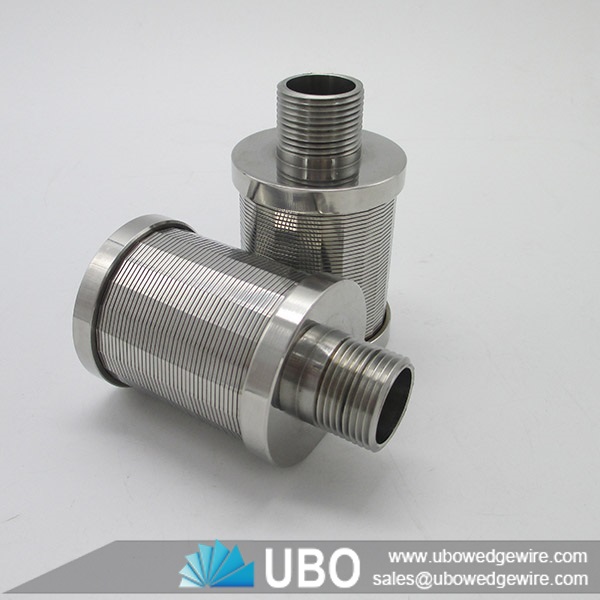

Industry wedge wire screen water filter nozzle for softener system

More Views

Industry wedge wire screen water filter nozzle for softener systemIndustry wedge wire screen water filter nozzle for softener systemIndustry wedge wire screen water filter nozzle for softener system

Industry wedge wire screen water filter nozzle for softener system

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Industry wedge wire screen water filter nozzle for softener system

Industry wedge wire screen water filter nozzle for softener system manufactured by wrapping a shaped wire around an internal array of longitudinal rods.The wire and rod, generally made from carbon or stainless steel are joined by resistance welding. Screen sections are usually twenty feet long. Commonly referred to as continuous slot or wire wrap screen, this product was originally developed to overcome problems associated with cable tool wells drilled in fine grained.

Industry <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> water filter nozzle for softener system

Application of Industry wedge wire screen water filter nozzle for softener system

Stainless steel oil flitered nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Advantages of Industry wedge wire screen water filter nozzle for softener system

Optimum structural strength for heavy loads
Minimal plugging and blinding
High pressure/pulsating pressure capability
Corrosive application suitability
Thermal resistance
Long-life — almost endless cleanability
Sterile application / food industry suitability
Low pressure drop
High flow rate




The specifications of the Industry wedge wire screen water filter nozzle for softener system:



Industry <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> water filter nozzle for softener system

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

The Packaging and Transportation of the Industry wedge wire screen water filter nozzle for softener system:

Industry <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> water filter nozzle for softener system
