Hastelloy Wedge Wire Screen Filter Nozzles for Lithium Brine Solution
Category: | Filter Nozzle |
---|---|
Material: | Hastelloy,stainless steel 304,304L,316,316L,321,430 or as per your request. |
Properties: | filter nozzle |
Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Hastelloy Wedge Wire Screen Filter Nozzles for Lithium Brine Solution

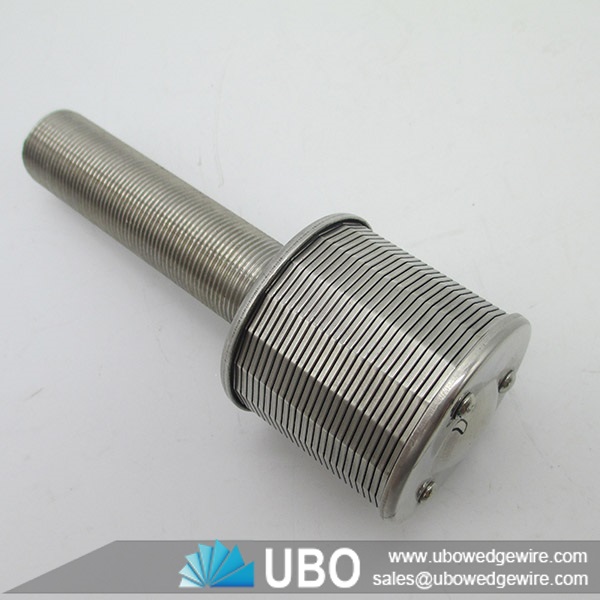

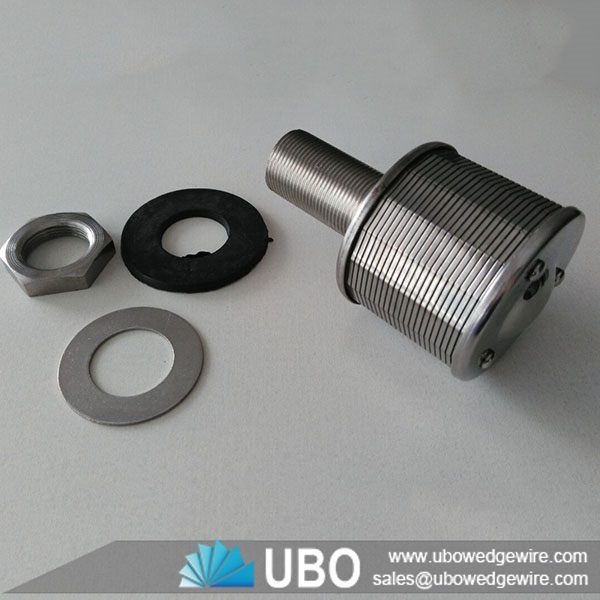

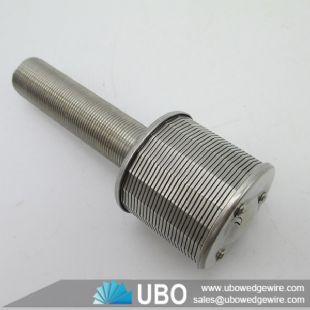

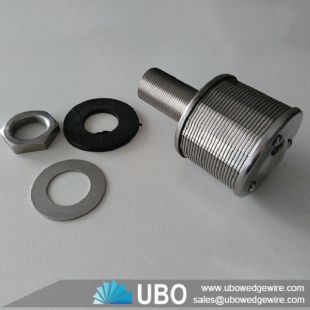

Hastelloy wedge wire screen filter nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle. Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate. Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.
According to different applications, the Hastelloy wedge wire screen filter nozzle can be divided into two main types, you can choose them according to your requirements.
Long typre wedge wire nozzle.

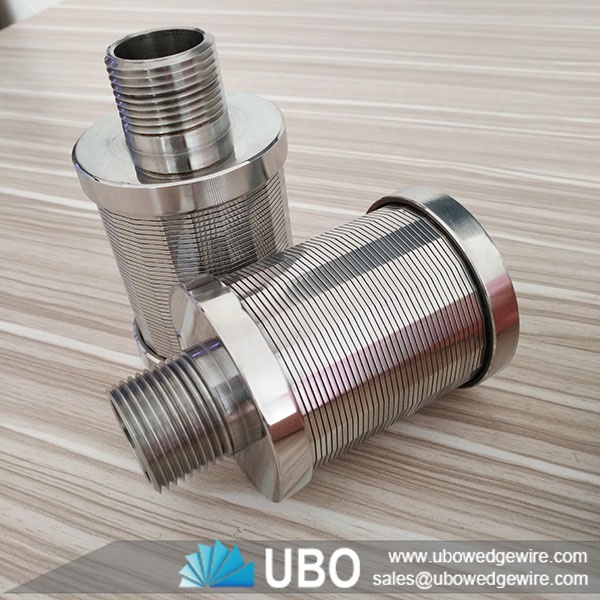

Double head wedge wire nozzle.
Single flow rating wedge wire screen
Applications of Hastelloy wedge wire screen filter nozzles used for lithium brine solution
treatment of drinking water, demineralised water production, urban and industrial waste water treatment, filtration of river/well water for irrigation, water for swimming pools, steel works, food production, etc.
Advantages of Hastelloy wedge wire screen filter nozzles used for lithium brine solution
-- Large open area
-- Consistent slot width
-- Non-clogging
-- Non loss of resin
-- Long using life
-- Smooth surface
Specifications of Hastelloy Wedge Wire Screen Filter Nozzles for Lithium Brine Solution:
|
|||||||
Slot (mm) |
Dimension |
Flow Rating (M3/H) |
|||||
D(mm) |
H(MM) |
L(MM) |
Thread |
Fittings |
|||
UBO-0.5 |
0.25 |
45 |
45 |
90/request |
M,NPT, G, PT(BSPT),Z,BSP, request |
SS Gasket, Rubber gasket, Nut, request |
0.5 |
UBO-1.0 |
0.25 |
53 |
45 |
90/request |
1.0 |
||
UBO-1.5 |
0.25 |
57 |
45 |
90/request |
1.5 |
||
UBO-2.0 |
0.25 |
57 |
55 |
100/request |
2.0 |
||
UBO-2.5 |
0.25 |
70 |
55 |
100/request |
2.5 |
||
UBO-3.0 |
0.25 |
70 |
70 |
120/request |
3.0 |
||
Note |
* All the above size are the normal size. Customized size is possible. * UBO could help to design according to the application and requirement. * The nozzles customized range as below: 1. Slot range: 0.05-2mm 2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application 3. Thread according to requirement |
