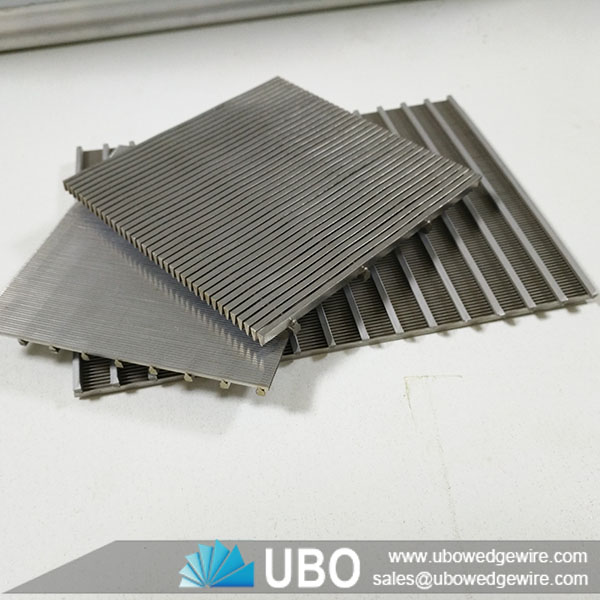

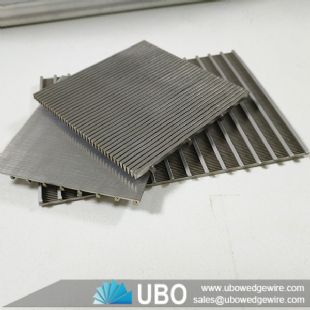

Stainless steel profile wire sieve wedge screen panels

More Views

Stainless steel profile wire sieve wedge screen panelsStainless steel profile wire sieve wedge screen panelsStainless steel profile wire sieve wedge screen panels

Stainless steel profile wire sieve wedge screen panels

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless steel profile wire sieve wedge screen panels

Wedge Wire Screens are manufactured by wrapping a profile wire cylindrically around longitudinal placed support rods. All wires and rods are resistance welded at each point of contact. The numerous combinations of wire profiles, support rods, flow direction and wide range of slots (fixed or variable) allow UBO to design screens according your exact technical specification. UBO manufacture wedge wire screens for a variety of industries including water well production, water treatment, food and beverage, oil and gas, pulp and paper, mineral and aggregate processing, refining and petrochemical.

Stainless steel profile wire sieve wedge screen panel is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods,then be made to panel screen through cutting and edge welding. Each profile wire and support rod is contacted by resistance welding. Support bar will be flat bar ,round bar ,triangle wire and so on,slot size range from 0.2mm to 3mm.

Stainless steel profile wire sieve wedge screen panels

Stainless steel profile wire sieve wedge screen panels

Application of Stainless steel profile wire sieve wedge screen panels

municipal areas and industries
interior wall cladding and facades
Used in modern buildings
Ceiling panels
Drainage system of showers

Features of Stainless steel profile wire sieve wedge screen panels

Machine spot-welded for high strength throughout
High abrasion and corrosion resistance
Precise sizing maintained with wedge wire screens
Maximised open area drainage
High release angles
Custom made to suit specific machines and applications
Minimal pegging in difficult applications
Wide range of apertures and profiles available
Available with various screen fastening systems and accessories

Stainless steel profile wire sieve wedge screen panels

The specifications of the Stainless steel profile wire sieve wedge screen panels:

Stainless steel profile wire sieve wedge screen panels

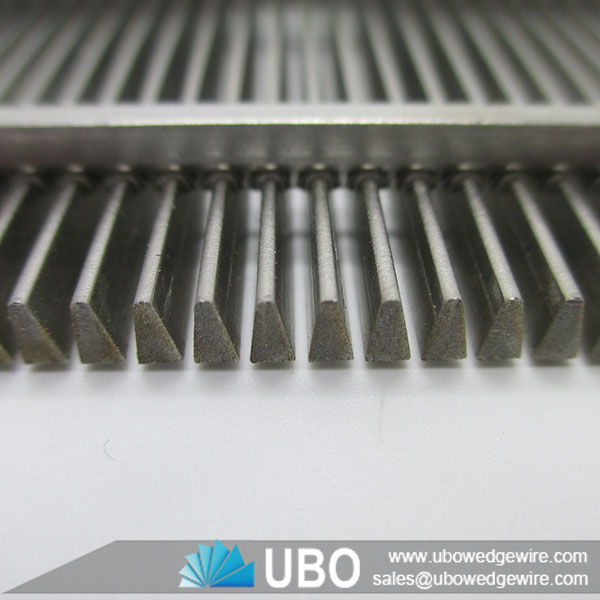

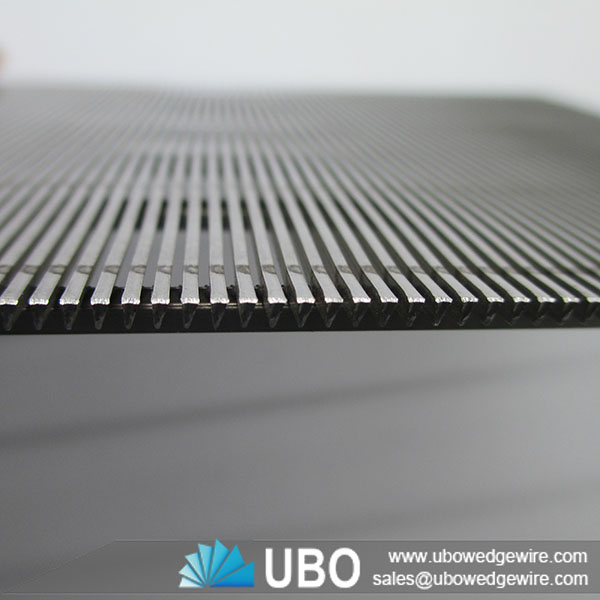

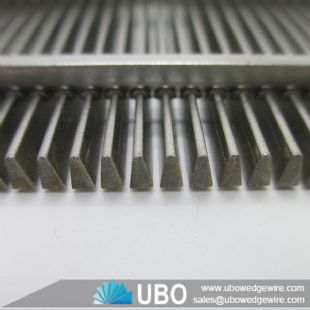

   Structure of Stainless steel profile wire sieve wedge screen panels

   Stainless steel profile wire sieve wedge screen panels Stainless steel profile wire sieve wedge screen panels

Wedge wire screen panel
Material: AISI304/316/316L,Galvanized low carton.
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot /opening Size 0.10 -- 6.00mm ,also can be customized as your request.
Lengt Can be customized as your request
Width 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement.

The Packaging and Transportation of the Stainless steel profile wire sieve wedge screen panels:

Stainless steel profile wire sieve wedge screen panels
