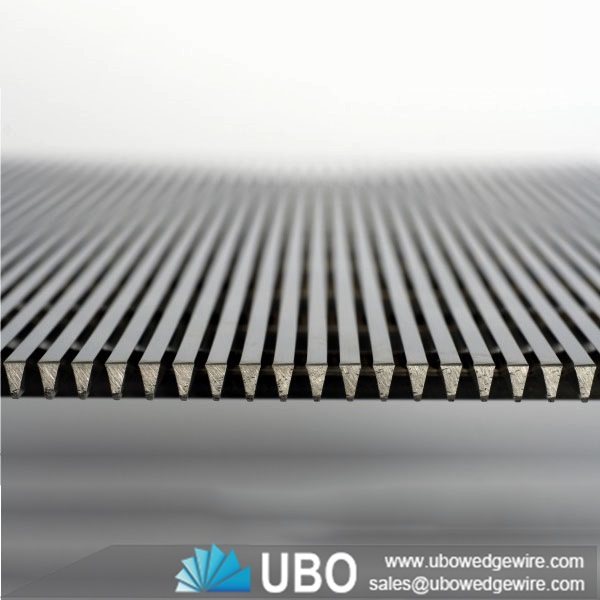

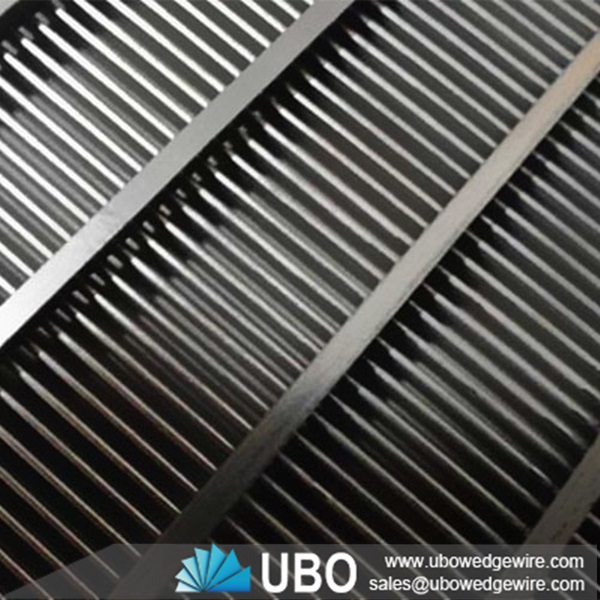

wedge wire sieve screen plate for Filtration screen

More Views

wedge wire sieve screen plate for Filtration screenwedge wire sieve screen plate for Filtration screenwedge wire sieve screen plate for Filtration screen

wedge wire sieve screen plate for Filtration screen

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the wedge wire sieve screen plate for Filtration screen

   The panels have continuous slot openings that widen inwardly. This makes the screen self-cleaning by allowing "near slot size" particles to pass through the screen rather than plug the opening. And the products are made by continuously winding a wrap wire onto a frame of support rods. This is done on precision built, electronically controlled machinery which ensures consistently high strength, precise slot openings and product durability.

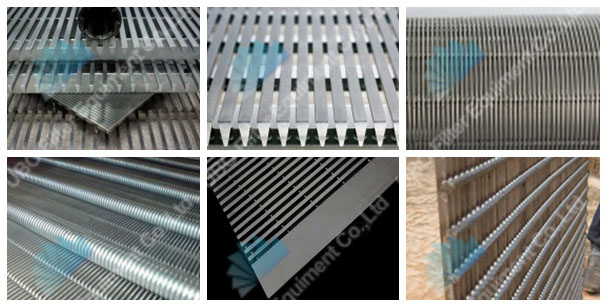

wedge wire sieve screen plate for Filtration screen

Characteristics for wedge wire sieve screen plate for Filtration screen :

Wedge wire screen is made up of rods and profile wire.The rod can be round wire,triangular wire or trapezoid wire.The profile wire is triangular wire (V-shaped wire).Wedge wire screen has a structure and high open area,as well as accurate slot dimension.At the same time,water well screen have heat-resisting,anti-corrosive,good machine capability,last long,safety and reliability and so on characteristics.It can be used in many kinds of medium filtering.

Application for wedge wire sieve screen plate for Filtration screen :

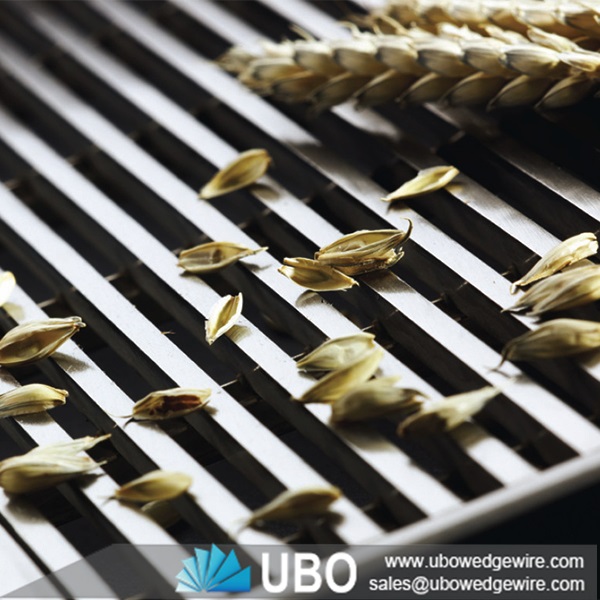

Wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,Many other liquids, solids separation applications.

Advantages for wedge wire sieve screen plate for Filtration screen:

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

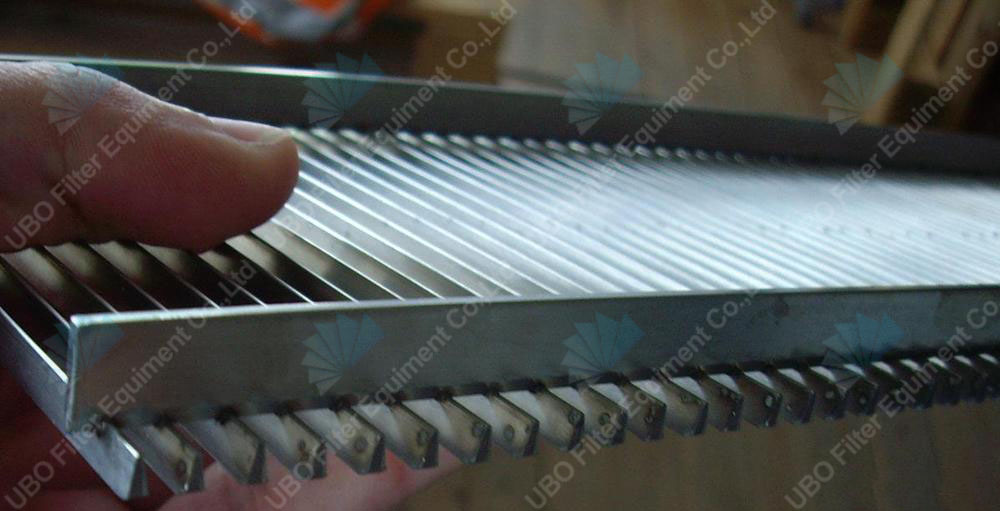

wedge wire sieve screen plate for Filtration screen

The specifications of the wedge wire sieve screen plate for Filtration screen:

wedge wire sieve screen plate for Filtration screen

Surface Profile

W
H

Material

10S

0.75
1.425

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

11SL

10.75
1.8

22S

1.8
3.7

4S

0.45
1.2

50SL

3.4
7.5



Surface Profile
W
H
Material
Q22
2
2.28

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

Q35
3
5
Q53
4
3
D56
4
5.6
D45
3.8
6.0

The Packaging and Transportation of the wedge wire sieve screen plate for Filtration screen:

wedge wire sieve screen plate for Filtration screen
