stainless steel screw press screen

More Views

stainless steel screw press screenstainless steel screw press screenstainless steel screw press screen

stainless steel screw press screen

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen cylinder
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

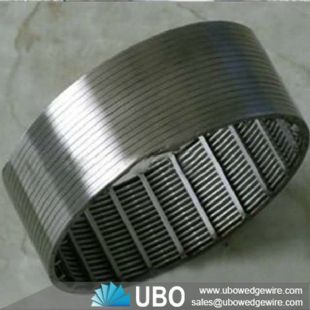

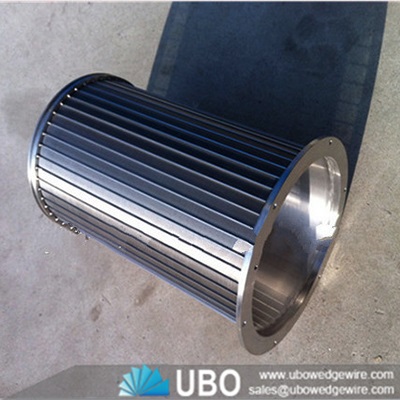

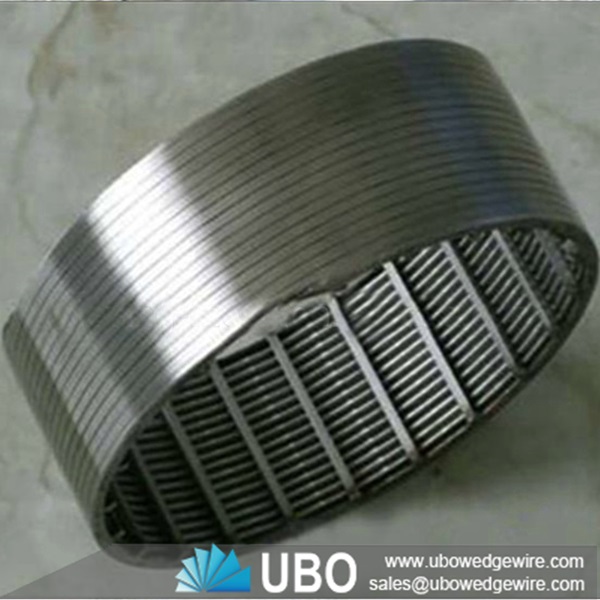

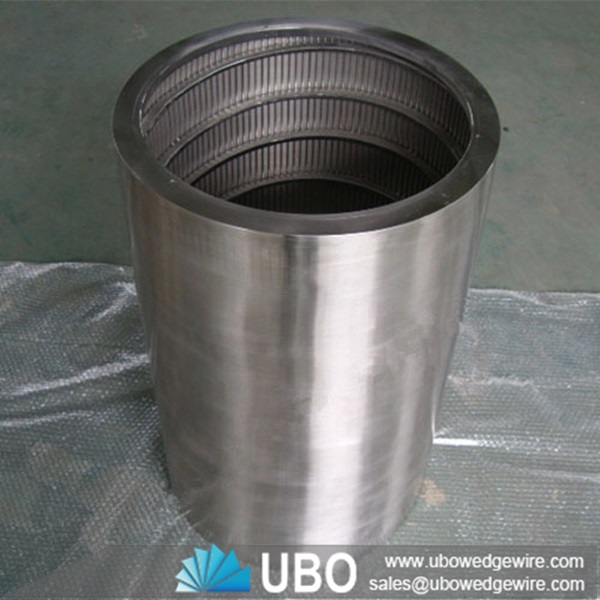

Detailed description of the stainless steel screw press screen

Stainless steel screw press screen is composed of ribs and V—winding wire, manufactured with advanced special welding equipment.Ribs and V—winding wire are connected with resistance weld by special equipment and has the advantages, such as, high welding strength, homogeneous gap, corrosion resistance, large effective filtration area, good permeability,simple structure, and slot size is 20 micron or larger for users to choose freely.

Application of stainless steel screw press screen

1.Architects specify johnson screen for column and wall covers and various decorative appplications;
2.Different kinds and specification of screens are used in moter-pumbed wells and geothermal wells;
3. Johnson screen are used on food processors;
4.pulp and paper plants;
5.Mineral procesors,refiners,waster water treatment and water supply systems.

Features of stainless steel screw press screen

Accurate filtering performance.
High efficiency.
Narrow slot openings.
Normal or high grade type for choice.
Various edge types.
Wide range of diameters for choice.
Special sizes can be customized.
Economical but high grade.
Corrosion resistance.
Rust resistance.
Long service life and durable.

stainless steel screw press screen

The specifications of the stainless steel screw press screen:



stainless steel screw press screen

Material stainless steel 304, 304L, 316, 316L, 321, etc.
Cylinder diameter 25 mm - 1500 mm
Cylinder length 0.3 m, 0.6 m, 1 m, 2 m, 3 m, 6 m and 12 m. Special sizes can be customized
Slot size 0.05 mm - 2.5 mm
Surface profile type triangle wire
Support profile triangle wire, round wire, flat bar or wedge wire

The Packaging and Transportation of the stainless steel screw press screen:

stainless steel screw press screen
