stainless steel rotary screens

More Views

stainless steel rotary screensstainless steel rotary screensstainless steel rotary screens

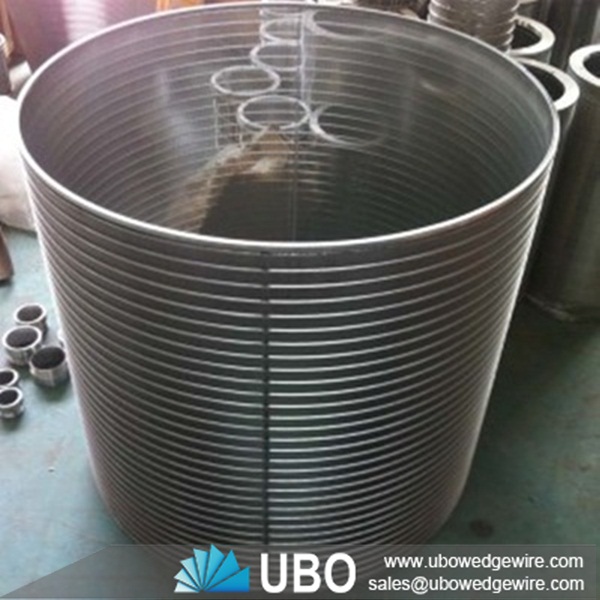

stainless steel rotary screens

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the stainless steel rotary screens

Stainless steel rotary screens are designed to self clean, with wedge wire tubes supporting and reinforcing the structure. Our stainless steel rotary screen and Trommel Screens are produced to work uninterruptedly. This maintains higher efficiency and productivity whilst at the same time minimising energy consumption. Making the benefits of installing Rotary Drums Screens for your waste water screening needs from Gap Technology a definite must.

Application of stainless steel rotary screens

Rotary Drum Screens are used to mechanically separate liquids from solid particles. Gap Technology offer a wide range of Rotary Drum screens and Rotary Wedge Wire Screens / Trommel Screens for industrial waste water screening applications to our large and varied customer base throughout the United Kingdom and across Europe.

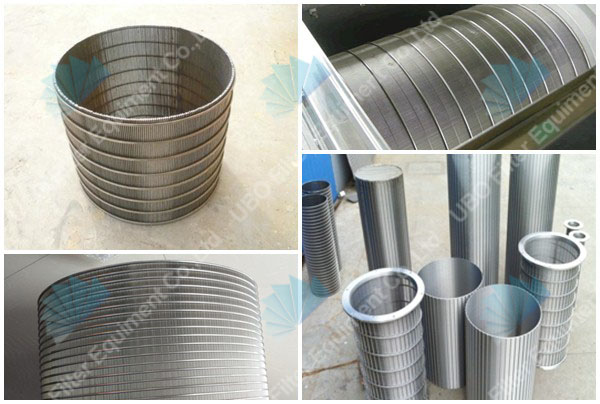

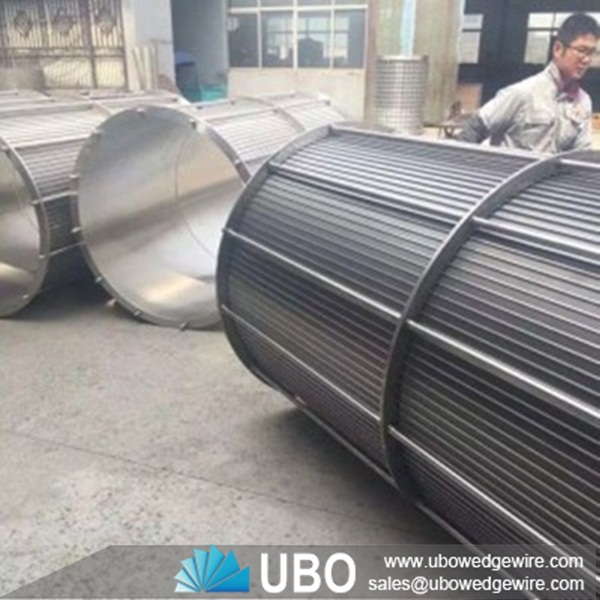

stainless steel rotary screens

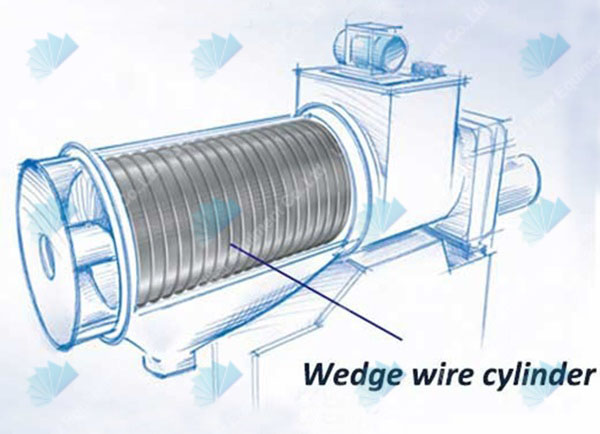

Working Principle of stainless steel rotary screens

GTS Series wedge wire screen drum screen utilize Mechanical method, compose a screen surface by sieve bar form into pore. Classify by its weight 3 joint shaft inside trommel is higher than surface, to push up big size material so as to increase classify rate. And the inclination will help it advance, enter crusher finally. Size smaller pore will down through the pore and acquire the final product.

Features of stainless steel rotary screens

1. High quality products
This character makes sure that you can use it safety and carefully, and our commitment to manufacturing integrity is exemplified by our ISO 9001 certification.
2. High tensile strength
A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.
3. High filter ability
This function can allow more water into the well with high effciency, and can extend the life span of multilayer screen pipe.

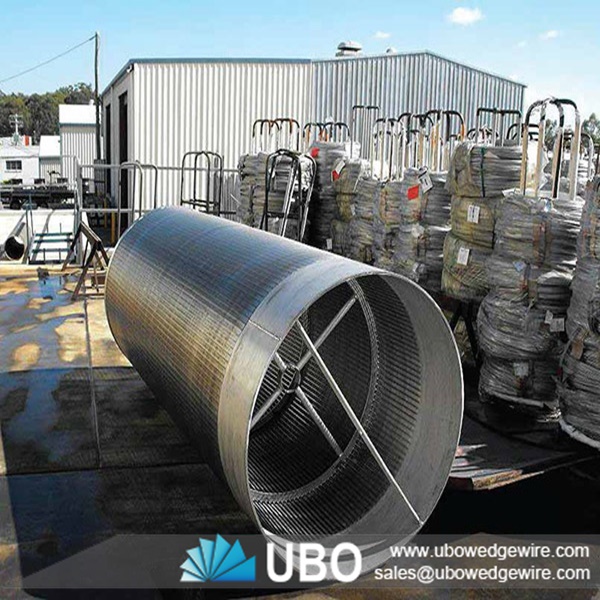

stainless steel rotary screens

The specifications of the stainless steel rotary screens:

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

The Packaging and Transportation of the stainless steel rotary screens:

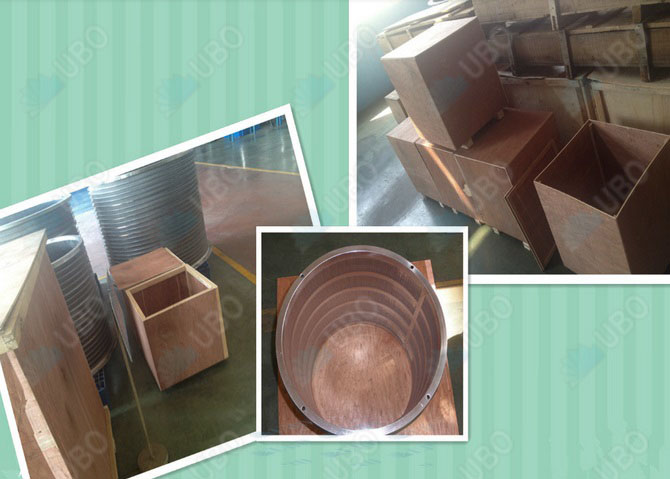

packing

transportation
