Wedge wire slot cylinder

More Views

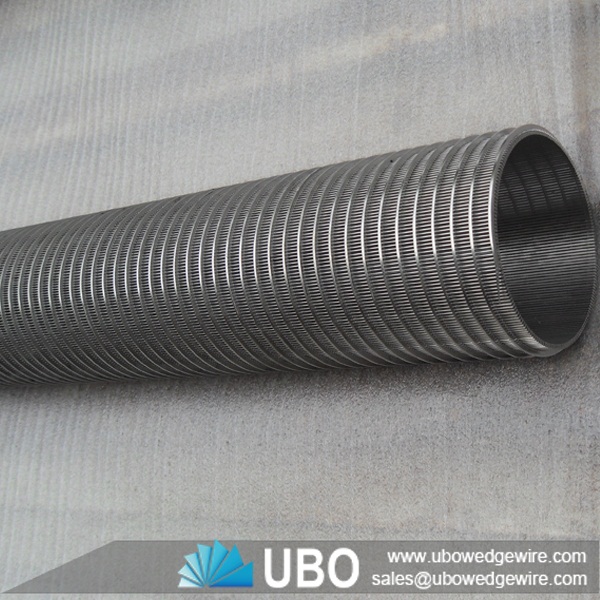

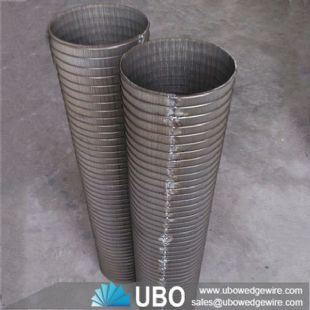

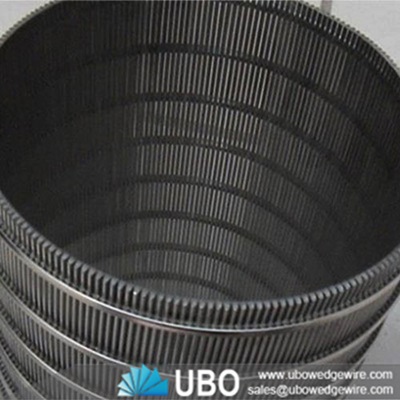

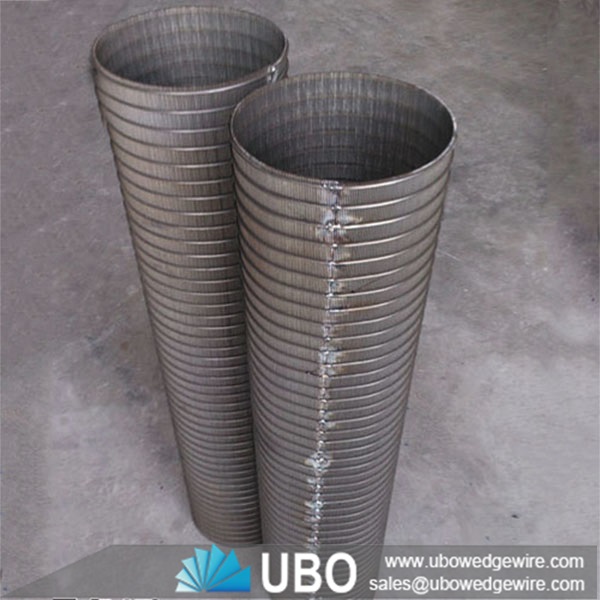

Wedge wire slot cylinderWedge wire slot cylinderWedge wire slot cylinder

Wedge wire slot cylinder

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Cylinder
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge wire slot cylinder

    The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction

Application for Wedge wire slot cylinder:

The water screen is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.

Advantages for Wedge wire slot cylinder:

flatness to within tight tolerances
no weakening of the welds, because of flattening (and no stress corrosion problems as a result)
accurate distance between support profiles
possibility of different support wires in one screen
possibility of variable spacing between support wires in one screen

Constructions for Wedge wire slot cylinder:

A combination of different support profiles and pitches within one flat screen is possible
Variable spacing between support wires in one screen
Curved screens; curve direction and filtration direction are to be determined by the customer.Frames and reinforcements can be designed and calculated on request, provided that we know the temperature, supports and differential pressure.

Wedge wire slot cylinder

The specifications of the Wedge wire slot cylinder:

Wedge wire slot cylinder



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
