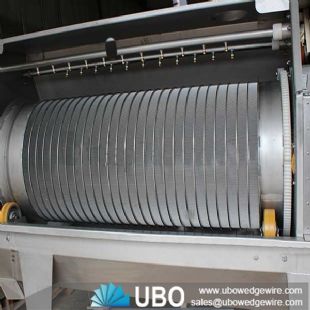

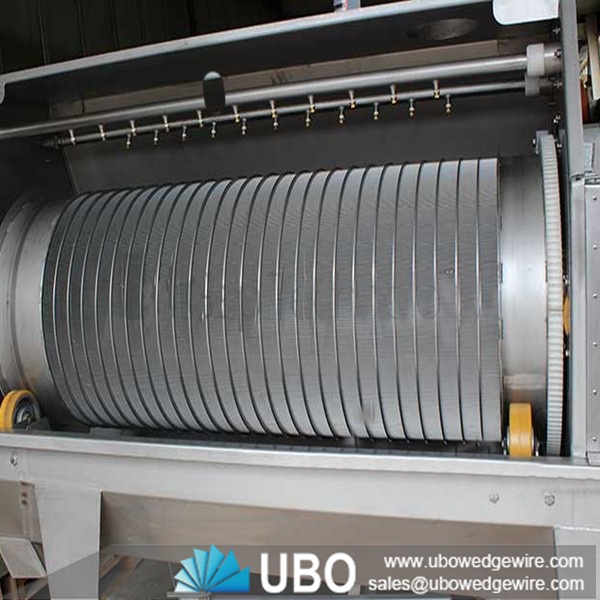

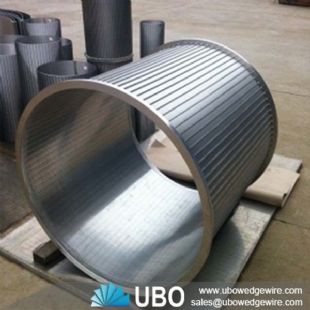

Wedge Wire Bar Rotary Drum Screen

More Views

Wedge Wire Bar Rotary Drum ScreenWedge Wire Bar Rotary Drum ScreenWedge Wire Bar Rotary Drum Screen

Wedge Wire Bar Rotary Drum Screen

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge Wire Bar Rotary Drum Screen

Wedge  wire bar rotary drum screen are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersection point of these wires is fusion welded, with an unique welding process. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. V Wire Screen offers great strength, precision, long service life and a wide range.

Wedge Wire Bar Rotary Drum Screen

Features of Wedge Wire Bar Rotary Drum Screen

The wedge wire bar rotary drum screen provide more sufficient opening than the perforated metal baskets. It is stronger and can bear heavy loading pressure than the woven mesh filter baskets. The wedge wire basket can work with both benefits of the perforated and woven mesh filter elements and avoid the shortcomings. It is stronger, has more aperture and pressure differential levels can be achieved by variety of the slotting. Also it is economic.

Application  of Wedge Wire Bar Rotary Drum Screen

Our products are widely used for wine-making, malting, paper-making, mining, crement-producing, food-processing, oil-refining, painting as well as the industries of cigarette, sugar, foodstuff, noise-sliencer, environmental protection, agricultural machine, chemical industry and pharmacy industry.

Wedge Wire Bar Rotary Drum Screen

The specifications of the Wedge Wire Bar Rotary Drum Screen:

Wedge Wire Bar Rotary Drum Screen

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded coupling

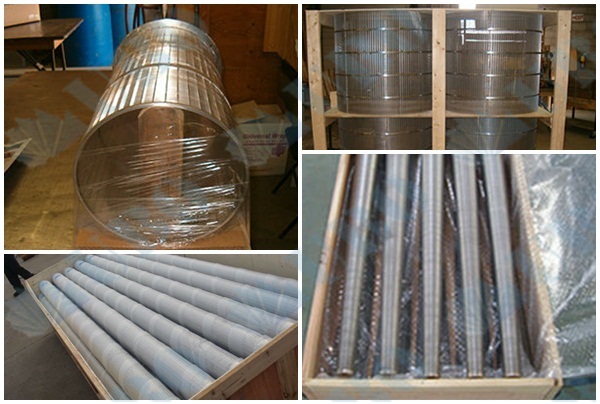

The Packaging and Transportation of the Wedge Wire Bar Rotary Drum Screen:

Wedge Wire Bar Rotary Drum Screen

Wedge Wire Bar Rotary Drum Screen
