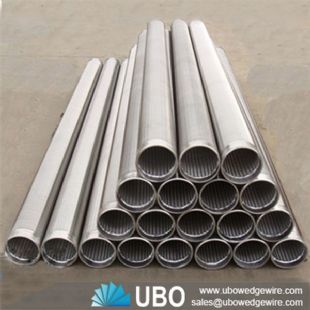

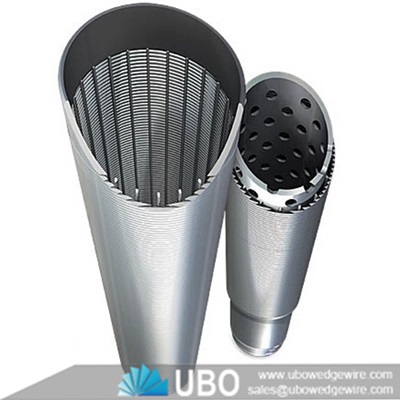

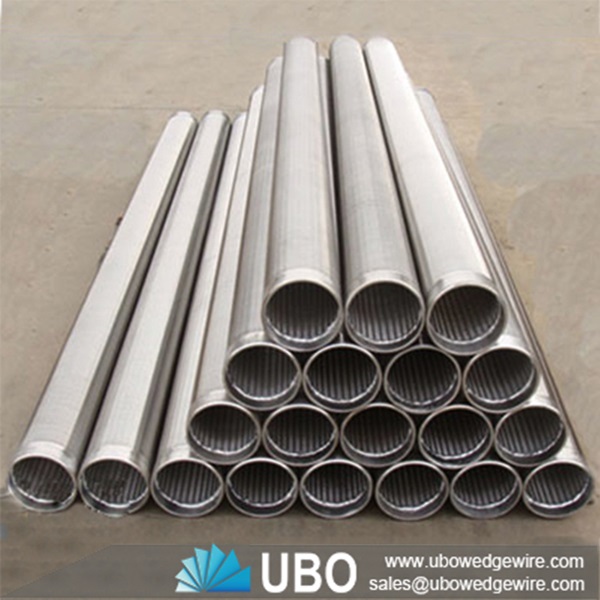

Stainless steel Johnson welded v wire water well screen pipe

More Views

Stainless steel Johnson welded v wire water well screen pipeStainless steel Johnson welded v wire water well screen pipeStainless steel Johnson welded v wire water well screen pipe

Stainless steel Johnson welded v wire water well screen pipe

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless steel Johnson welded v wire water well screen pipe

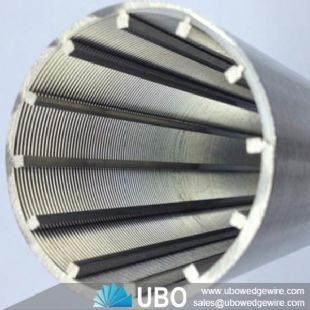

Stainless steel Johnson welded v wire water well screen pipe is made by a v or wedge profile wire around an internal array of longitudinal support rods. Each intersecting point of these wire is fusion welded to form a precise and uniform mesh. Wedgewire profile screen combines superior weld strengths with accurate slots tolerances resulting in a reliable sand control screen applied in well drilling industries. Our stainless steel well screen offers stable structure and good strength, can withstand the pressure and corrosion during the downhole well completion and operation.

Stainless steel Johnson welded v wire water well screen pipe   Stainless steel Johnson welded v wire water well screen pipe

Advantage of Stainless steel Johnson welded v wire water well screen pipe

1. A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone
2. Uninterrupted flow.
3. A uniform and efficient well development due to the continuous slot opening.
4. Good strength, no further support structure needed.

Application of Stainless steel Johnson welded v wire water well screen pipe

The continuous-slot well screen strainer is recommended in the following situations:
Formation comprised of small or fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Small diameter wells

Stainless steel Johnson welded v wire water well screen pipe

Stainless steel Johnson welded v wire water well screen pipe

The specifications of the Stainless steel Johnson welded v wire water well screen pipe:

Materials: Grades of simple stainless steel 304, 316, 304L right up to highly corrosion resistant alloys.

Slot opening: Slot should be bigger than 0.020mm and less that 2500mm long.

Wire shapes and sizes: Custom

Combination of wire and rods: Available to meet the open area and strength requirements for the particular application.

Technical data of 304 316Lstainless steel wedge wire screen

Stainless steel Johnson welded v wire water well screen pipe

No. (mm)TYPE OD (mm)  ID (mm) Support wire Number Filter direction
1 SRD25.4 25.4 18.6 12 FOTI
2 SRD 33 33 24 8 FOTI
3 SRD 37 37 28 8 FOTI
4 SRD 40 40 31 8/10 FOTI/FITO
5 SRD 45 45 36 10/12 FOTI/FITO
6 SRD 48 48 38 12 FOTI/FITO
7 SRD 60 60 51 12 FOTI/FITO
8 SRD 70 70 61 12/18 FOTI/FITO
9 SRD 85 85 76 18 FOTI/FITO
10 SRD 110 110 101 24 FOTI/FITO
11 SRD120 120 111 24 FOTI/FITO

Stainless steel Johnson welded v wire water well screen pipe

The Packaging and Transportation of the Stainless steel Johnson welded v wire water well screen pipe:

Stainless steel Johnson welded v wire water well screen pipe
