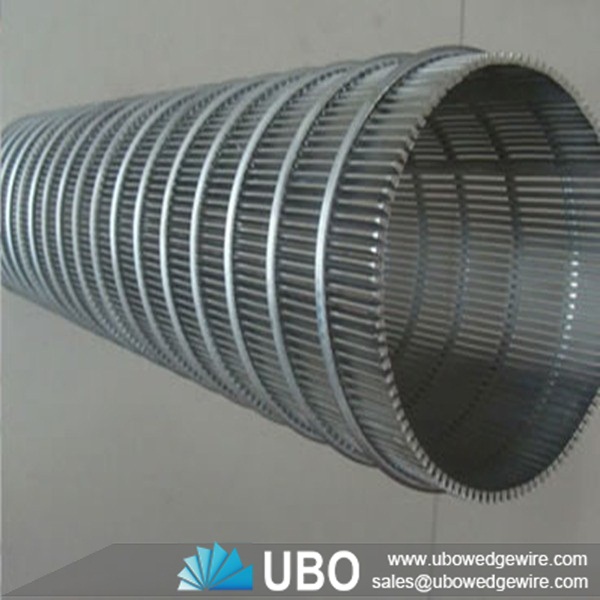

SS cylindrical wedge wire screens

More Views

SS cylindrical wedge wire screens

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

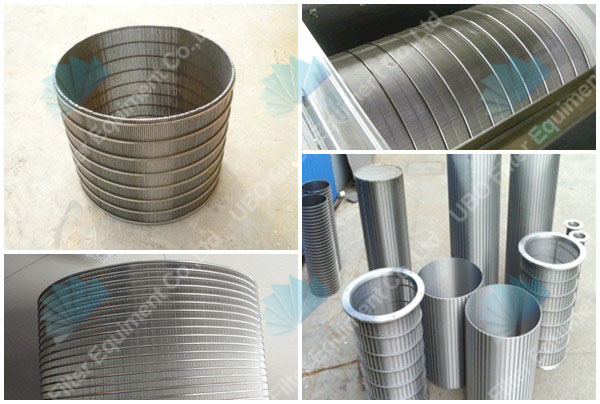

Detailed description of the SS cylindrical wedge wire screens

The SS cylindrical wedge wire screen is similar to the wedge wire screen cylinder and wedge wire screen tube, the wedge wire screen basket is also manufactured from V-shaped profile wires and various support rod. The support rod are resistance welded onto the profile wires to form a firm structure. Wedge wire screen basket has a narrow top and a wide bottom, which is suitable for various centrifuge machines.

SS cylindrical wedge wire screen is a very important component of centrifugal liners. The wedge wire screen basket commonly has flange on the bottom or top. It is connected to the machine by bolt and nuts. Sometimes, there are flanges on both the top and bottom of the wedge wire screen basket.

SS cylindrical <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a>s

Features of SS cylindrical wedge wire screens

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
Avoids clogging and ensures uninterrupted flow.
Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.
Styles of connection: Flange

Application of SS cylindrical wedge wire screens

Be suitable for all kinds pressure screen in pulp making system and paper making system.
Our pressure screen basket or drum has been exported to India, Bangladesh, Iran and other countries. All the customers satisfy with our products with a high quality and competitive price. We also can produce the products according to your detailed requirements with drawings.

Characteristics of SS cylindrical wedge wire screens

High weld strength
Higher accuracy and consistency of wire gap
Lower surface roughness
Single piece cylinder construction (As opposed to welded patched cylinders)
Axially-seamless cylinder construction

SS cylindrical <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a>s

The specifications of the SS cylindrical wedge wire screens:

SS cylindrical <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a>s

SS Wedge Wire Screen Cylinders Basket

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Diameter ranging

from 1 inch -----45 inch.

Length:

lengths up to 6 meters.

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Flange:according to your request

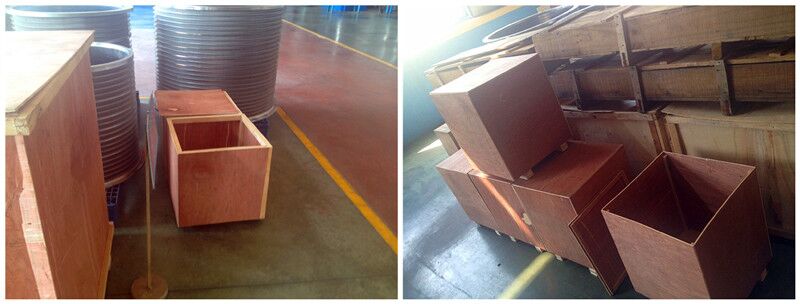

The Packaging and Transportation of the SS cylindrical wedge wire screens:

packing

transportation
