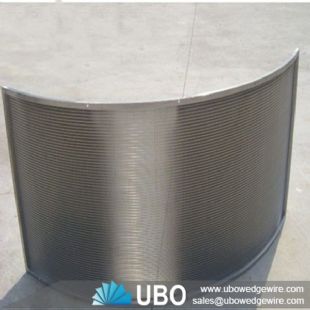

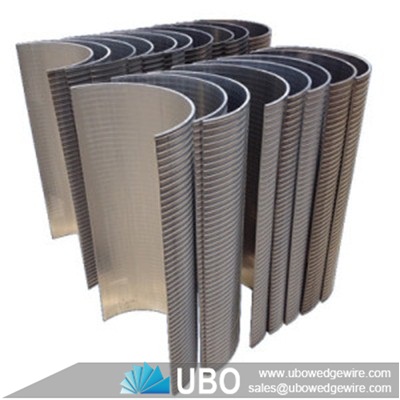

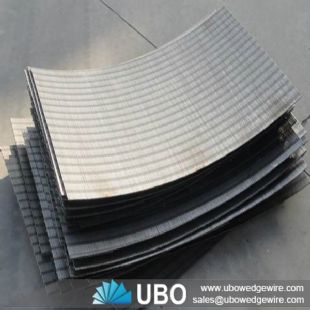

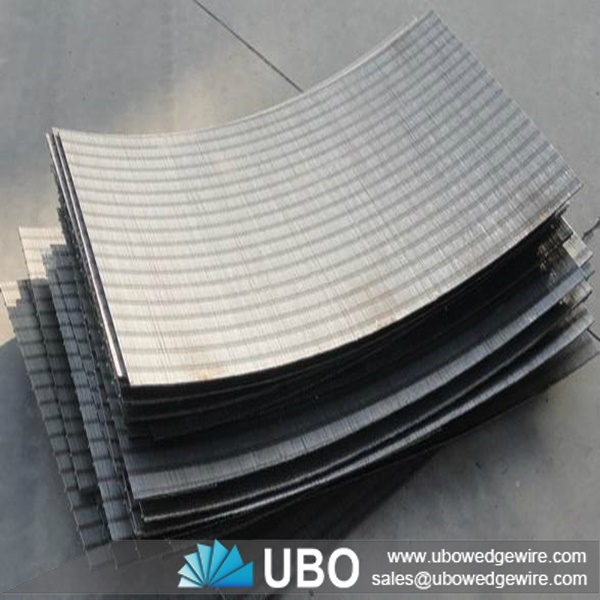

Wedge wire parabolic screen panel for Aquaculture

More Views

Wedge wire parabolic screen panel for AquacultureWedge wire parabolic screen panel for AquacultureWedge wire parabolic screen panel for Aquaculture

Wedge wire parabolic screen panel for Aquaculture

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge wire parabolic screen panel for Aquaculture

Wedge wire parabolic screen panel has a greater screeing capactity than a flat screen due to forces exerted as material flows against the curved surface.

This wedge wire parabolic screen panel is mounted in a frame with the screen openings perpendicular to the flow.
In a typical feed situation,the leading edge of the wedge wire removes the water and fine particles through the over sized particles move across the top of the screen.

Separeation size in considerably smaller than screen openings,usually about one-half the opening size.
Sieve bend screens are ideal for sizing and dewatering applications in liquid/solid separation situations.It is extensively used for fine fiber removal in the starch industry.It also is used in other industries such as food processing waste water cleanup and corn wet milling.

Wedge wire parabolic screen panel for Aquaculture

Advantages of Wedge wire parabolic screen panel for Aquaculture

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

Application of Wedge wire parabolic screen panel for Aquaculture

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
Used for fiber removal in Starch industry.

Wedge wire parabolic screen panel for Aquaculture

The specifications of the Wedge wire parabolic screen panel for Aquaculture:

Wedge wire parabolic screen panel for Aquaculture

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

1.5 meter

Width

from 25mm to 1200mm.

Radian

120º

End connection

Plain beveled ends, flanged or threaded couplings

The Packaging and Transportation of the Wedge wire parabolic screen panel for Aquaculture:

Wedge wire parabolic screen panel for Aquaculture

Orders and Returns

If you are interested in receiving more information or have a question regarding any of our products. Please fill out the form below and we will contact you within 24-48 hours.

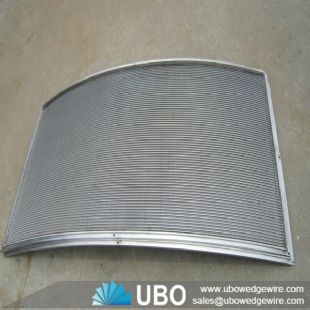

You may also be interested in the following product(s)
