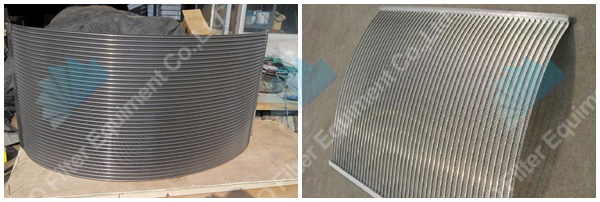

Stainless Steel Wedge Wire Sieve Bend Screen Side Hill Panel

More Views

Stainless Steel Wedge Wire Sieve Bend Screen Side Hill PanelStainless Steel Wedge Wire Sieve Bend Screen Side Hill PanelStainless Steel Wedge Wire Sieve Bend Screen Side Hill Panel

Stainless Steel Wedge Wire Sieve Bend Screen Side Hill Panel

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve bend screen panel
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless Steel Wedge Wire Sieve Bend Screen Side Hill Panel

Stainless Steel Wedge Wire Sieve Bend Screen Side Hill Panel has a greater screeing capactity than a flat screen due to forces exerted as material flows against the curved surface.

This Stainless Steel Wedge Wire Sieve Bend Screen Side Hill Panel is mounted in a frame with the screen openings perpendicular to the flow.
In a typical feed situation,the leading edge of the wedge wire removes the water and fine particles through the over sized particles move across the top of the screen.

Separeation size in considerably smaller than screen openings,usually about one-half the opening size.
Sieve bend screens are ideal for sizing and dewatering applications in liquid/solid separation situations.It is extensively used for fine fiber removal in the starch industry.It also is used in other industries such as food processing waste water cleanup and corn wet milling.

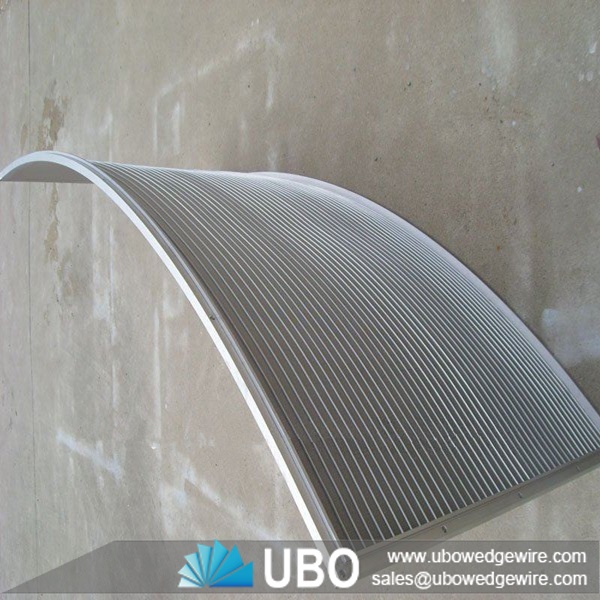

Stainless Steel Wedge Wire Sieve Bend Screen Side Hill Panel

Advantages of Stainless Steel Wedge Wire Sieve Bend Screen Side Hill Panel

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

Uses of Stainless Steel Wedge Wire Sieve Bend Screen Side Hill Panel

It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

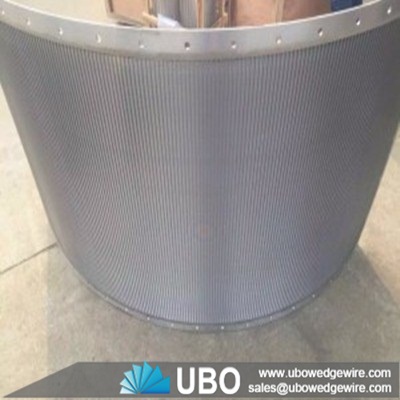

Stainless Steel Wedge Wire Sieve Bend Screen Side Hill Panel

The specifications of the Stainless Steel Wedge Wire Sieve Bend Screen Side Hill Panel:

Stainless Steel Wedge Wire Sieve Bend Screen Side Hill Panel



Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

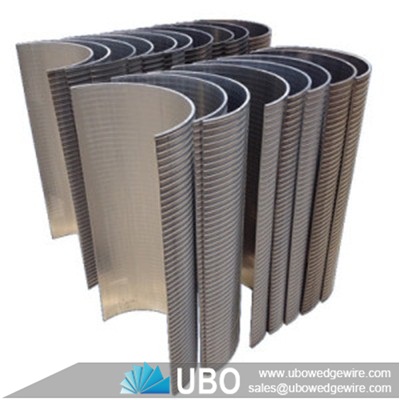

Stainless Steel Wedge Wire Sieve Bend Screen Side Hill Panel

The Packaging and Transportation of the Stainless Steel Wedge Wire Sieve Bend Screen Side Hill Panel:

Stainless Steel Wedge Wire Sieve Bend Screen Side Hill Panel
