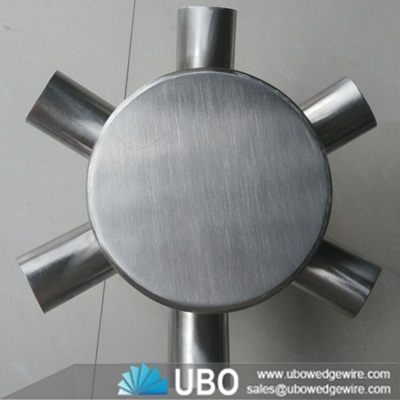

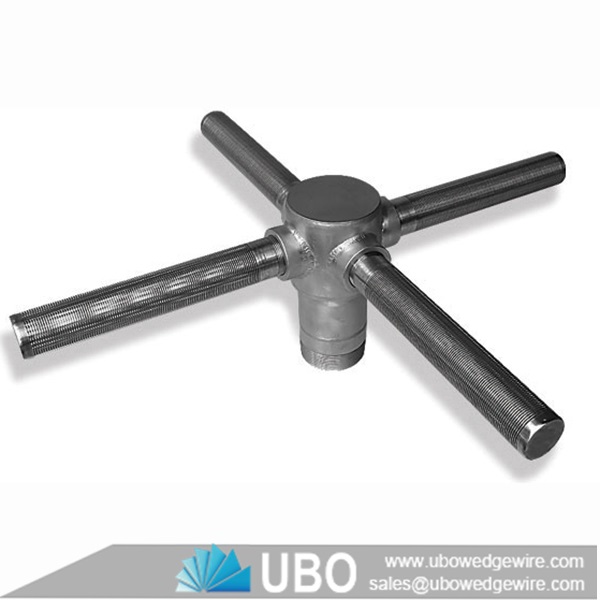

Stainless steel hub and header lateral screen for Anion Resins

More Views

Stainless steel hub and header lateral screen for Anion ResinsStainless steel hub and header lateral screen for Anion ResinsStainless steel hub and header lateral screen for Anion Resins

Stainless steel hub and header lateral screen for Anion Resins

Category:Profile screen laterals
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Profile screen laterals
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless steel hub and header lateral screen for Anion Resins

A Resin Trap / Strainer is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

Application for Stainless steel hub and header lateral screen for Anion Resins:

They are widely used for water, oil and gas wells in the world. As China chief manufacturer and exporter, we export good quality water well screen to many countries. Main products cover bridge slot screen, wire wrapped well screen, stainless steel Johnson screen, water well screen, wedge wire screen, sieve bend screen, Johnson tube and sand control screen. In addition, we also offer perforated pipes and base pipes for well screen and Johnson screen.

Features for Stainless steel hub and header lateral screen for Anion Resins:

High open area.
High filtering and screening performance.
Various ending types.
Temperature resistance.
Corrosion and rust resistance.
Non-clogging.
Easy to install and replace.
Low maintenance cost.
Durable and long service life.
Suit different application.

Advantage for Stainless steel hub and header lateral screen for Anion Resins:

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

Stainless steel hub and header lateral screen for Anion Resins

The specifications of the Stainless steel hub and header lateral screen for Anion Resins:

Stainless steel hub and header lateral screen for Anion Resins



No.

(mm)TYPE

OD

(mm)

ID

(mm)

Support wire Number

Filter direction

1

SRD 40

40

31

8/10

FOTI/FITO

2

SRD 45

45

36

10/12

FOTI/FITO

3

SRD 48

48

38

12

FOTI/FITO

4

SRD 60

60

51

12

FOTI/FITO

5

SRD 70

70

61

12/18

FOTI/FITO

6

SRD 85

85

76

18

FOTI/FITO

7

SRD 110

110

101

24

FOTI/FITO

8

SRD120

120

111

24

FOTI/FITO

Remarks:
1.   Make high precision wedge wire screen with different material according to user requirements.
2.   high precision wedge wire screen' should be bigger than 0.020mm slot and less that 2500mm long.

The Packaging and Transportation of the Stainless steel hub and header lateral screen for Anion Resins:

Stainless steel hub and header lateral screen for Anion Resins
