Wedge Wire Wedge Wire Sand Control Filter Nozzles
Category: | Filter Nozzle |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen nozzle |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge Wire Wedge Wire Sand Control Filter Nozzles

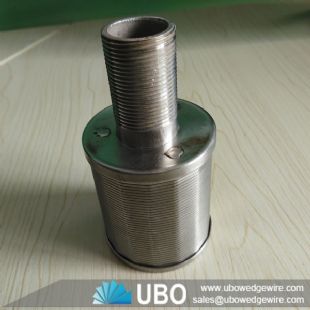

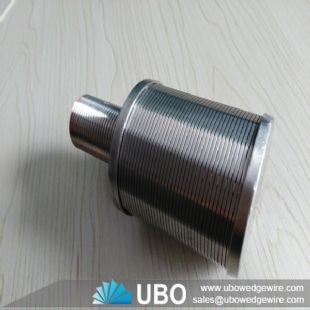

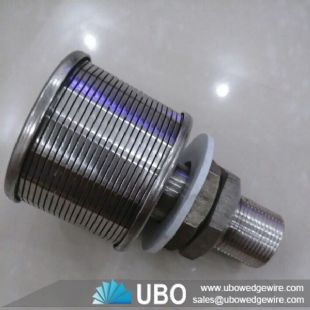

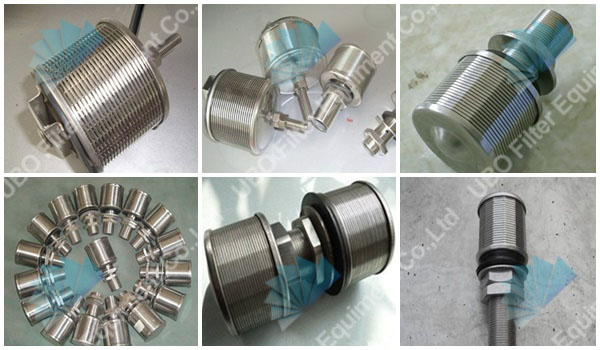

Wedge Wire wedge wire sand control filter nozzles are manufactured from stainless steel material or other alloy material. The Wedge Wire wedge wire sand control filter nozzle features non-clogging, high filtering efficiency and economical. It has a wide range of applications in water treatment applications. The different wedge wire sizes and slot sizes can suit different class filtration. Continuous slot design make it high efficiency and long service life.
Advantages of Wedge Wire Wedge Wire Sand Control Filter Nozzles
-- Type 316L stainless steel construction.
-- Continuous slot design provides increased open area for better collection.
-- Standard slot opening is 0.007" (0.18 mm), suitable for 40 to 50 mesh size media. Other slot sizes are also available.
-- Wedge wire screen is highly resistant to plugging.
-- Choice of either ¾" NPT or 1" NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
Application of Wedge Wire Wedge Wire Sand Control Filter Nozzles
The wedge wire structure nozzle strainers / sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

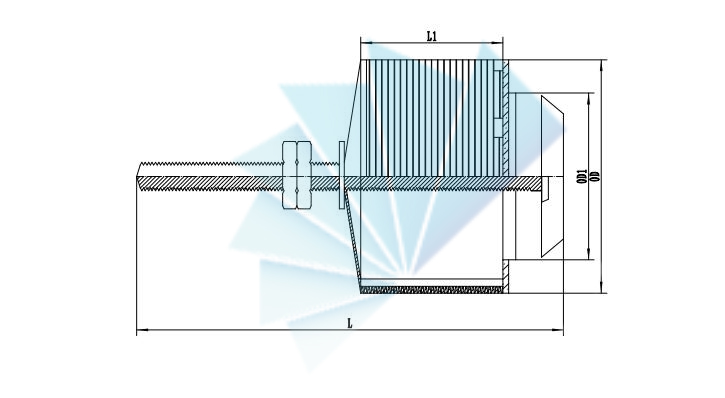

Specifications of Wedge Wire Wedge Wire Sand Control Filter Nozzles:
- Material:stainless steel
- Connector:3/4'' NPT or as your special requirement
|
(mm)TYPE |
OD |
ID |
Support wire Number |
Filter direction |
1 |
SRD25.4 |
25.4 |
18.6 |
12 |
FOTI |
2 |
SRD 33 |
33 |
24 |
8 |
FOTI |
3 |
SRD 37 |
37 |
28 |
8 |
FOTI |
4 |
SRD 40 |
40 |
31 |
8/10 |
FOTI/FITO |
5 |
SRD 45 |
45 |
36 |
10/12 |
FOTI/FITO |
6 |
SRD 48 |
48 |
38 |
12 |
FOTI/FITO |
7 |
SRD 60 |
60 |
51 |
12 |
FOTI/FITO |
8 |
SRD 70 |
70 |
61 |
12/18 |
FOTI/FITO |
9 |
SRD 85 |
85 |
76 |
18 |
FOTI/FITO |
Packaging and Transportation of Wedge Wire Wedge Wire Sand Control Filter Nozzles:
