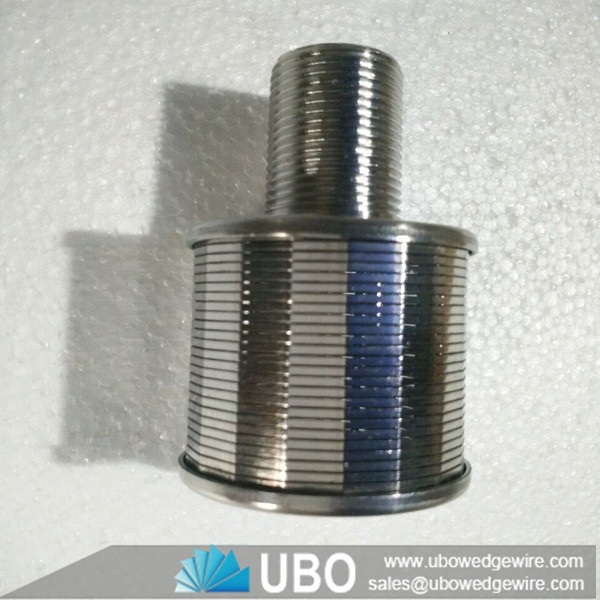

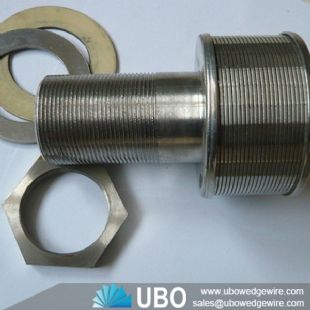

SS Wedge Wire Screen Filter Nozzle
Category: | Filter Nozzle |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen nozzle |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of SS Wedge Wire Screen Filter Nozzle
UBO supply high quality Filer Filter Nozzle, Cylinder Filter Nozzle, and tower packings/fillings for waste water treatment,

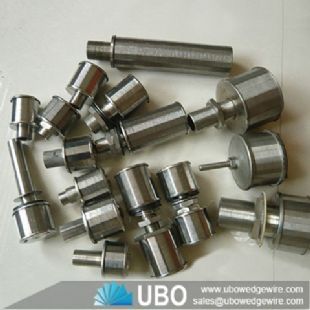

UBO has a wide selection of SS wedge wire screen filter nozzle which are available with the following configurations. Vertical slot filter nozzles, horizontal slot filter nozzles, intermediate plate nozzles, long or extra long stem nozzles with quick fit or standard fitting accessories, which can be used for many different applications. These include Water Treatment Plants (WTP) for producing drinking water; Sewerage Treatment Plants (STP) and other urban and industrial waste water treatment plants. There are also filters and collectors for swimming pools.
We supply high quality various specifications Sand Filter Nozzle, Cylinder Filter Nozzle,filter nozzles and tower packings/fillings for waste water treatment.
Filter Nozzle, Cylinder filter nozzle,tower packing for waste water treatment, and Sand filter.
Application of SS Wedge Wire Screen Filter Nozzle
Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.
Advantages of SS Wedge Wire Screen Filter Nozzle
1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.
Specifications of SS Wedge Wire Screen Filter Nozzle:
Type |
Slot |
Dimension |
Flow area |
||||
D |
H |
L |
M |
L1 |
|||
A |
0.2mm |
Φ45 |
35 |
150 |
M24 |
Decided by the perforated plate thickness |
330m3 |
A1 |
0.2mm |
Φ45 |
40 |
160 |
M24 |
400m3 |
|
B |
0.2mm |
Φ53 |
45 |
160 |
M24 |
500m3 |
|
B1 |
0.2mm |
Φ53 |
45 |
160 |
M32 |
600m3 |
|
B2 |
0.2mm |
Φ53 |
50 |
170 |
M32 |
650m3 |
|
C |
0.2mm |
Φ57 |
45 |
160 |
M32 |
630m3 |
|
C1 |
0.2mm |
Φ57 |
50 |
170 |
M32 |
780m3 |
|
C2 |
0.2mm |
Φ57 |
55 |
180 |
M32 |
850m3 |
