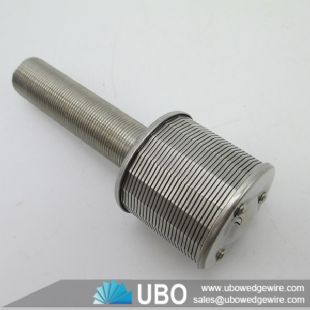

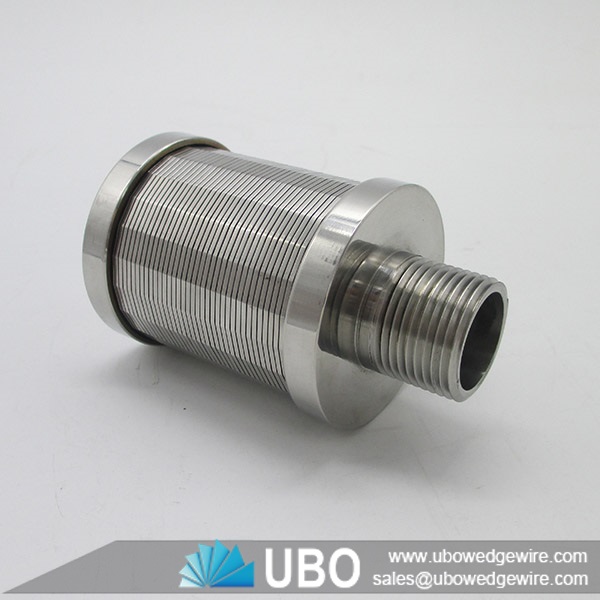

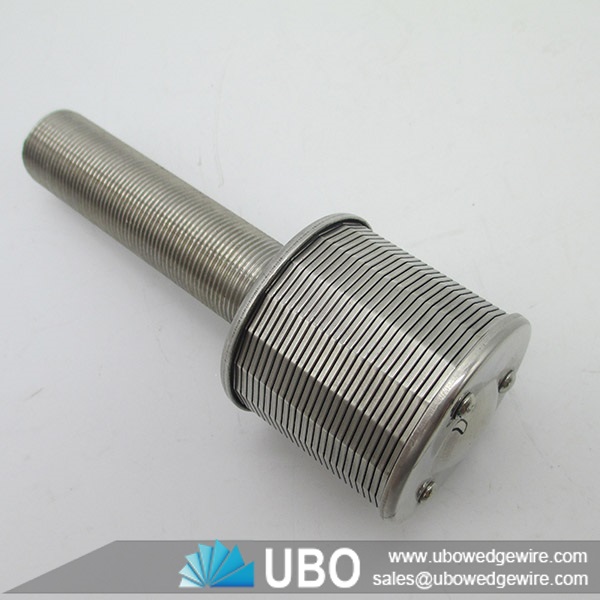

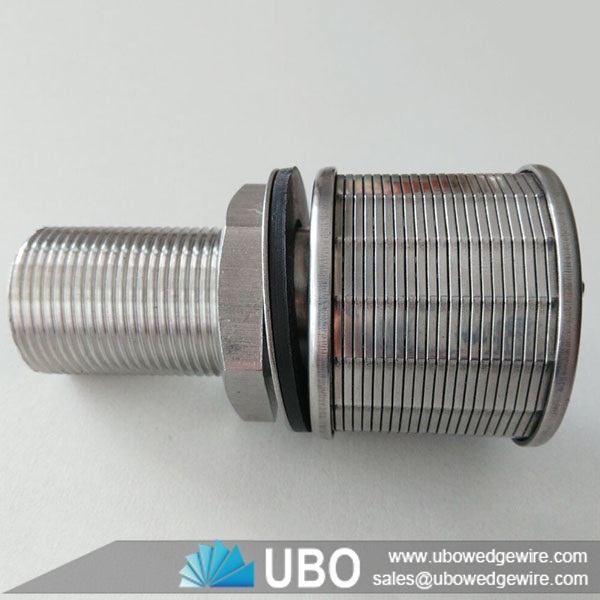

High pressure wedge v shape wire sand filter nozzles strainer

More Views

High pressure wedge v shape wire sand filter nozzles strainerHigh pressure wedge v shape wire sand filter nozzles strainerHigh pressure wedge v shape wire sand filter nozzles strainer

High pressure wedge v shape wire sand filter nozzles strainer

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the High pressure wedge v shape wire sand filter nozzles strainer

High pressure wedge v shape wire sand filter nozzles strainer consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded,so it has sturdy constriction and good mechanical property.
The V-shape section plane can avoid blockage,and make sure of the unimpeded water. The consecutive slot have more open area,and it can reduce the speed of the water entering to aviod the sand entering the screen under the great pressure,so Continuous Slot Wire Johnson Screen can filter sand better.

High pressure wedge v shape wire sand filter nozzles strainer

Application of High pressure wedge v shape wire sand filter nozzles strainer

The wedge wire wrapped screen softening nozzle water processing nozzle filter can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. It can be widely used in in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry. Also it can replace the Polypropylene ( PP ) filter, sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

High pressure wedge v shape wire sand filter nozzles strainer

High pressure wedge v shape wire sand filter nozzles strainer

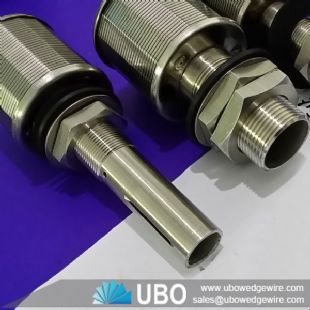

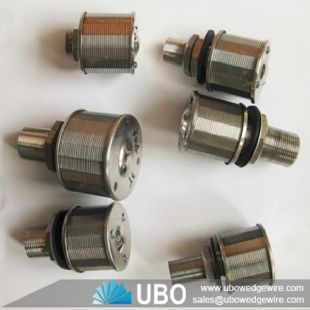

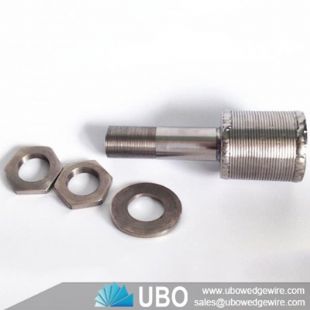

Other type filter nozzles

High pressure wedge v shape wire sand filter nozzles strainer

The specifications of the High pressure wedge v shape wire sand filter nozzles strainer:

High pressure wedge v shape wire sand filter nozzles strainer

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

The Packaging and Transportation of the High pressure wedge v shape wire sand filter nozzles strainer:
