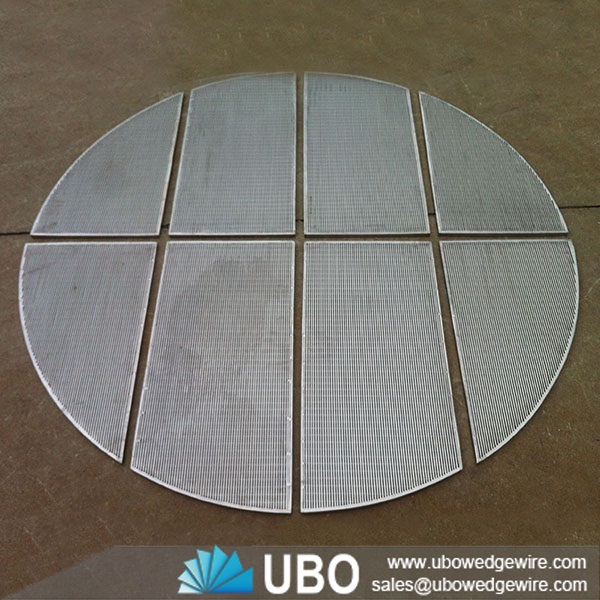

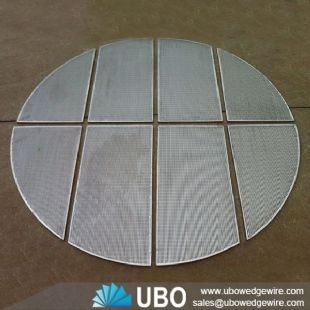

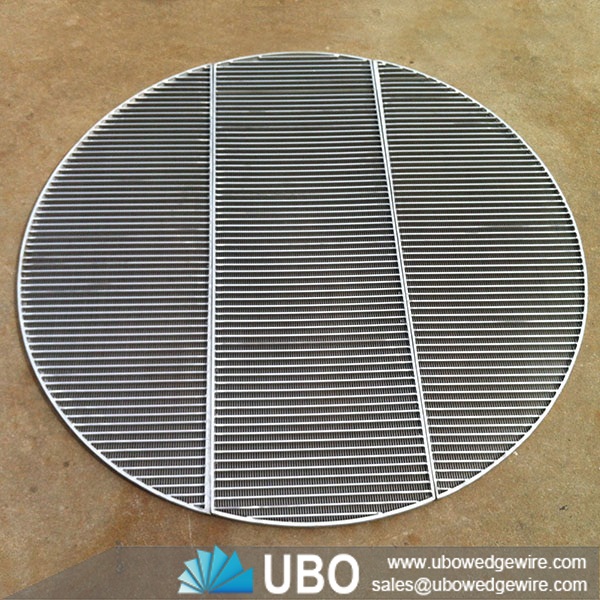

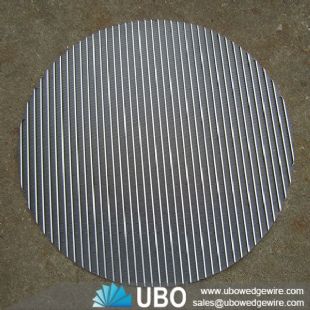

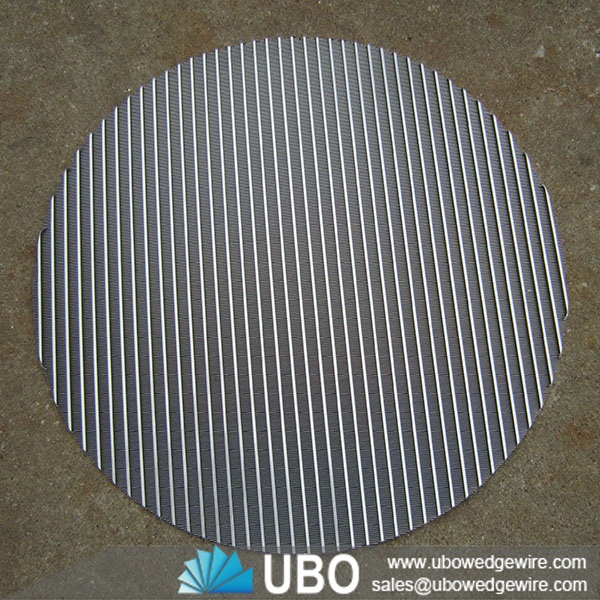

Stainless steel wedge wire lauter tun screen

In modern brewing systems, efficient separation between wort and grain is essential for maintaining consistent beer quality and improving production efficiency. A stainless steel wedge wire lauter tun screen serves as a critical filtration component installed at the bottom of a lauter tun, helping separate liquid wort from solid grain particles during the lautering process.

Compared with traditional perforated plates or mesh screens, wedge wire lauter tun screens provide a continuous slot design, high open area, excellent mechanical strength, and improved resistance to clogging. These advantages make them widely used in breweries requiring stable filtration performance and long service life.

UBO Wedge Wire manufactures customized stainless steel lauter tun screens according to different brewery equipment designs, slot size requirements, and processing conditions.

What Is a Wedge Wire Lauter Tun Screen?

A wedge wire lauter tun screen is a specially designed stainless steel screening component used as a false bottom in brewing vessels. It consists of precisely welded wedge-shaped profile wires and supporting rods.

During the lautering process, the screen allows liquid wort to pass through while retaining grain particles on the surface. The filtered wort can then be collected efficiently while maintaining a stable grain bed.

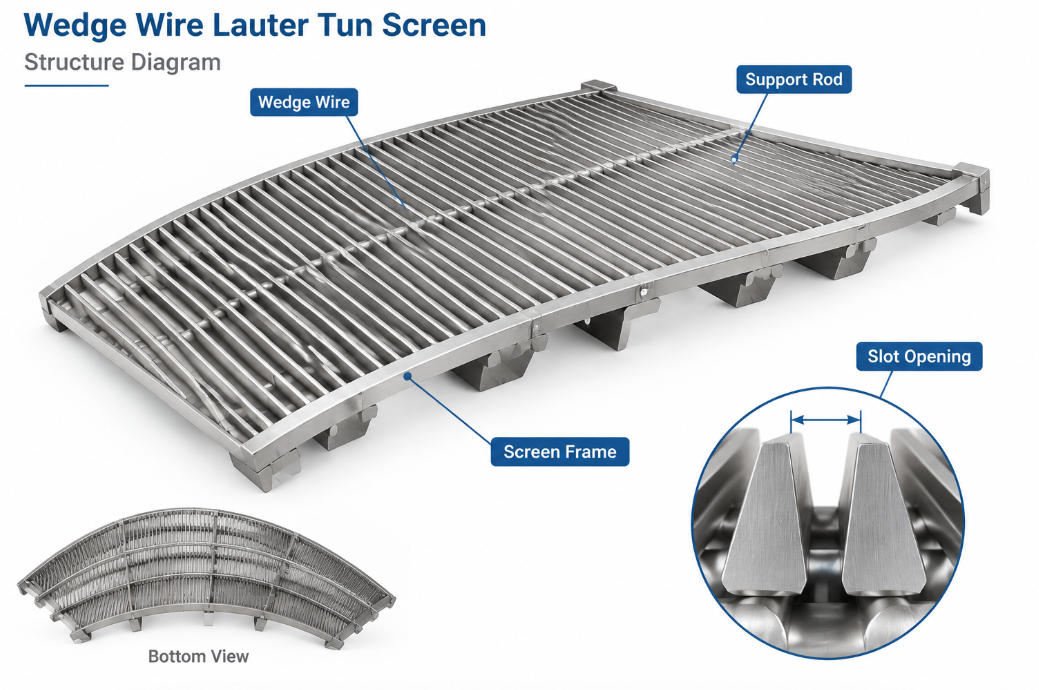

The main components include:

• V-shaped wedge wires – form continuous filtration slots

• Support rods – provide structural strength and load-bearing capability

• Screen panels or curved sections – match different lauter tun designs

The V-shaped slot structure creates a wider opening toward the inside of the screen, helping reduce particle blockage and improving cleaning performance.

How Does a Stainless Steel Lauter Tun Screen Work?

During brewing, crushed malt is mixed with hot water inside the lauter tun to create a mash. After conversion, the lautering process separates the liquid wort from the remaining grain material.

The working process includes:

1. Grain Bed Formation

The crushed grain settles above the lauter tun screen and forms a natural filtration layer.

2. Wort Flow Through Screen Slots

The liquid wort flows downward through the precisely designed wedge wire openings, while grain particles remain above the screen surface.

3. Efficient Liquid Collection

The filtered wort is collected below the screen and transferred to the next brewing stage.

The slot opening design is critical because it determines the balance between:

• Wort flow rate

• Grain retention

• Filtration efficiency

• Cleaning requirements

Why Use Wedge Wire Screens for Lauter Tun False Bottoms?

1. High Open Area for Better Wort Flow

The continuous wedge wire structure provides a larger open area compared with traditional drilled plates.

Benefits include:

• Improved liquid flow

• Reduced resistance

• More efficient lautering performance

A higher open area helps breweries maintain stable production efficiency without increasing filtration pressure.

2. Excellent Anti-Clogging Performance

One common challenge in brewing filtration is screen blockage caused by fine grain particles.

The V-shaped slot design helps prevent particles from becoming trapped inside the openings because the slot becomes wider internally.

This provides:

• Easier cleaning

• Reduced maintenance frequency

• More stable operation

3. Strong Mechanical Structure

During operation, the lauter tun screen must support the weight of the grain bed and withstand repeated cleaning cycles.

Stainless steel wedge wire construction provides:

• High mechanical strength

• Good deformation resistance

• Long service life

This makes it suitable for both small craft breweries and large-scale industrial brewing systems.

4. Hygienic Stainless Steel Material

Stainless steel is widely used in brewing equipment because it provides:

• Corrosion resistance

• Easy cleaning

• Smooth surface finish

• Compatibility with food processing requirements

Common material options include stainless steel grades suitable for different brewery environments.

Slot Size Selection for Lauter Tun Screens

Selecting the correct slot size is one of the most important factors affecting lauter tun performance.

A suitable slot opening should consider:

• Malt particle size

• Grain bed structure

• Required filtration speed

• Wort clarity requirements

A slot that is too small may restrict flow and increase cleaning requirements.

A slot that is too large may allow unwanted grain particles to pass through.

Therefore, the ideal slot size should achieve a balance between:

• Effective grain retention

• High wort recovery

• Stable filtration performance

UBO Wedge Wire can customize slot openings according to specific brewing applications and equipment requirements.

Applications of Stainless Steel Lauter Tun Screens

Wedge wire lauter tun screens are commonly used in:

Craft Breweries

Suitable for:

• Small batch brewing

• Flexible production requirements

• Custom equipment designs

Industrial Breweries

Used for:

• Large-scale wort separation

• Continuous brewing operations

• High-volume production

Other Food Processing Applications

The wedge wire filtration principle is also suitable for applications requiring:

• Solid-liquid separation

• Hygienic processing

• Precise particle retention

Custom Manufacturing Options

Different breweries may require different screen configurations. UBO Wedge Wire provides customized solutions including:

• Stainless steel material selection

• Slot opening customization

• Screen panel dimensions

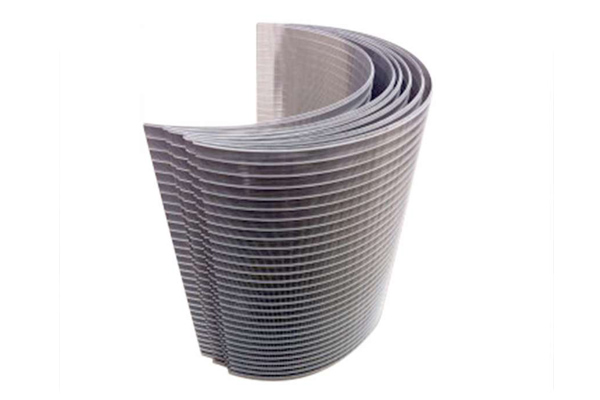

• Curved or flat screen designs

• Edge frame designs

• Connection methods

Customized manufacturing ensures the screen matches the structure and operating conditions of the lauter tun system.

How to Choose the Right Lauter Tun Screen?

When selecting a stainless steel wedge wire lauter tun screen, consider the following factors:

1. Equipment Dimensions

The screen size should match the lauter tun diameter and installation structure.

2. Brewing Process Requirements

Different brewing processes may require different filtration performance.

3. Material Selection

Choose suitable stainless steel grades according to cleaning chemicals and operating conditions.

4. Slot Size Design

The slot opening should balance grain retention and wort flow capacity.

5. Manufacturing Quality

High-quality welding and precise fabrication directly affect screen durability.

Frequently Asked Questions

What is the purpose of a lauter tun screen?

A lauter tun screen separates liquid wort from solid grain particles during brewing while allowing efficient liquid collection.

Why are wedge wire screens used in breweries?

Wedge wire screens provide high open area, excellent flow performance, strong mechanical structure, and reduced clogging compared with traditional screening methods.

What slot size is suitable for a lauter tun screen?

The suitable slot size depends on malt characteristics, brewing process requirements, and desired filtration performance. Customized slot selection is recommended for different applications.

Can stainless steel lauter tun screens be customized?

Yes. Stainless steel wedge wire lauter tun screens can be customized in terms of size, slot opening, material, and installation design.

A stainless steel wedge wire lauter tun screen plays an important role in achieving efficient wort separation and stable brewing performance. Its continuous V-shaped slot structure provides excellent flow characteristics, anti-clogging performance, and long-term durability.

Compared with traditional filtration plates, wedge wire false bottom screens offer breweries a more reliable solution for improving filtration efficiency and reducing maintenance requirements.

By selecting the correct slot size, material, and screen design, breweries can achieve better wort recovery, consistent product quality, and improved production efficiency.
