wedge ve wire fasel bottom lauter tun screen plate for beer brewry

More Views

wedge ve wire fasel bottom lauter tun screen plate for beer brewrywedge ve wire fasel bottom lauter tun screen plate for beer brewrywedge ve wire fasel bottom lauter tun screen plate for beer brewry

wedge ve wire fasel bottom lauter tun screen plate for beer brewry

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:lauter tun screen plate
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the wedge ve wire fasel bottom lauter tun screen plate for beer brewry

Wedge ve wire fasel bottom lauter tun screen plate for beer brewry consist of V shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.

wedge ve wire fasel bottom lauter tun screen plate for beer brewry

wedge ve wire fasel bottom lauter tun screen plate for beer brewry



Characteristic of wedge ve wire fasel bottom lauter tun screen plate for beer brewry

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles.

Application of wedge ve wire fasel bottom lauter tun screen plate for beer brewry

The wedge ve wire fasel bottom lauter tun screen plate can be parts of deep well pumps or submersible pumps; can be used for water treatment equipment, environment protection, the sea water desalination, water softening treatment, oil and chemical processing; terminal filtration for petroleum products, filtration for chemical acid and soda liquid, for alcohol and other organic solvents recycle filtration.



wedge ve wire fasel bottom lauter tun screen plate for beer brewry

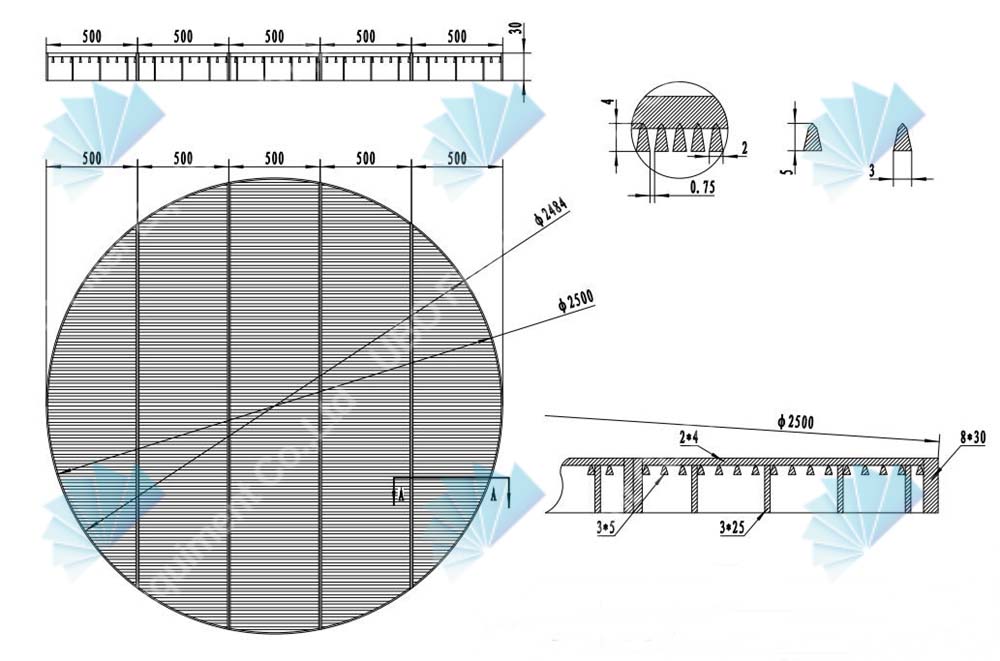

The specifications of the wedge ve wire fasel bottom lauter tun screen plate for beer brewry:

wedge ve wire fasel bottom lauter tun screen plate for beer brewry

Material:

stainless steel (304,316,316Letc.)

Wedge Wire (mm):

Width : 2

Height:4

Support Rod (mm):

Width : 3

Height : 5

Diameter:

37'',45'',47'',54'',59'',74'',900mm,1.2m,1.6m,1.899m etc

Bearing rod:

3*15,3*20,3*25

Frame

8*25,8*30

Slot size:

0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Note:

Other specifications can be customized according to your requirement



The Packaging and Transportation of the wedge ve wire fasel bottom lauter tun screen plate for beer brewry:

wedge ve wire fasel bottom lauter tun screen plate for beer brewry
