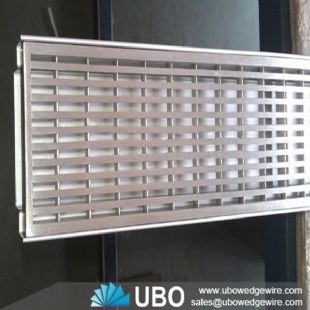

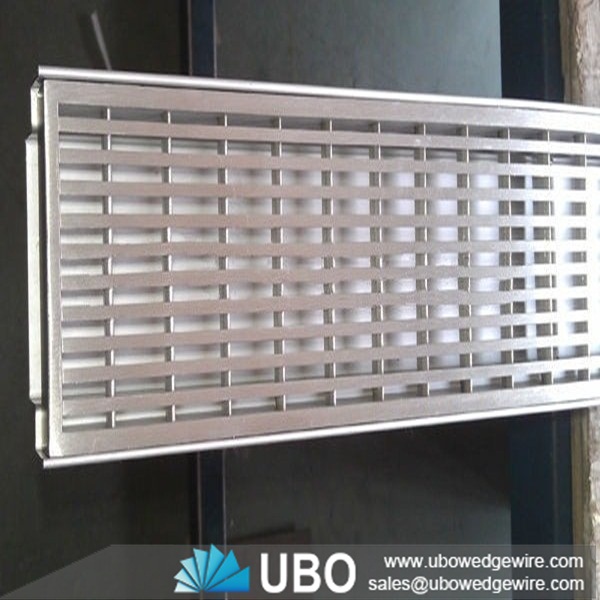

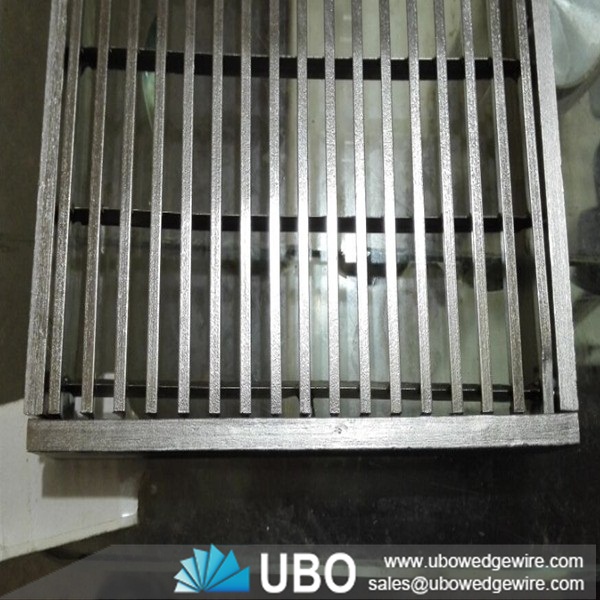

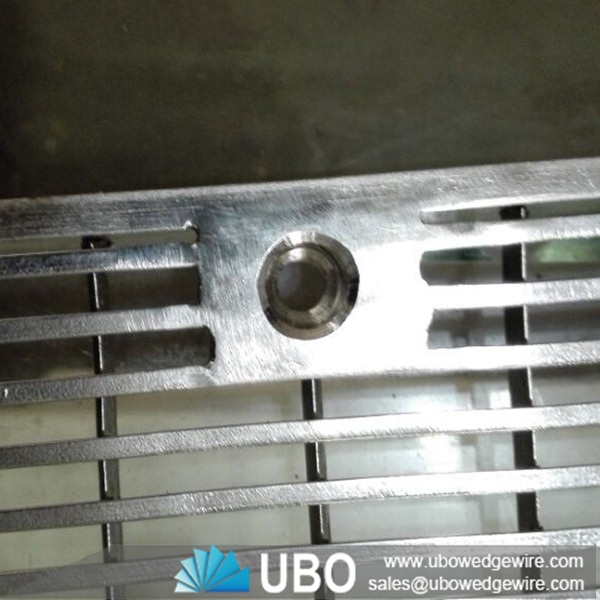

stainless steel wedge wire screen grating for drainages

More Views

stainless steel wedge wire screen grating for drainagesstainless steel wedge wire screen grating for drainagesstainless steel wedge wire screen grating for drainages

stainless steel wedge wire screen grating for drainages

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the stainless steel wedge wire screen grating for drainages

stainless steel wedge wire screen grating,Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface. The V-shaped opeings, designed to be nonclogging, are narrowest at the outer face and widen inwardly.

Stainless steel wedge wire screen grating provide more intake area per unit area of screen surface than any other type. For any given slot size, this type of screen has maximum open area.

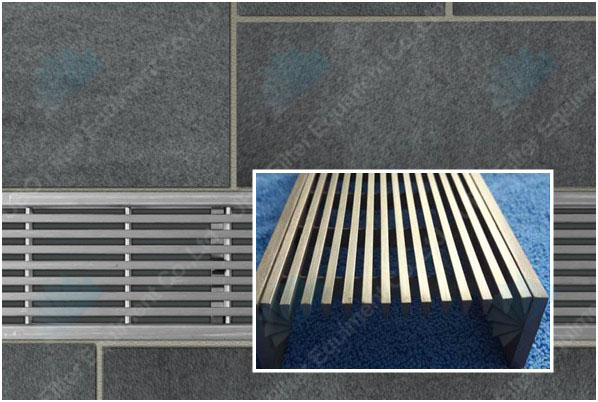

Application of stainless steel wedge wire screen grating for drainages

UBO have stainless steel wedge wire screen grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We can design and manufacture standard steel grating and in customized shapes per client's requirements.

Advantages of stainless steel wedge wire screen grating for drainages

When compared to conventional slotted pipe, wedge wire screen flat have superior open area due to their continuous slot openings. The benefits of which will :
•Reduce energy consumption and increase water flow.
•Reduce erosion of entry surfaces and increase well life.
•Allow a uniform and efficient well development.
•Reduce significantly potential pump damage and subsequent maintenance costs.

stainless steel <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> grating for drainages

The specifications of the stainless steel wedge wire screen grating for drainages:

Material low Carbon Galvanized (LCG), Stainless Steel(SS) and Galvanized Steel.
Slot (mm) 0.1、0.25、0.50、0.75、1.00、1.50、2.00、3.00 also achieved upon customer request.
Profile Wire  #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
Support Rod 1.V shaped. #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
Steel Flat Steel Flat: 1.5*20mm, 2.0*25mm, 2.5*30mm etc.
Frame Iron Frame, Steel Frame, or Nothing.

stainless steel <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> grating for drainages



The Packaging and Transportation of the stainless steel wedge wire screen grating for drainages:

transportation
