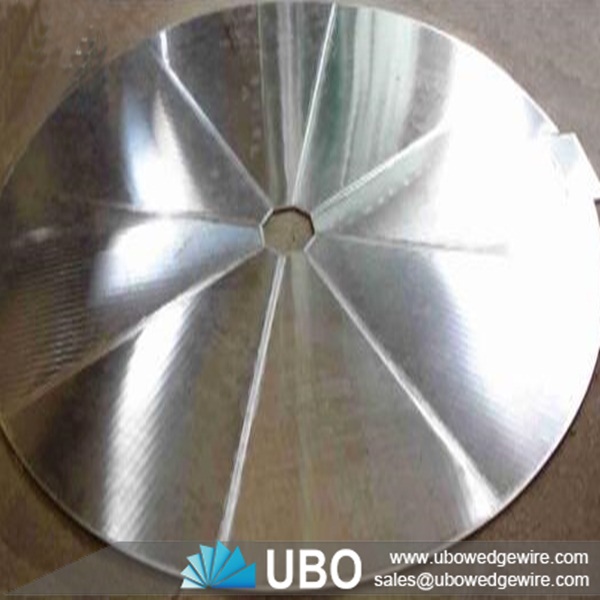

stainless steel screen support grids

More Views

stainless steel screen support grids

Category:Wedge Wire Screen Panel
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:Sand filters, False bottoms

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel screen support grids

The support grid is a flat screen that provides uniform flow collection which is essential in many applications. This is particularly important when screens are used to reserve expensive ion exchange resins. Support grids provide superior media retention characteristics in vessels of all types. They feature durable construction, precise open area, and are virtually non-clogging. For larger vessel diameters UBO support grids are fabricated in segments to allow installation through a vessel man-way.

Advantages of stainless steel screen support grids

A non plugging surface
Self supporting structure
Accurate separation
High open area
Durable

Applications of stainless steel screen support grids

Molecular sieve
Catalyst bed support
Ion exchange
Sand filters
False bottoms

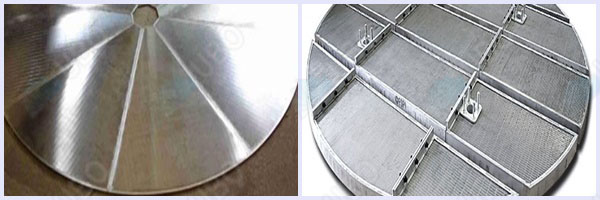

Arrangement & Installation of stainless steel screen support grids

A support grid could be made out of parallel or pie shaped segments, each segment just resting on the beams or bolted to or welded to the next one. The joining bars could be flush or project above the screening surface. Support structure can be included for additional strength.
The support grids can be attached to the supporting structure by bolts fixed to the grid or part of the vessel itself.

          stainless steel screen support grids

Specifications of stainless steel screen support grids:

screen support grids

material:stainless steel

out diamater:0.5-2m

inder diameter:20mm-70mm

thickness:10mm

slot:0.2mm

parts:16 fan wedge wire screen or as your request

Packaging and Transportation of stainless steel screen support grids:

Packaging Details:each product packed in a plastic bag and then in a wooden case
Delivery Detail: 15-30days after payment

packing
