stainless steel pool trench drain wedge wire floor grating

More Views

stainless steel pool trench drain wedge wire floor grating

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen Panel
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

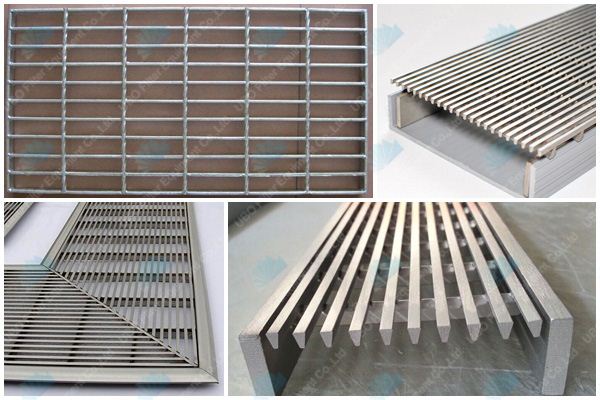

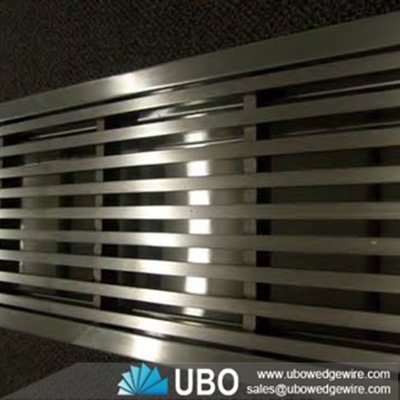

Detailed description of the stainless steel pool trench drain wedge wire floor grating

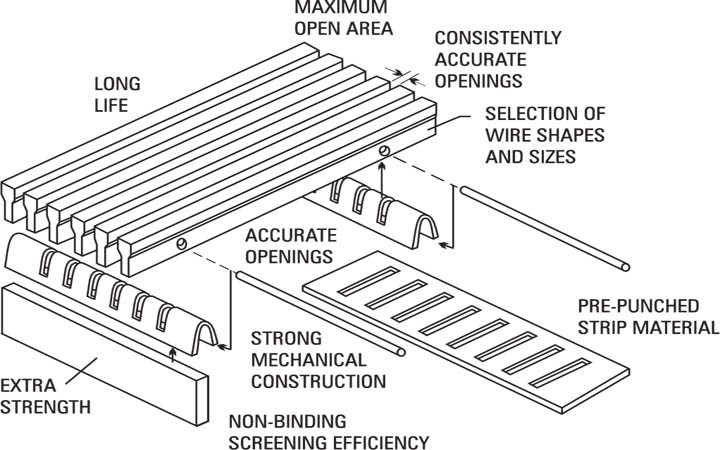

    Sainless steel wedge wire screen grating or surescreen is unique in nature as by design it reduces the possibility of clogging or blocking due to the inherent characteristics of the wedge shape of the wire and the surface area differential between the upper and lower sides of the wire.
     With high flow characteristics it is ideal for drainage and wash-down applications as it provides a substantial clear opening in ratio to the overall surface area of the grate.

Application for stainless steel pool trench drain wedge wire floor grating:

Trench drain system is designed for a variety of applications, both indoor and outdoors, commercial, industrial and hospital,the drain channels are easy to install, durable, resistant to many chemicals and solution for freeze, thaw applications, the flow rates equal to or greater than most larger poured-in-place trench drain grates.

Features for stainless steel pool trench drain wedge wire floor grating:

1. High flow capability, meet European standard En1253
2. Choice of grate covers, welded wedge wire grate or punched hole grate
3. A high weight capacity with a high passing ability and warping preventing
4. Streamlined appearance, unique, a cheerful new look
5.Compatible range of indoor drainage with a coordinated design
6. Easy to clean, the water along the channel bottom to outlet
7.Streamlined shiny metal appearance, give you an eclectic new look

stainless steel pool trench drain wedge wire floor grating

The specifications of the stainless steel pool trench drain wedge wire floor grating:

stainless steel pool trench drain wedge wire floor grating



Width(mm)
Height(mm)
Length(mm)
Code


50


20
800
W502008
1000
W502010
1200
W502012
1500
W502015
2400
W502124


60


20
800
W602008
1000
W602010
1200
W602012
1500
W602015
2400
W602014


70


20
800
W702008
1000
W702010
1200
W702012
1500
W702015
2400
W702024


85


20
1000
W852010
1200
W852012
1500
W852015
2400
W852024


95


20
1000
W952010
1200
W952012
1500
W952015
2400
W952024


100


25
1000
W1002510
1200
W1002510
1500
W1002515
2400
W1002524



110



30
1000
W1103010
1200
W1103012
1500
W1103015
2400
W1103024

The Packaging and Transportation of the stainless steel pool trench drain wedge wire floor grating:

stainless steel pool trench drain wedge wire floor grating
