Quality Wedge Wire Screen Manufacturer in China

Welded V-Wire flat screen panel

More Views

Welded V-Wire flat screen panelWelded V-Wire flat screen panelWelded V-Wire flat screen panel

Welded V-Wire flat screen panel

Category:Wedge Wire Screen Panel
Material:stainless steel
Properties:wedge wire screen
Application:water filtration,oil filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Welded V-Wire flat screen panel

Welded V-Wire flat screen panel have a high open area by comparison with woven wire screen media. Supplied in mainly flat forms or curved panel forms. High opening screen gives lower entrance velocities and higher flow rates through the screen. In the case of pump in-taking screens, pumping costs are lower.

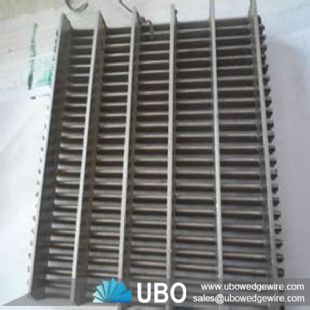

Welded V-Wire flat screen panel

Features of Welded V-Wire flat screen panel

Accurate slot gap, high efficiency performance, stable structure, anti-high temperature, anti-corrosive, good mechanical properties, long-lasting and durable, safe and reliable, various field can be applied.

Application of Welded V-Wire flat screen panel

Welded V-Wire flat screens are used for wide range of applications such as sizing, classification and de-watering in mining and other industries. These are used for coal & iron ore beneficiations when fitted on the vibratory machine.

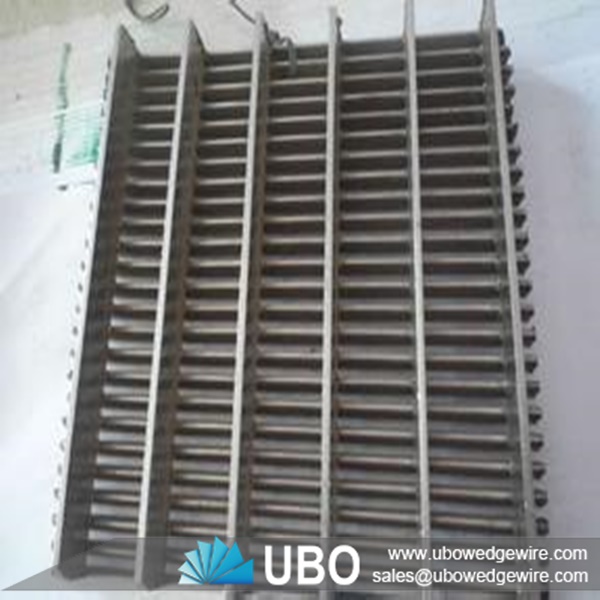

Welded V-Wire flat screen panel

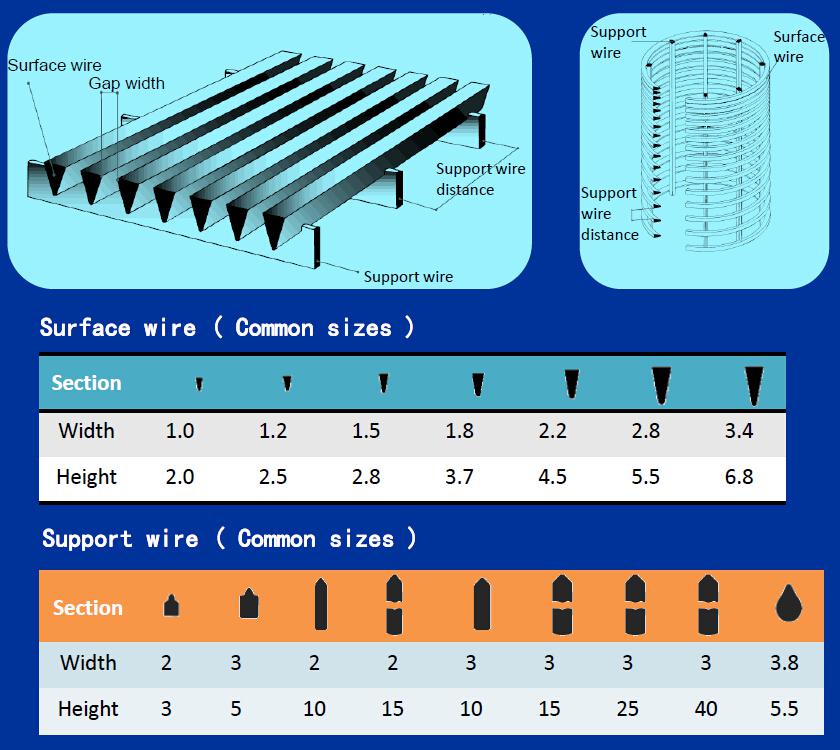

Specifications of Welded V-Wire flat screen panel:

Slot size (mm): 0.025mm 0.10, 0.15, 0.2, 0.25, 0.30-3mm
Open area: up to 60%
Material: low carbon, low carbon galvanized steel (LCG) steel , stainless steel (304 etc.) Lengths up to 6 meters
Diameter: ranging from 25 to 800mm
End connection: plain beveled ends for butt welding or threaded
Material: Low Carbon Galvanized ( LCG ) and Stainless Steel (SS)
Slot (mm): 0.025 0.1、0.25、0.50、0.75、1.00、1.50、2.00、3.00 and so on.

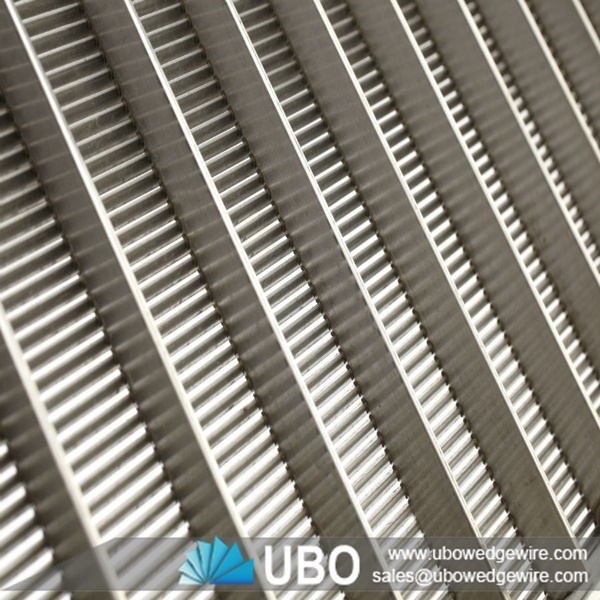

screen panel

Packaging and Transportation of Welded V-Wire flat screen panel:

transport
