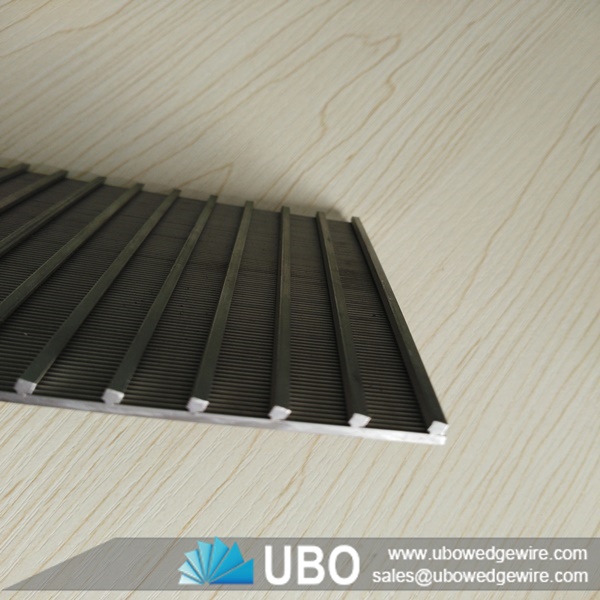

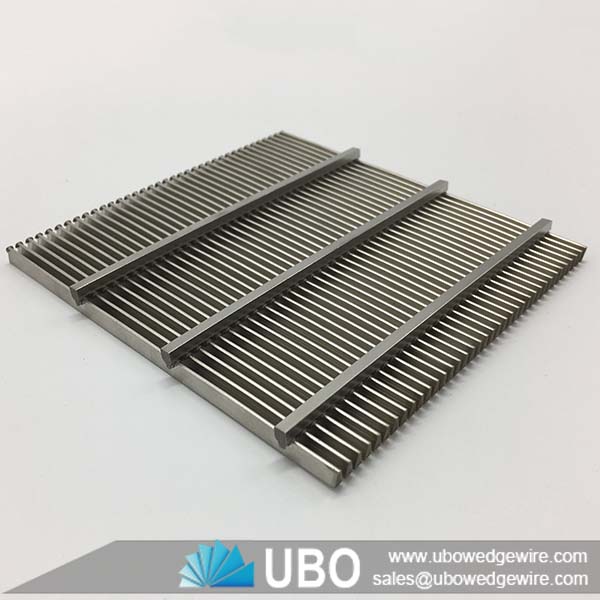

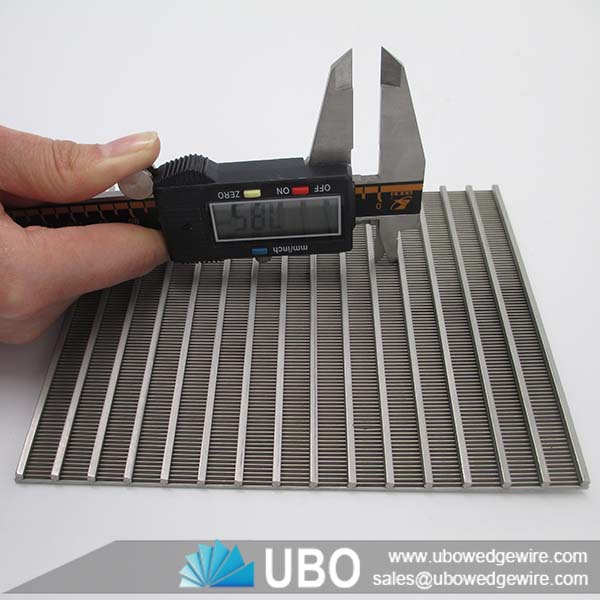

Stainless steel welded v wire sieve mesh filter screen panel

More Views

Stainless steel welded v wire sieve mesh filter screen panelStainless steel welded v wire sieve mesh filter screen panelStainless steel welded v wire sieve mesh filter screen panel

Stainless steel welded v wire sieve mesh filter screen panel

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless steel welded v wire sieve mesh filter screen panel

    Stainless steel welded v wire sieve mesh filter screen panels are used in a wide variety of processes across several industry sectors. We use state-of-the-art manufacturing techniques that place our products at the cutting edge of wedge wire screen construction.  Stainless steel welded v wire sieve mesh filter screen panel can be designed and manufactured according to customer specifications and come in a wide range of grades - from fine gap screens for small particle sizes to heavy duty screens for heavy load applications.

Stainless steel welded v wire sieve mesh filter screen panel

Characteristic of Stainless steel welded v wire sieve mesh filter screen panel

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles.

Usages of Stainless steel welded v wire sieve mesh filter screen panel

1.) Widely used in vairous kinds of medium filtering
2.) As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3.) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4.) The organic solution recycling filter

Stainless steel welded v wire sieve mesh filter screen panel



The specifications of the Stainless steel welded v wire sieve mesh filter screen panel:

Stainless steel welded v wire sieve mesh filter screen panel

Stainless steel welded v wire sieve mesh filter screen panel
Material:
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Diameter ranging
from 1 inch -----45 inch.
Length:
lengths up to 6 meters.
Slot size:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement





The Packaging and Transportation of the Stainless steel welded v wire sieve mesh filter screen panel:

Stainless steel welded v wire sieve mesh filter screen panel
