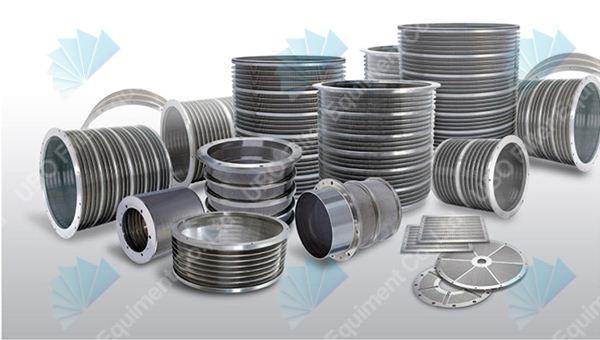

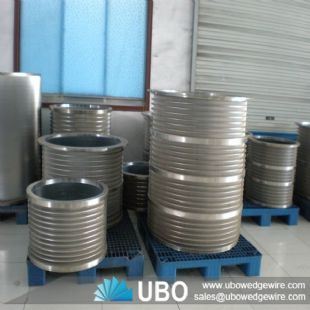

Stainless Steel Wedge Wire Screen Basket Cylinder

Stainless steel wedge wire screen basket cylinder for pulp and paper consist of V-shape profile wire and the longitudinal support rods.The V wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.So Water Well Screens has sturdy constriction and good mechanical property.

Features of Stainless Steel Wedge Wire Screen Basket Cylinder

1) Drum screen mesh is not easy to jam.

2) Smooth operation, low noise.

3) Simple structure, convenient maintenance.

4) Sieve tube can be closed, airtight dust easily.

5) The whole machine has high reliability, one-time investment is less.

6) Adopts special mesh, high screening efficiency, long service life.

Applications of Stainless Steel Wedge Wire Screen Basket Cylinder

Stainless steel wedge wire cylinders can be used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

Range of Screen Plate: 2000 x 6000 mm

Minimum Slot Width: 0

Range of Basket Diameter: <φ1600 mm

Range of Screen Plate: 2000 x 6000 mm

Minimum Slot Width: 0.10 mm

Min. Orifice Diameter: φ0.8 mm

Material: SUS316L, SUS316, SUS304/321

Wearing Layer Thickness: 0.2-0.5 mm

Basket Cylindrical Accuracy: 0.5 mm

Electric-chemical Polish: no fiber stringing.
