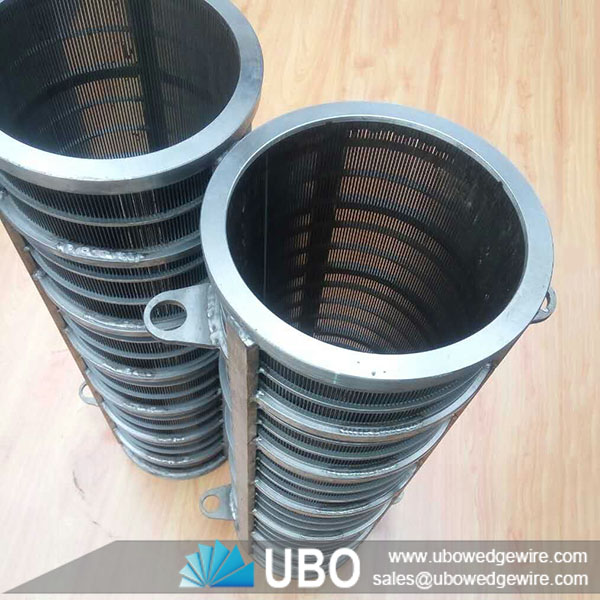

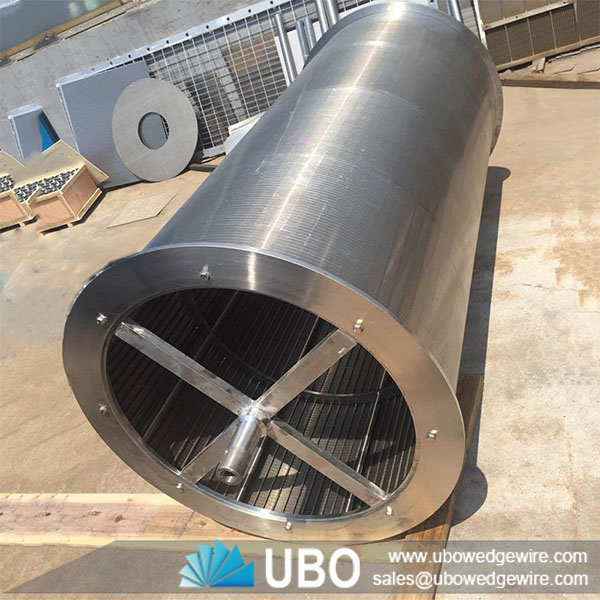

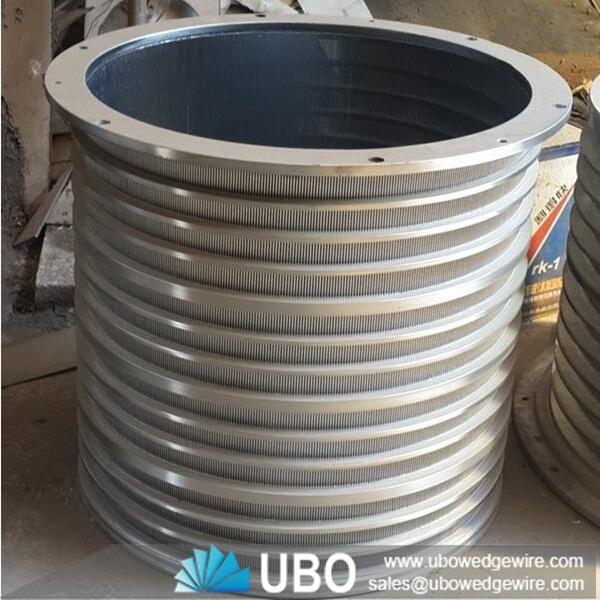

Wedge wrapped wire screen basket cylinder for solid -liquid separation

Category:Wedge Wire Screen Basket
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wie screen basket
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge wrapped wire screen basket cylinder for solid -liquid separation

Wedge wrapped wire screen basket cylinders are made in panel or cylinder type from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.

Wedge wrapped wire screen basket cylinder offer a perfectly cylinder and smooth surface with openings.This kind of wedge wire can replace traditional media like wire mesh cloth, perforated plate and other metal sifting materials as components for rotary screen, well screen, quarry screen.

Wedge wrapped wire screen basket cylinder for solid -liquid separation

Features of Wedge wrapped wire screen basket cylinder for solid -liquid separation

Self Supporting;
High Abrasion resistance;
Low pressure drop;
High resistance to Vibration.

Applications of Wedge wrapped wire screen basket cylinder for solid -liquid separation

Cylinder screen is used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

Wedge wrapped wire screen basket cylinder for solid -liquid separation

Wedge wrapped wire screen basket cylinder for solid -liquid separation



The specifications of the Wedge wrapped wire screen basket cylinder for solid -liquid separation:

Wedge wrapped wire screen basket cylinder for solid -liquid separation

Wedge Wire Screen Cylinders Basket

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Diameter ranging

from 1 inch -----45 inch.

Length:

lengths up to 6 meters.

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Flange:according to your request

The Packaging and Transportation of the Wedge wrapped wire screen basket cylinder for solid -liquid separation:

Wedge wrapped wire screen basket cylinder for solid -liquid separation
