wedge wire filter tube for filtration

More Views

wedge wire filter tube for filtrationwedge wire filter tube for filtrationwedge wire filter tube for filtration

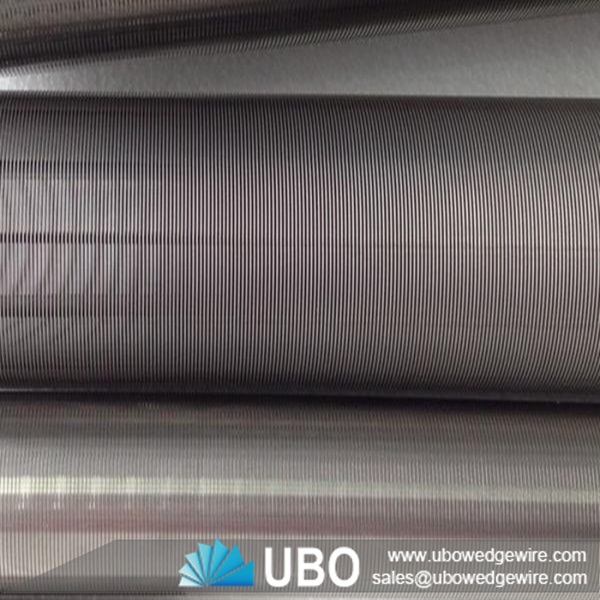

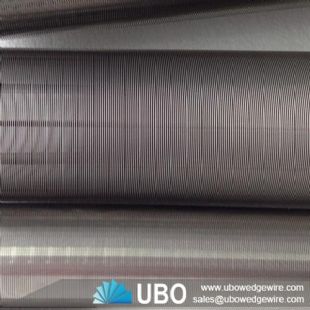

wedge wire filter tube for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the wedge wire filter tube for filtration

The wedge wire filter tube is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire.The warp is triangular wire (V-shaped wire). V-wire of wedge wire filter tube have a robust structure and large open area, as well as accurate slot dimension. At the same time, V -wire wedge wire filter tube have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

wedge wire filter tube for filtration

Features of wedge wire filter tube for filtration

1.Screens with large open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation
Screens with large open area shall favor groundwater filtration. Abundant water will reduce the water level’s down, thus to save energy consumption.
3.Under the same condition, large open area can make the speed of groundwater’s enter into the screen much slower than any other filtration apparatus,
which will avoid sand entering into screen because of high pressure, which reduce the abrasion of the pump.
4. Extending the service life of wells
Comparatively, groundwater’s entering into screen with larger open area is much easier than that entering into smaller open area screen.
The slow water flow will extend the service life of the wells.

Advantage of wedge wire filter tube for filtration

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

Application of wedge wire filter tube for filtration

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load.
Used for fiber removal in Starch industry.

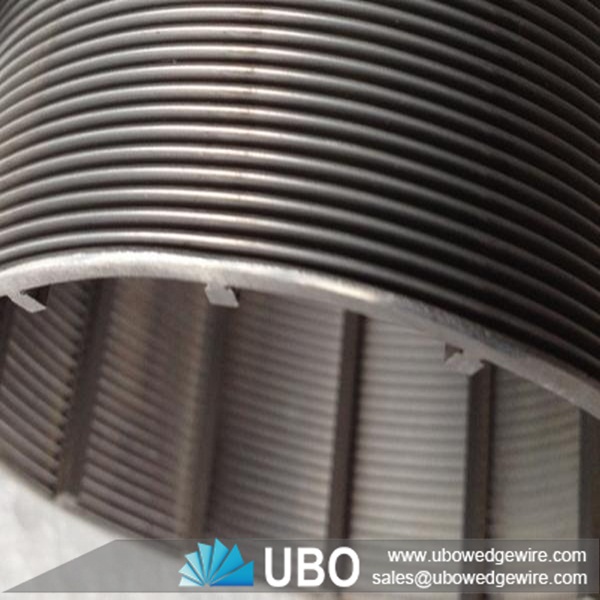

wedge wire filter tube for filtration

The specifications of the wedge wire filter tube for filtration:

wedge wire filter tube for filtration

Wire Size

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Support Rods

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other wires and rods available upon request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded

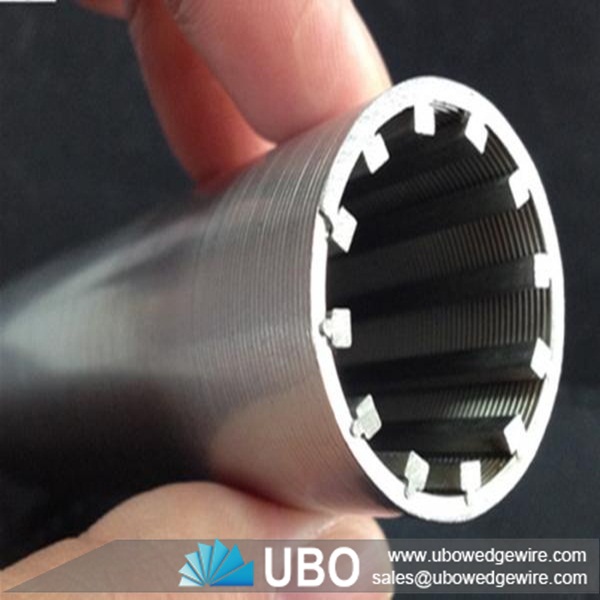

wedge wire filter tube for filtration

The Packaging and Transportation of the wedge wire filter tube for filtration:

transportation
