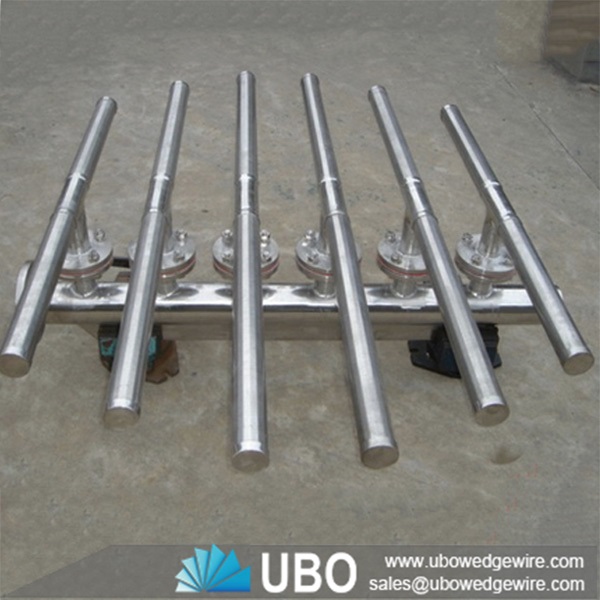

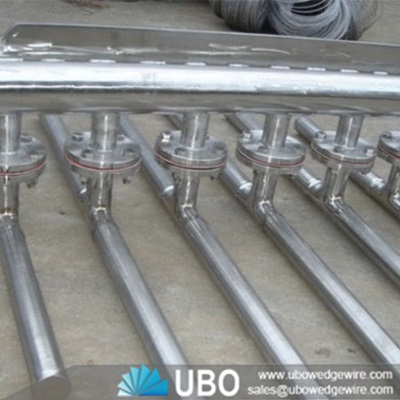

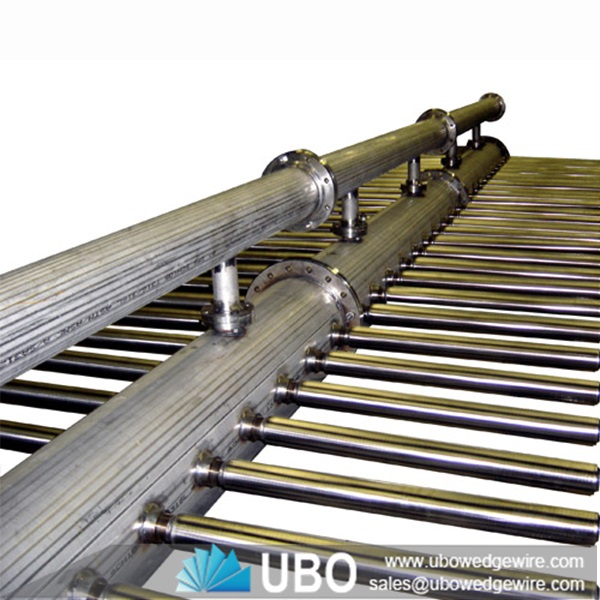

V Wire Screen Header Lateral for Filter Tank

More Views

V Wire Screen Header Lateral for Filter TankV Wire Screen Header Lateral for Filter TankV Wire Screen Header Lateral for Filter Tank

V Wire Screen Header Lateral for Filter Tank

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of V Wire Screen Header Lateral for Filter Tank

UBO has a patented advanced collector distributor system design that allows for fractal control of fluid flow in a media.

V wire screen header lateral in that the residence time for a path through the upper header lateral and collector header lateral is the same for each exit/entrance pair in the system. It allows for a better use of the media and an increase in overall process efficiency.

Providing for equal contact time with media and resonance time in the system, these fractal laterals have an exit flow variation as low as three percent for the entire assembly.

Applications of V Wire Screen Header Lateral for Filter Tank

Wedge wire type hub and header lateral consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Features of V Wire Screen Header Lateral for Filter Tank

1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2) Low cost operation.

3) Reduce the abrasion of the pump.

v wire screen header lateral for filter tank

Specifications of V Wire Screen Header Lateral for Filter Tank:

Type
Slots
ФA
ФB
L1
L2
L3
Pipe no
Flange1 DN
Flange2 DN
Length L
99,127,157,
199,224,254,
284,326,351,
538,508,607,
635,665,707,
792,834,861,
889,919,
1016,1046,
1088
AME
0.05
0.1
0.2
0.3
0.5
1
32
40
57
76
89
76
89
108
133
159
219
1100
1280
1500
1700
1800
2000
2500
3200
420
480
600
680
720
1100
1280
1500
1700
1800
6
8
10
12
25
32
40
50
65
80
50
65
80
100
125
150



v wire screen header lateral for filter tank



Packaging and Transportation of V Wire Screen Header Lateral for Filter Tank:

Package: in wood case
Delivery: 5-25 days.
