Details of reversed rolled continuous slot v wire water

Stainless steel wedge wire screens are made of SS V shaped and SS rod or  SS Convex shaped rod with the unique computer controlled machinery in which a continuous length of profile wire of a triangular section is fusion welded into support rods. This V shaped profile wire is wound around the support rods over the full length of the screen thus creating a continuous slot opening. The Cylinder Screen have a perfectly flat and smooth surface with rectangular openings, also named SS wedge wire screen, SS wedge profile wire screen Cylinder or SS wedge Cylindrical Screen .

Applications for reversed rolled continuous slot v wire water:

Wedge wire products are used for solid / liquid and solid / gas separation, sizing, dewatering and media retention in Oil & Gas wells, Water Wells, monitoring & soil sanitation, the (petro) chemical industry, food and process industry and architecture.

Advantages for reversed rolled continuous slot v wire water:

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.

A uniform and efficient well development due to the continuous slot opening.

Offering great strength. precision, long service life.

reversed rolled continuous slot v wire water

Specifications of reversed rolled continuous slot v wire water:

reversed rolled continuous slot v wire water

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

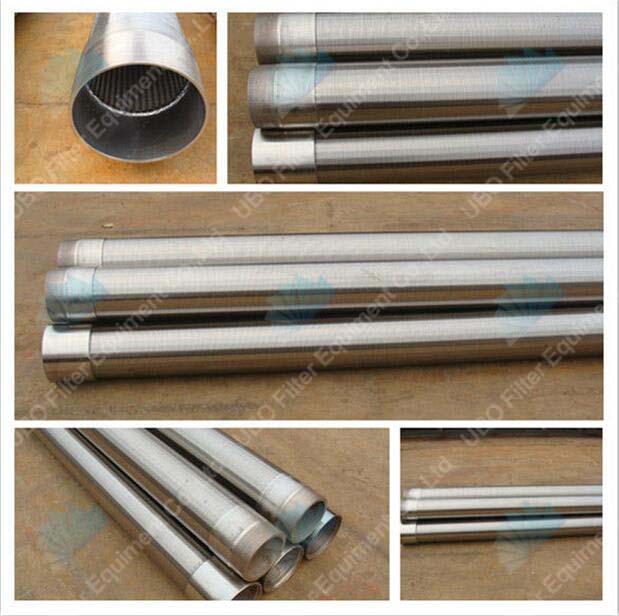

Packaging and Transportation of reversed rolled continuous slot v wire water:

reversed rolled continuous slot v wire water
