Wedge wire resin Refine header hub laterals
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen |
Application: | water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge wire resin Refine header hub laterals

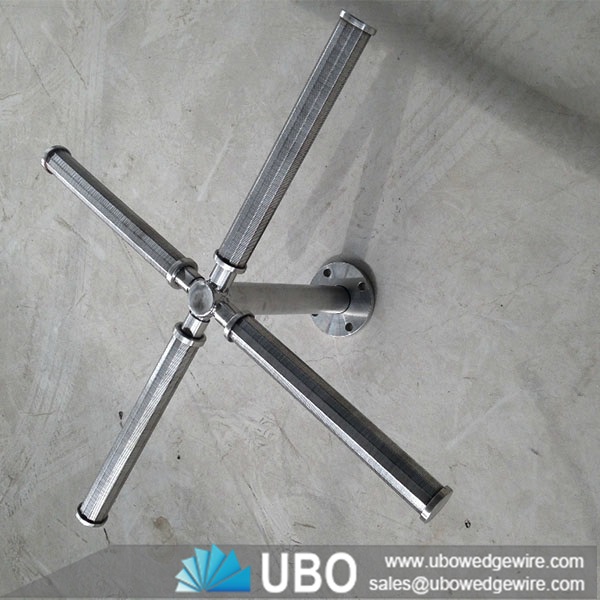

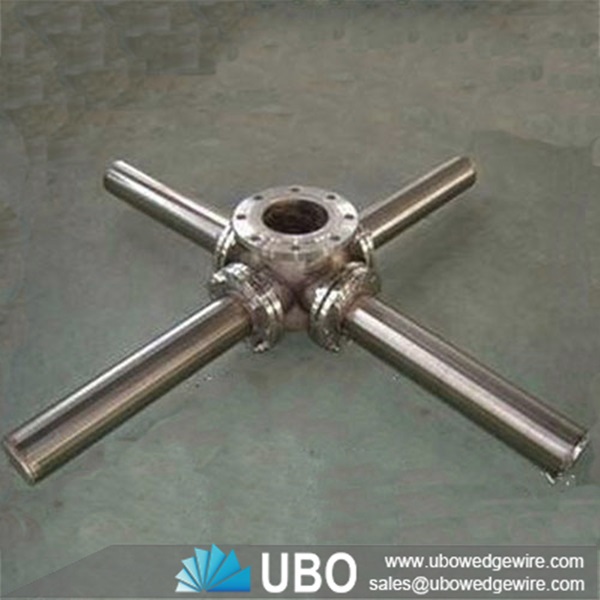

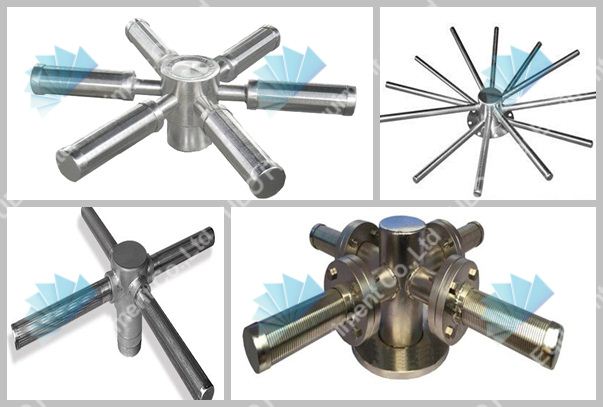

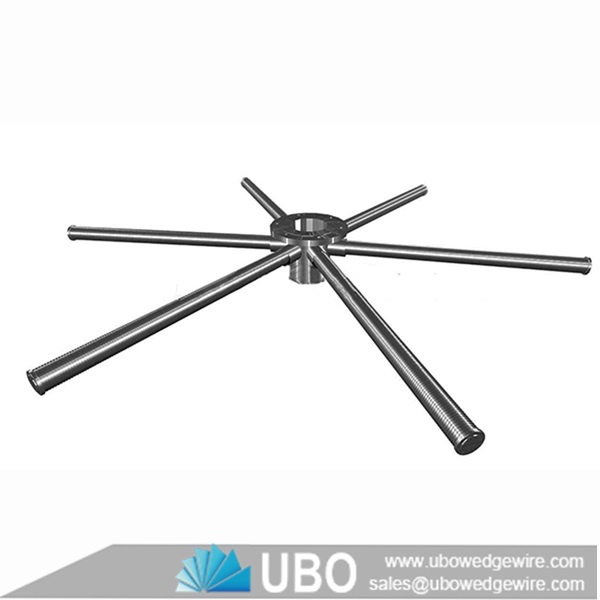

Wedge wire resin Refine header hub laterals are designed for vessels with elliptical heads.
They enable the system to collect completely to the bottom of the vessel. Header laterals are suited for flat bottom vessel distributor or collector applications. These systems can be designed to accommodate side, center, top or bottom inlet piping. Integral backwash systems can be designed for any hub or header lateral for a fast, effective and efficient cleaning of the screen. Laterals are usually connected to the hub or header with either flanges or threaded fittings. Systems are designed for effective liquid or solid retention in a wide range of applications including exchangers, clay or sand filtration, carbon towers and power plants with water systems. Our experienced engineering group designs each system to provide even distribution or collection across the entire cross-sectional area of the vessel.
Application of Wedge wire resin Refine header hub laterals
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Water Process & Fluid Treatment
Water/oil Well
Features of Wedge wire resin Refine header hub laterals
1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.
Specifications of Wedge wire resin Refine header hub laterals:
Length L1
|
Slot mm
|
AMD 4
|
AMD 6
|
AME 6
|
AMD 8
|
|
|
Ф=MM
|
|||
82
|
0.05
0.1
0.2
0.3
0.5
1
|
258
|
259
|
258
|
|
113
|
316
|
321
|
316
|
|
|
144
|
374
|
383
|
374
|
|
|
175
|
432
|
445
|
432
|
|
|
206
|
491
|
507
|
491
|
520
|
|
237
|
549
|
569
|
549
|
580
|
|
268
|
607
|
631
|
607
|
640
|
|
299
|
665
|
693
|
665
|
699
|
|
330
|
724
|
755
|
724
|
759
|
|
361
|
782
|
817
|
782
|
819
|
|
392
|
840
|
879
|
840
|
879
|
|
423
|
898
|
941
|
898
|
939
|
|
454
|
957
|
1003
|
957
|
999
|
|
485
|
1015
|
1065
|
1015
|
1059
|
|
516
|
1073
|
1127
|
1073
|
1119
|
|
547
|
1131
|
1189
|
1131
|
1179
|
|
578
|
1189
|
1251
|
1189
|
1239
|
|
609
|
1247
|
1313
|
1247
|
1299
|
|
640
|
|
|
|
1359
|
|
671
|
|
|
|
1419
|
|
702
|
|
|
|
1479
|
|
733
|
|
|
|
153
|
Packaging and Transportation of Wedge wire resin Refine header hub laterals:
