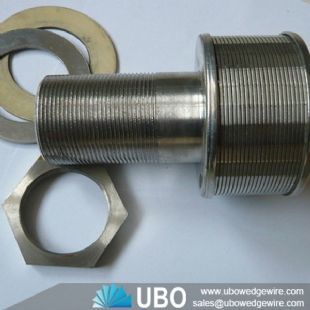

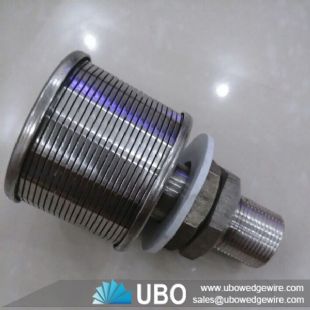

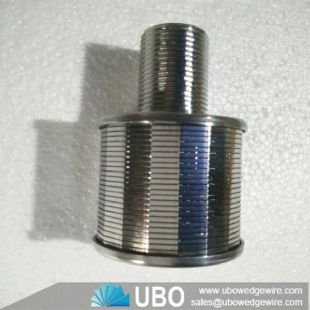

Wedge Wire Screen Water Screen Nozzle for FiltrationWedge Wire Screen Water Screen Nozzle for FiltrationWedge Wire Screen Water Screen Nozzle for Filtration

Wedge Wire Screen Water Screen Nozzle for Filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Water Screen Nozzle for Filtration

Wedge Wire Screen Water Screen Nozzles are made of Wedge Wire screen. The screen have v slot, Here is the Introduction of Wedge Wire screen and v shape filtering slot features.

Wedge Wire Screen Water Screen Nozzles  are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with an unique welding process. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. The pitch of winding gives different spacing between two adjacent turns of wire.

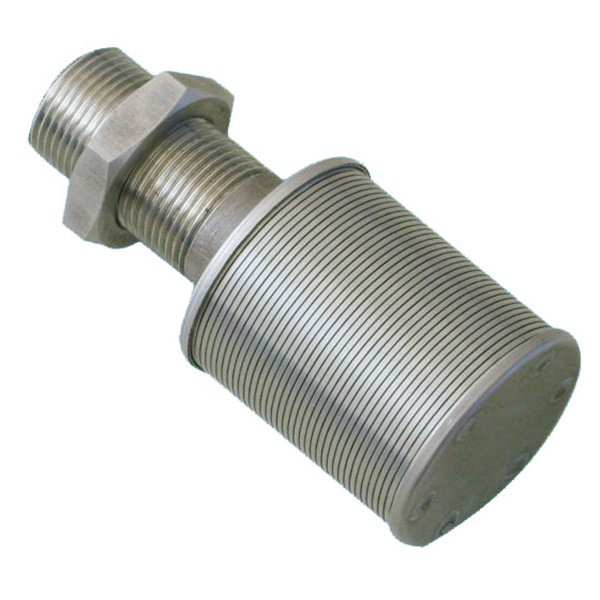

Wedge Wire Screen Water Screen Nozzle for Filtration

Application of Wedge Wire Screen Water Screen Nozzle for Filtration

The stainless steel water nozzle can be used as collectors at the bottom of the vessels by installing a number of strainers uniformly across a tray plate.The combination of high open area and a non-plugging slot design makes this nozzle /collector application pupilar.

Advantages of Wedge Wire Screen Water Screen Nozzle for Filtration

1) type 316L stainless steel construction.

2) Continuous slot design provide large circulation area

3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.

4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

5) Wedge wire screen is highly resistant to plugging.

6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.



Wedge Wire Screen Water Screen Nozzle for Filtration

Specifications of Wedge Wire Screen Water Screen Nozzle for Filtration:

Material:stainless steel

Type:filter nozzle

Connector:3/4'' NPT

OD (mm)
Material
Profile wire size
Support rod size
Support rod no.
Filtering Slot size
37
SS304/316L
10S/12S/18S
Q22/Q25
8
0.025~3.00mm
40
SS304/316L
10S/12S/18S
Q22/Q25
10
0.025~3.00mm
42
SS304/316L
10S/12S/18S
Q22/Q25
10
0.025~3.00mm
45
SS304/316L
10S/12S/18S
Q22/Q25
12
0.025~3.00mm
48
SS304/316L
10S/12S/18S
Q22/Q25
12
0.025~3.00mm
60
SS304/316L
10S/12S/18S
Q22/Q25
12
0.025~3.00mm
64
SS304/316L
10S/12S/18S
Q22/Q25
18
0.025~3.00mm
70
SS304/316L
10S/12S/18S
Q22/Q25
18
0.025~3.00mm
76
SS304/316L
10S/12S/18S
Q22/Q25
18
0.025~3.00mm
85
SS304/316L
10S/12S/18S
Q22/Q25
18
0.025~3.00mm
100
SS304/316L
10S/12S/18S
Q22/Q25
24
0.025~3.00mm


Wedge Wire Screen Water Screen Nozzle for Filtration

Packaging and Transportation of Wedge Wire Screen Water Screen Nozzle for Filtration:

Package: in wood case

Delivery Time: 5-25 days
