Vibrating Screen Panel for Filtration

More Views

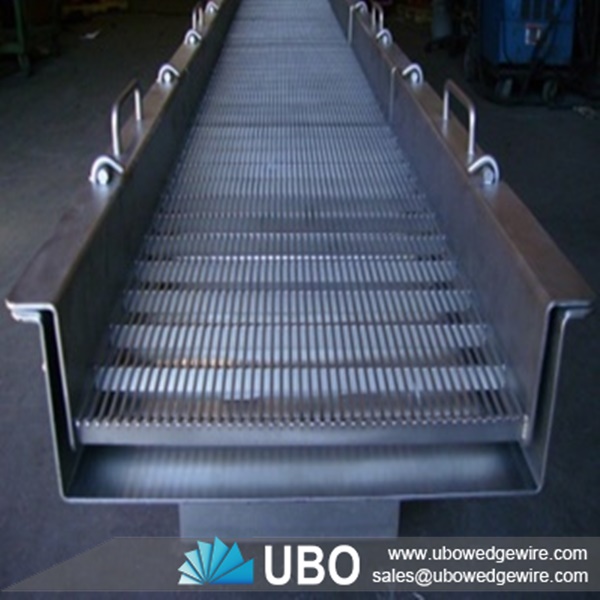

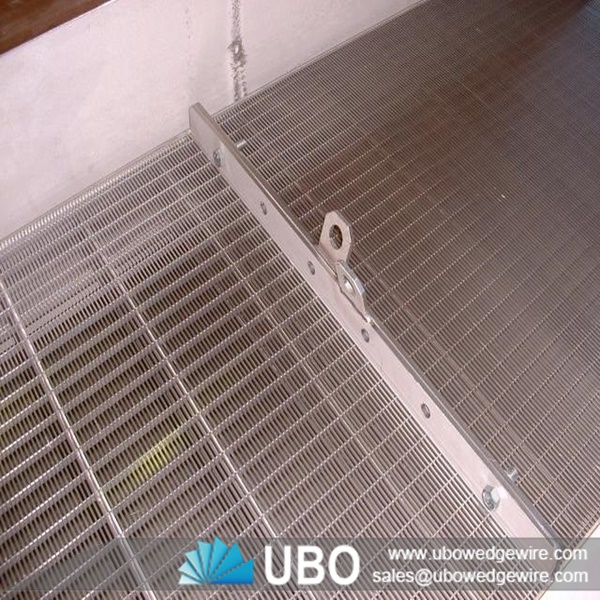

Vibrating Screen Panel for FiltrationVibrating Screen Panel for FiltrationVibrating Screen Panel for Filtration

Vibrating Screen Panel for Filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Vibrating Screen Panel for Filtration

The vibrating screen consists of screen box, supporting device, vibration exciter, transmission part, etc. The barrel-type vibration exciter is installed in the middle part of the machine. During normal operation, the vibartion of exciter will drive the screen mesh fixed on the screen box vibrate, and then materials will be screened. The big and small materials fall from the upper side and lower side of the screen to get them separated.

Features of Vibrating Screen Panel for Filtration

The vibrating screen features long flowing line, many screening specifications, strong violent vibration force, high screening efficiency, small vibrating noises, firm and durable construction, convenient maintenance and safe operation.

Operating Principle of Vibrating Screen Panel for Filtration

The vibrating screen adjusts the amplitude by tube-shaped violent vibration screen of eccentric shaft and eccentric blocks. The body moves like a circle, in order to make the materials screened.

Application of Vibrating Screen Panel for Filtration

The vibrating screen is a kind of sieving equipment of international advanced level, developed by our company on the basis of carrying on the advantages of traditional screens and absorbing the outstanding technology from abroad. It is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on.

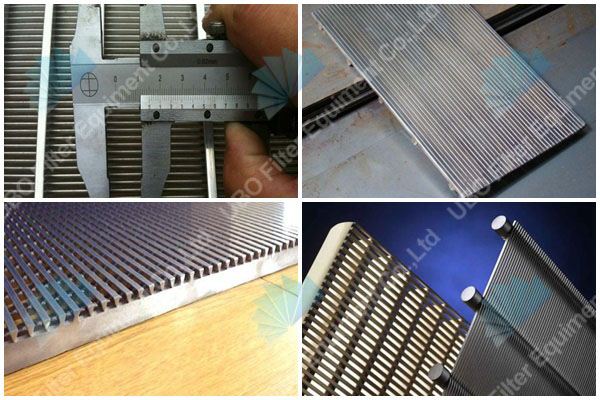

Vibrating Screen Panel for Filtration

Specifications of Vibrating Screen Panel for Filtration:

Vibrating Screen Panel for Filtration



Vibrating Screen Panel for Filtration

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Width:

from 1 inch -----45 inch.

Length:

Max 6 meters.

Slot size

Slot size

Other

we can produce according to your special requirement
