Stainless Steel Resin Trap Strainer Media for Water Treatment
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | Resin Traps |
Application: | water treatment processes namely in ”Ion Exchange” and other numerous media filter systems, Completion Products offers a Resin Trap Screen |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

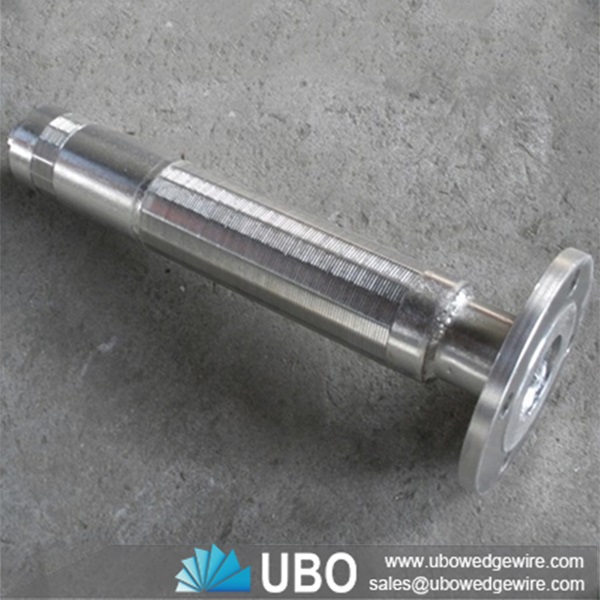

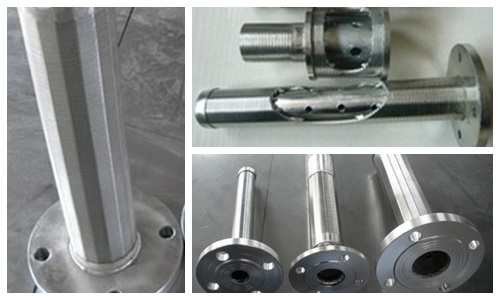

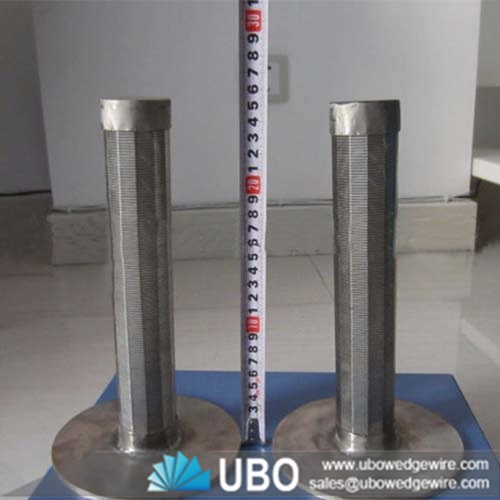

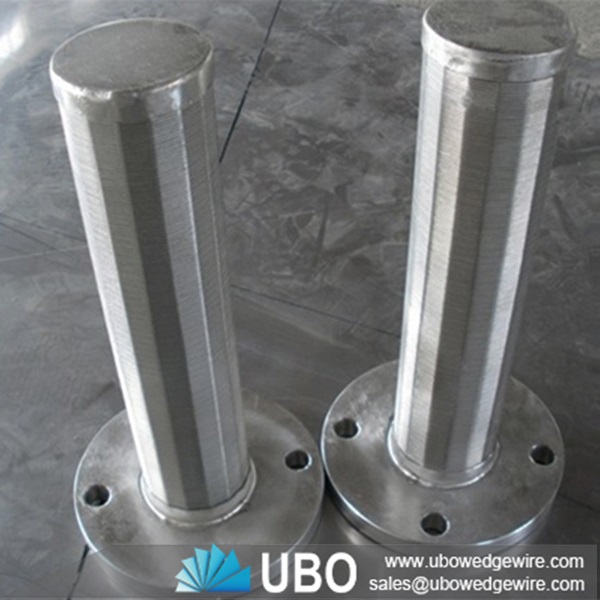

Details of Stainless Steel Resin Trap Strainer Media for Water Treatment
A Resin Trap / Strainer is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.
Usage for Stainless Steel Resin Trap Strainer Media for Water Treatment:
Resin Trap Screen Predominantly used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.
Principle for Stainless Steel Resin Trap Strainer Media for Water Treatment:
A Resin Trap / Strainer normally serves to retain particles in a process flow. The quantity of particles is normally very low,so that cleaning can be done during flow interruption.
In Hot Selling All The World :
Malaysia ; Singapore ; Philippines ; Vietnam; India ; Turkey ; Kuwait;Poland ; Holland ; Bulgaria ; Macedonia ;The USA ; Australian ; Brazil ; Romanian ;Saudi Arabia ; Iran ; Thailand ; Pakistan ; South Africa;
Specifications of Stainless Steel Resin Trap Strainer Media for Water Treatment:
Type
|
Slots mm
|
ΦA
|
Flange DN
|
L1mm
|
AM1
|
0.05, 0.1, 0.2 0.3, 0.5, 1.0
|
45,57,76,89,108,
133, 159, 219
|
40,50,65,80,
100,125,150,
200
|
442,496,547,
600,654,705,
758,812,863,
916,970,1021,
1074,1128,1179,
1232, 1286
|
